PVC Garden Hose Making Machine Screw Design 30 1 L/D Ratio PVC Fiber Reinforced Soft Hose Production Line For And Output
https://youtu.be/IGl-LjZ48-0
https://youtu.be/PhHpVOdyuJU
https://youtu.be/Lzil-ClzO7M
https://youtu.be/RpTWkmmmHtY
https://youtu.be/gmOzXjVC4Mc
https://youtu.be/RZyYAinMquQ
What is the feature of PVC Garden Hose Extruder Machine
1. High efficiency singel screw extruder
2. It can produce PVC garden hose or pvc soft hose
3. The thickness is from 2mm to 6mm, diameter is from 10mm to 50mm
4. This pvc hose is mostly used as home, garden,farm, lawn and so on.
Flow Progress
Material mix inner --layer extrusion inner-- layer forming→ spray cooling→ haul off→ fibre winding→ oven dryness→ outer layer extrusion→ outer layer forming→ spray cooling→ haul-off→ printer→ winder
Technical Parameters
| Model |
L/D Ratio |
Screw |
Material |
Screw diameter |
Output |
Total Power |
Production Scale |
| SJ45/30 |
30:1 |
Separative style |
38crmnal |
45mm |
60kg/hr |
35kw |
Φ6-16mm |
| SJ65/30 |
30:1 |
Separative style |
38crmnal |
65mm |
120kg/hr |
50kw |
Φ16-50mm
|
Main Composition of PVC Garden Hose Extruder Machine
| Item |
Quantity |
| SJ65/30 Single Screw Extruder |
Two sets |
| Die and Mold |
One set |
| TSG-B Stainless steel cooling tank |
Two sets |
| TSG-A Kinking Machine |
One set |
| Traction Engine |
Two set |
| Winder |
One set |
Machine Pictures

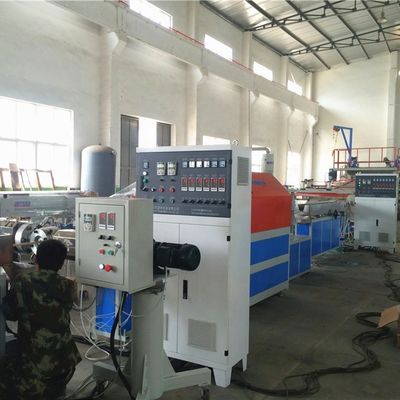

1.SJ-65/30 Single Screw Extruder
2.Die and Mould
3.Cooling Tank

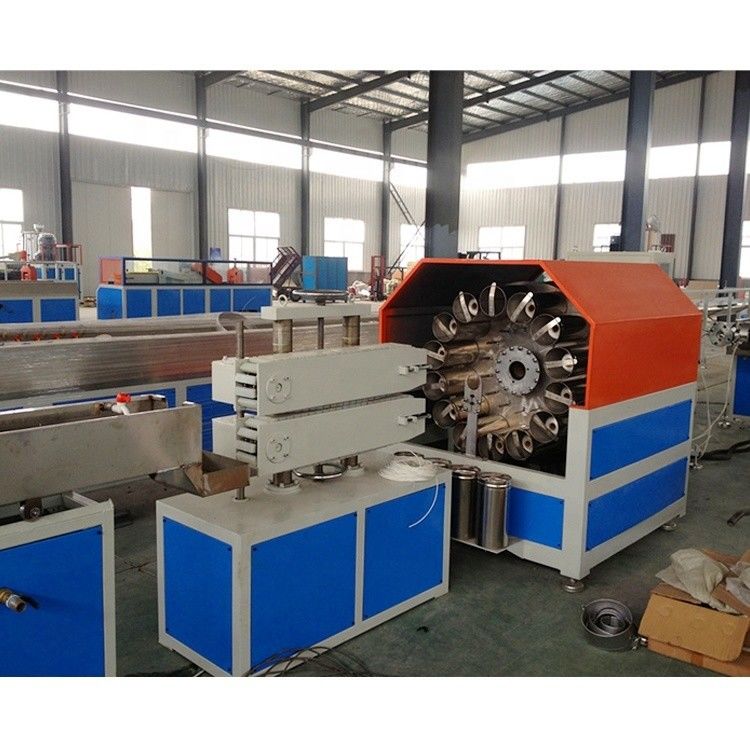

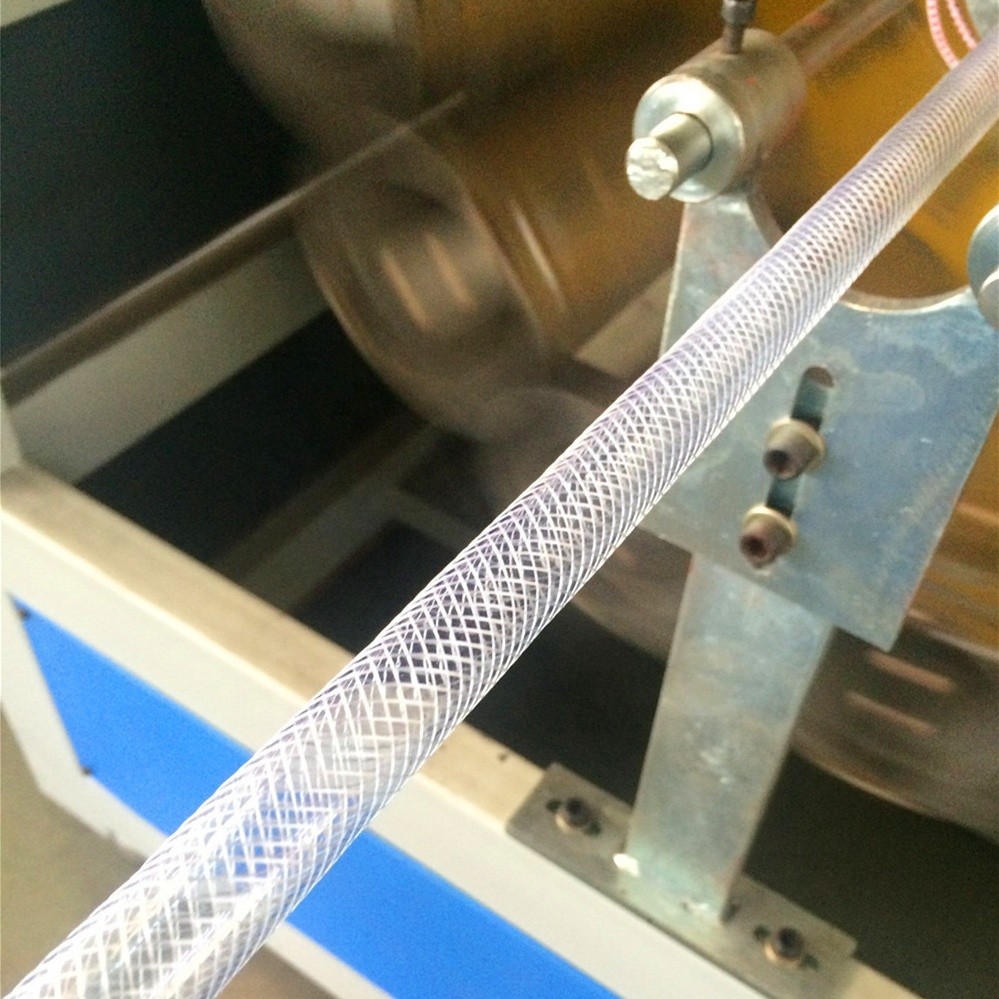

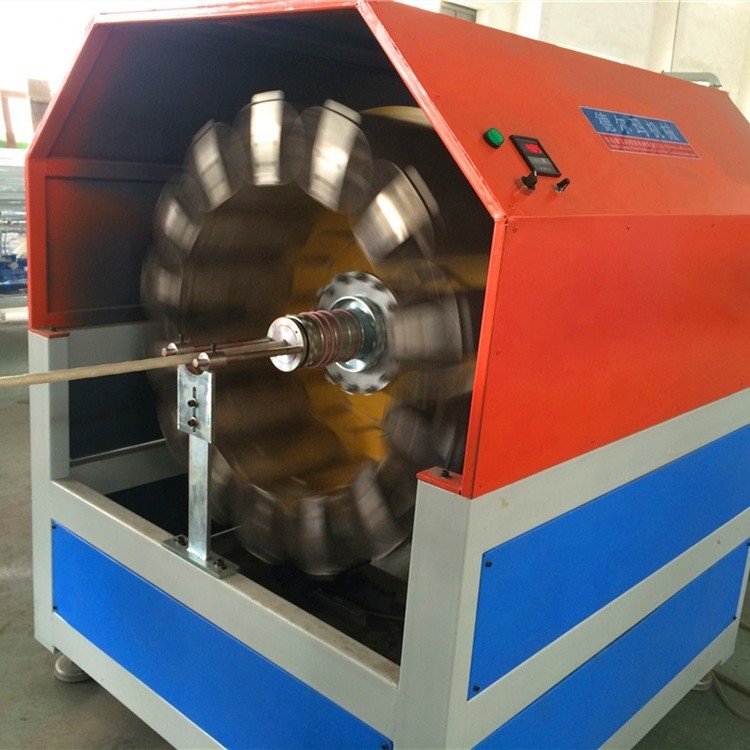

4.Fiber Kinking Machine
5.Haul-off Device
Certifications
|
Certification
|
Certified By
|
Certificate No.
|
|
ISO 9001:2008
|
Beijing Hangxie Certification Center Co., Ltd.,
CNAS
|
03413Q21640R1M
|
|
CE
|
EuropeanInspection and Certification Company S.A.
|
CN.CE.0680-10/10
|
|
TUV
|
TÜV Rheinland
|
7467484_P+T
|
|
Main Product Lines Verification Report
|
TÜV Rheinland
|
7467487_P+T
|
|
SGS
|
SGS-CSTC Standards Technical Services Co.,Ltd
Focus Technology Co., Ltd
|
QIP-ASR155278
|
Company review
After-Sales Service
1.Our company will provide relevant information on various technology and business consulted by customers. If clients want to visit our company, we will offer all they need for convenience.
2.After signing contract, company designs groundsill installation chart for water, electricity and gas of equipment basing on real condition and customers’ requirements and provides detail order list and matching manufacturer for reference for customer.
3.After equipment arrival, our service personnel will arrive at posted locale for installation, debugging, training and technology transfer till customers can operate independently and manufactures eligible product. Service personnel have to arrive at customer’s locale in time when we provide service for client again.
FAQ
Q: Your company is an industrial manufacture factory or a transactional company ?
A: Deerma Company is an industry manufacture of Extrusion Machines.
Q:All of your products are made by your self or compacted via purchasing the others?
A: we have independent technical team who focus on design & development & Manufacture extrusion machines. all the products are made by our technical team.
Q:Annual Production Capacity( Previous Year)
A: About 80 lines from 2014.1 to 2014.12 and total revenue is about USD 2500000
Q: Quality Control Management
Q: Is there quality control on all production lines?
Yes, all production lines have adequate quality control
Q:Do the QA/QC inspectors work independently from the production line? Yes
Q:How many QA/QC inspectors in total? 4
We have three this production lines in our showroom for other customer , welcome to visit our factory
