Detail Information

Name:	PVC Foam Board Machine	Plastic Processed:	PVC
Application:	Plates	Screw Design:	Double-screw
Twin Screw Type:	Counter-rotating Conical Twin-screw	Screw Material:	38CrMoALA
Screw Diameter (mm):	80	Screw L/d Ratio:	28:1
Screw Speed (rpm):	45 Rpm	Place Of Origin:	Shandong, China
Brand Name:	Deerma	Voltage:	380V/3P/50HZ
Dimension(lwh):	25253m	Power (kw):	160
Warranty:	1 Year	Key Selling Points:	Multifunctional
Video Outgoing-inspection:	Provided	Core Components:	Bearing, Motor, Pump, Gear, PLC, Engine, Gearbox, Screw
Machinery Test Report:	Provided	Plastic Processed:	PVC Resin
Product Thickness:	10-25mm	Product Width:	1220-2050mm
Output:	200-500kg/h	Machine Control:	PLC
Guarantee Time:	12months	Power:	Motor Power-75kw
Orginal Place:	Qingdao	Usage:	Door
Marketing Type:	Ordinary Product	Condition:	New
Showroom Location:	Turkey, Germany, Indonesia, Thailand, UAE, South Africa, Tajikistan	Applicable Industries:	Building Material Shops, Machinery Repair Shops, Construction Works
Warranty Of Core Components:	1 Year	Weight:	13 KG
Port:	Qingdao
Highlight:	160kw PVC Foam Board Machine , PVC Foam Board Machine 200kg/h , 500kg/h Foam Sheet Making Machine

Product Description

High Capacity PVC Hard Surface Foam Sheet Making Machine Featuring 38CrMoALA Screw Material And 28 1 Screw L/D Ratio

Production Description

High efficiency conical twin screw extruder.
It can produce rigid pvc wpc crust/skinning foam board machine.
The thickness is from 3mm to 45mm, width is from 1220mm to 2050mm.
This sheet is mostly used in transportation , advertisement,construction furniture industry ect.

Production Line

Main Composition of PVC Hard Surface Foam Sheet Making Machine

Item	Quantity
SJSZ80/156 conical twin screw extruder	one set
Electric cabinet	one set
Nose and die mold	one set
Forming machine	one set
Water chiller	one set
Cooling bracket	one set
Tractor machine	one set
Longitudinal cutter	one set
Dust vacuuming device	one set
Traverse cutter	one set
Automatic discharge	one set
Other auxiliary tools and parts	one set

1.SJSZ80/156 Conical Twin Screw Extruder

2.Electric Cabinet

160kw PVC Foam Board Machine 200kg/h - 500kg/h Foam Sheet Making Machine 2

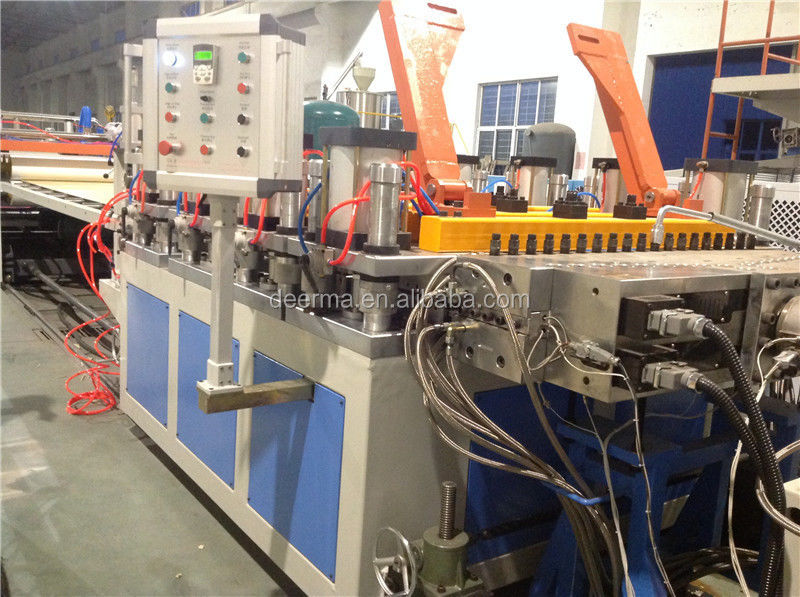

3.Die Mold

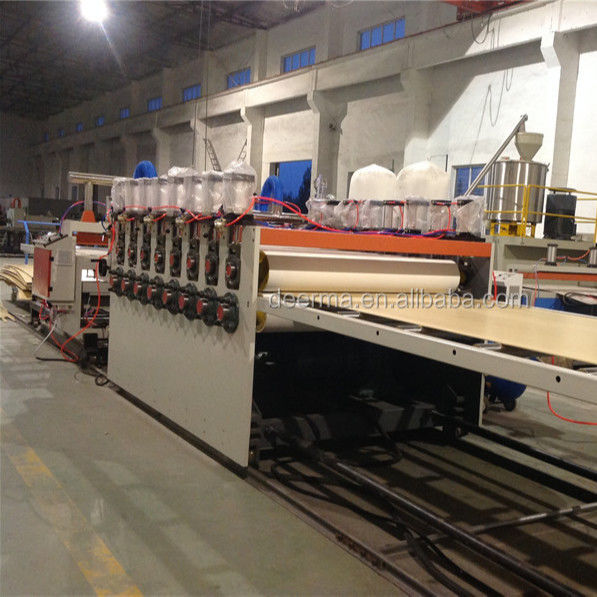

4.5.Forming machine with water chiller

6.Cooling bracket

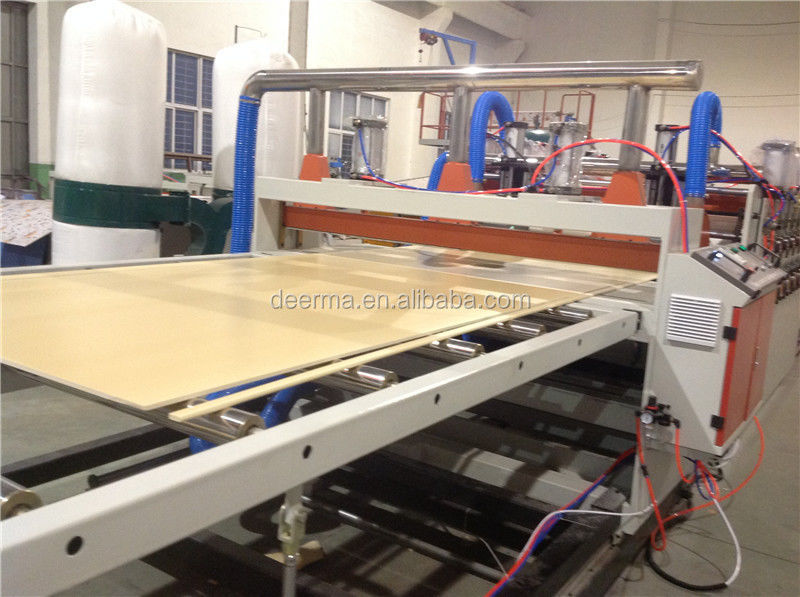

7.8.Tractor machine with Longitudinal cutter

9.Traverse cutter

160kw PVC Foam Board Machine 200kg/h - 500kg/h Foam Sheet Making Machine 7

Application

These pvc foam board is mostly used in transportation , advertisement, funiture industry and so on.
Products characteristics
1) Water proof, anti-flaming, damp proof, rot proof, mothproof, light weight, keep temperature, sound and heat insulation and shock proof etc.
2) Color-way is not changed long time and not easy to aging under radiation resistance;
3) This product can be manufactured by general wood processing tools; It can be drilled, sawed, nailed and dig It is the same as wood manufacture processing, even better than wood. It is the best substitute to wood, aluminum and composite product.
4) It can be welded as per general welding stipulation and also stick to other PVC materials;
5) Smooth surface and easy to print.

160kw PVC Foam Board Machine 200kg/h - 500kg/h Foam Sheet Making Machine 8

Certification

After Services

1.Our company will provide relevant information on various technology and business consulted by customers. If clients want to visit our company, we will offer all they need for convenience.

2.After signing contract, company designs groundsill installation chart for water, electricity and gas of equipment basing on real condition and customers’ requirements and provides detail order list and matching manufacturer for reference for customer.

3.After equipment arrival, our service personnel will arrive at posted locale for installation, debugging, training and technology transfer till customers can operate independently and manufactures eligible product. Service personnel have to arrive at customer’s locale in time when we provide service for client again.

Our Company

Tag:

Price:	CN¥901,875.00/sets 1-3 sets
Packaging Details:	wooden case worthy for packing PVC hard surface foam sheet making machine
Supply Ability:	5 Set/Sets per Month PVC hard surface foam sheet making machine
