Detail Information

Na Me:	PVC Mixing Machine	Mixer Type:	Agitator
Barrel Volume (l):	300 / 600	Material Processed:	Plastics, Chemicals
Range Of Spindle Speed(r.p.m):	475 - 950 R.p.m	Weight (kg):	3600 KG
Material:	SUS304	Product Type:	Detergent Powder
Additional Capabilities:	Mixer	Place Of Origin:	China
Brand Name:	DEERMA	Voltage:	220V/380V
Dimension(lwh):	Referring	Power (kW):	45 KW
Warranty:	1 Year	Key Selling Points:	Long Service Life
Machinery Test Report:	Not Available	Video Outgoing-inspection:	Provided
Core Components:	Motor	Model:	SRL-Z300/600
Total Capacity(L):	300/600	Effective Capacity(L):	225/450
Motor Power(kw):	40/55/11	Spindle Speed(rpm):	475/950/130
Heating Method:	Electric Heating	Voltage:	380V
Application Scope:	Industrical Chemical Mixing	Condition:	New
Application:	Mixer	Applicable Industries:	Manufacturing Plant, Construction Works
Showroom Location:	None	Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year	Max. Loading Volume (L):	600 L
Max. Loading Capacity:	600	Port:	Qingdao
Highlight:	300L PVC Mixing Machine , 600L PVC Mixing Machine , 380V High Speed PVC Mixer

Product Description

300/600L Total Capacity PVC PP PE Mixer/mixing Machine Professional and Industrial 220V/380V Voltage

Mixer Machine

1.Widely used in mixing, drying, coloring for all kinds of resin such as PVC, PP, PE, ABS, PC, etc.

2.Composed of one high speed hot mixer and one cooling mixer.

3.The temperature will rise rapidly to meet the requirements of the material mixing process in the hot mixer.

4.The materials from hot mixer will be loaded into the cooling mixer automatically.

5.The materials will be cool down quickly to meet the production process requirement by low-speed mixing blade movement and heat exchange with the water cooling system in the cooling mixer.

SRL-Z	Heat/Cool	Heat/Cool	Heat/Cool	Heat/Cool	Heat/Cool
Total Volume(L)	100/200	200/500	300/600	500/1000	800/1600
Valid Volume(L)	65/130	150/320	225/380	375/650	600/1050
Stirring Speed(Rpm)	650/1300/200	475/950/130	475/950/100	430/860/60	370/740/50
Mixing Time(M)	8-12	8-12	8-12	8-12	8-12
Motor Power(Kw)	14/22/7.5	30/42/11	40/55/11	55/75/15	83/110/22
Output(kg/pot)	50	90	120	180	300

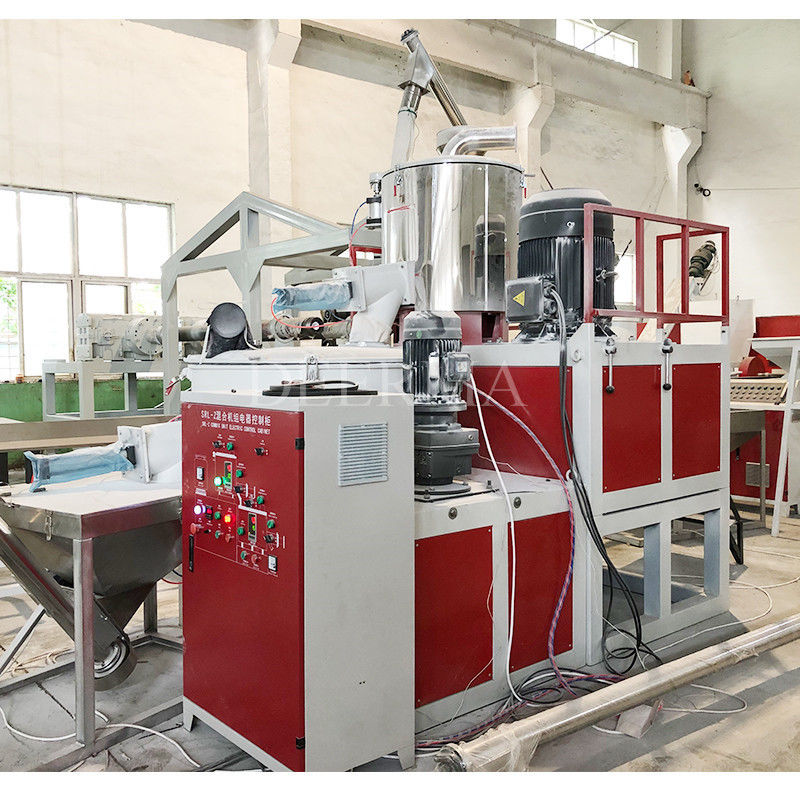

300L 600L PP PE PVC Mixing Machine 220V / 380V High Speed PVC Mixer 0

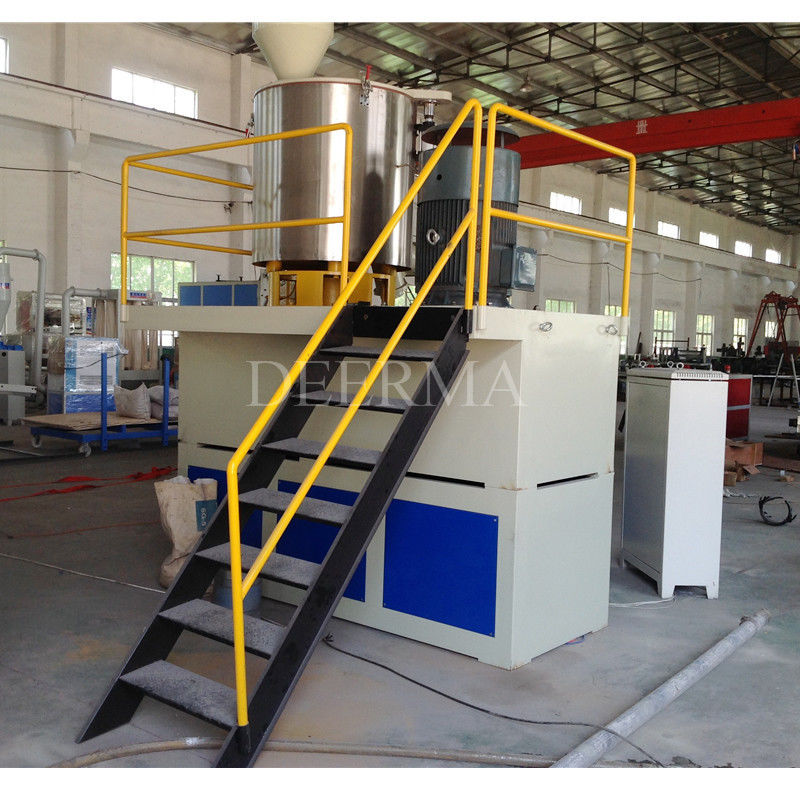

300L 600L PP PE PVC Mixing Machine 220V / 380V High Speed PVC Mixer 1

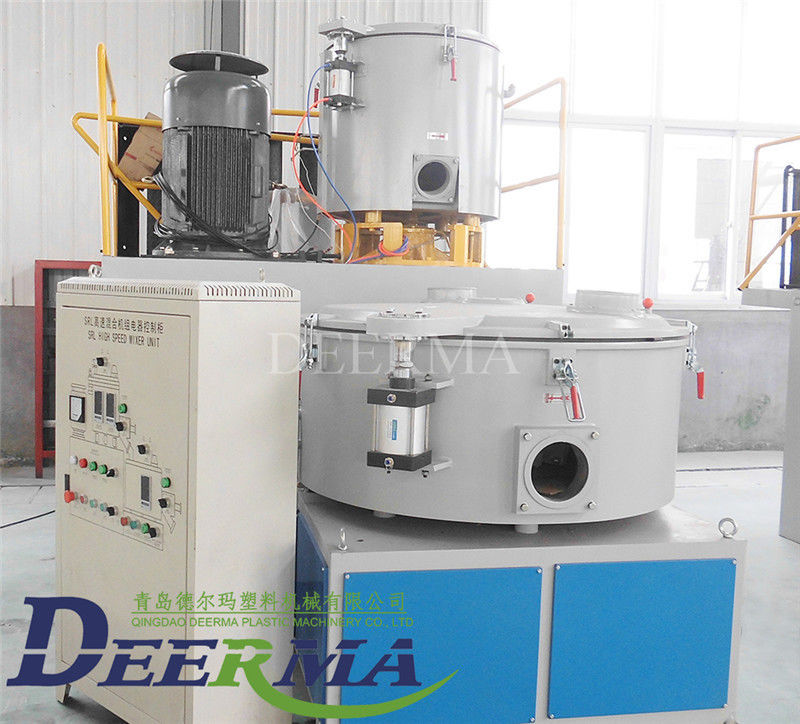

300L 600L PP PE PVC Mixing Machine 220V / 380V High Speed PVC Mixer 2

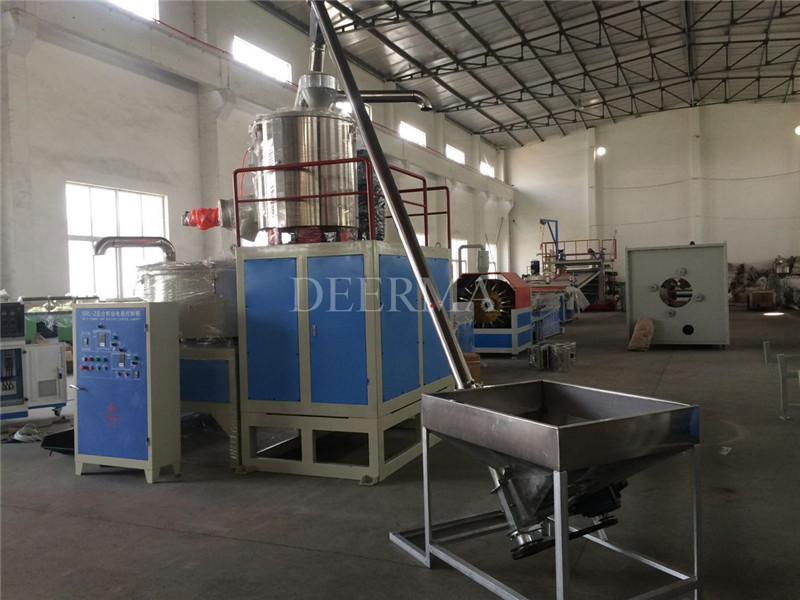

300L 600L PP PE PVC Mixing Machine 220V / 380V High Speed PVC Mixer 3

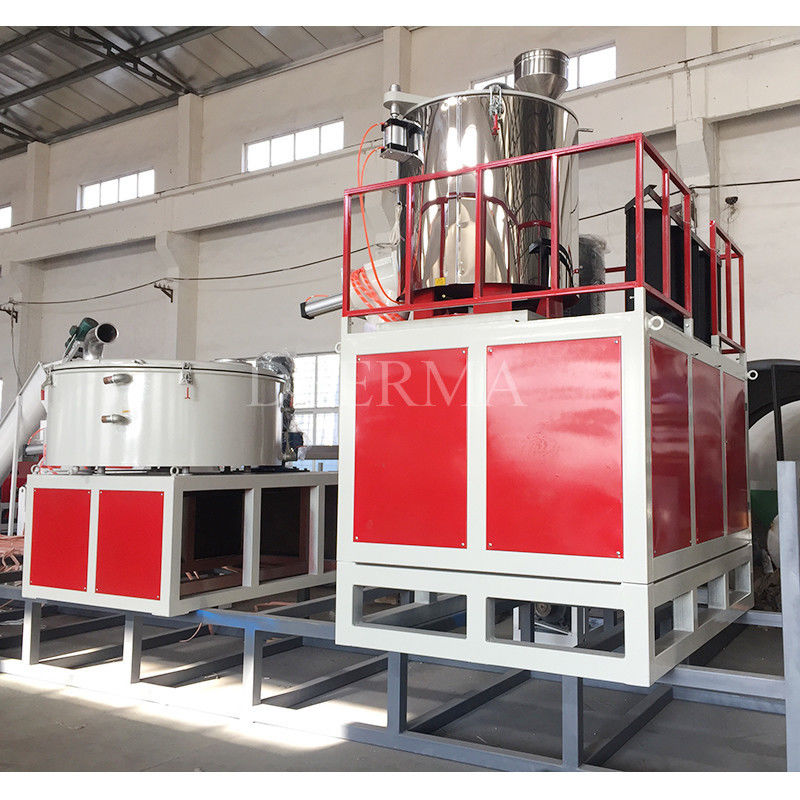

300L 600L PP PE PVC Mixing Machine 220V / 380V High Speed PVC Mixer 4

Tag:

Price:	CN¥63,492.00/sets >=1 sets
Packaging Details:	Outside package:Stretch film
Supply Ability:	3 Set/Sets per Month
