SIEMENS BEIDE 37 Kw Main Motor 20-110mm Pvc Pipe Extrusion Line With Advanced Technology
Product Description
Production Process for PVC Pipe Machine With Price
- (PVC Powder +CACO + additive ) → Mixing (300/600 Mixer Machine)
- SJZ65/132 PVC Pipe Production Line (Extruder - Vacuum Calibration - Haul off - Printer -Cutter- Stacket - Belling)
- Auxiliary Machines (Mixer , Crusher , Printer , Belling ....)
Famous Electric Brand or Customized
- SIEMENS MOTOR
- ABB/DELTA INVERTER
- OMORN TEMPERATURE METER
- SCHNEIDER RELAY /CONTACTOR
PVC PIPE PRODUCTION LINE MACHINE Characteristic
|
Pipe range
|
20-63mm single
|
20-63mm dual
|
75-160mm
|
110-315mm
|
315-630mm
|
|
Extruder
|
SJZ51/105
|
SJZ65/132
|
SJZ80/156
|
SJZ80/156
|
SJZ92/188
|
|
Extruder power
|
18.5kw
|
37kw
|
37kw
|
55kw
|
110kw
|
|
Extrusion capacity
|
120kg/h
|
250kg/h
|
250kg/h
|
360kg/h
|
800kg/h
|
|
Max. Production speed
|
12m/min
|
10m/min
|
6 m/min
|
3 m/min
|
1.2m/min
|
SJZ65/132 PVC Pipe Machine which can produce 75-160mm & 75-200mm pvc pipe
|

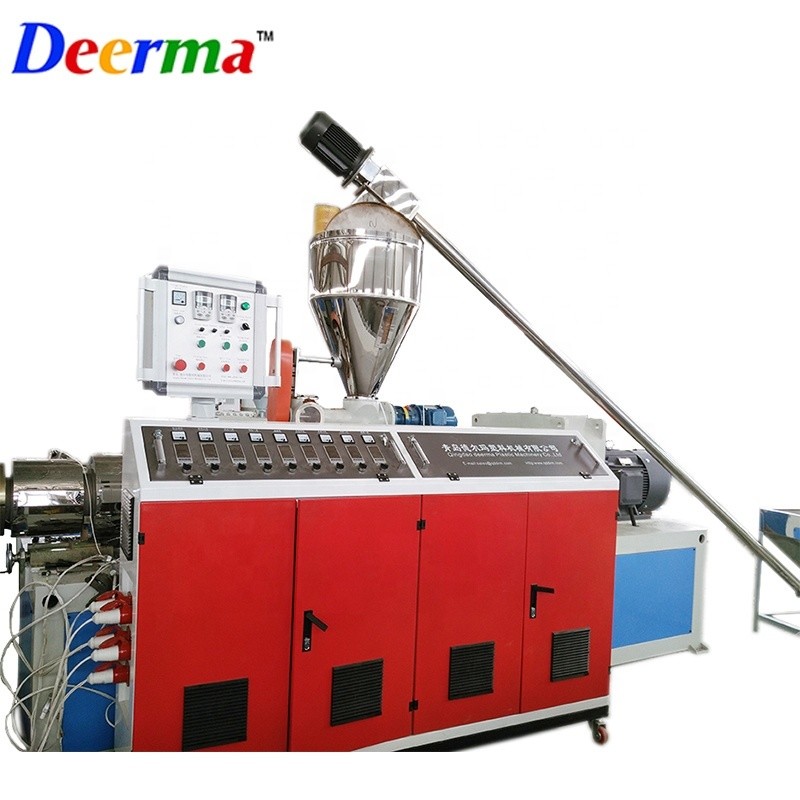

SJZ65/132 twin screw extruder
|
Screw diameter
|
65/132mm
|
|
Machine barrel and screw material
|
38CrMoAlA Nitriding treatment
|
|
Main motor power
|
37KW SIEMENS BEIDE
|
|
Contactor and breaker
|
Schneider or Siemens
|
|
Mould
|
Including
|
calibration sleeve
|
|
Material
|
Made by 40Cr.
Inner surface polished
|
|
Vacuum Calibration Tank
|
Vacuum pump power
|
5.5KW
|
|
Water pump power
|
4KW×2units
|
|

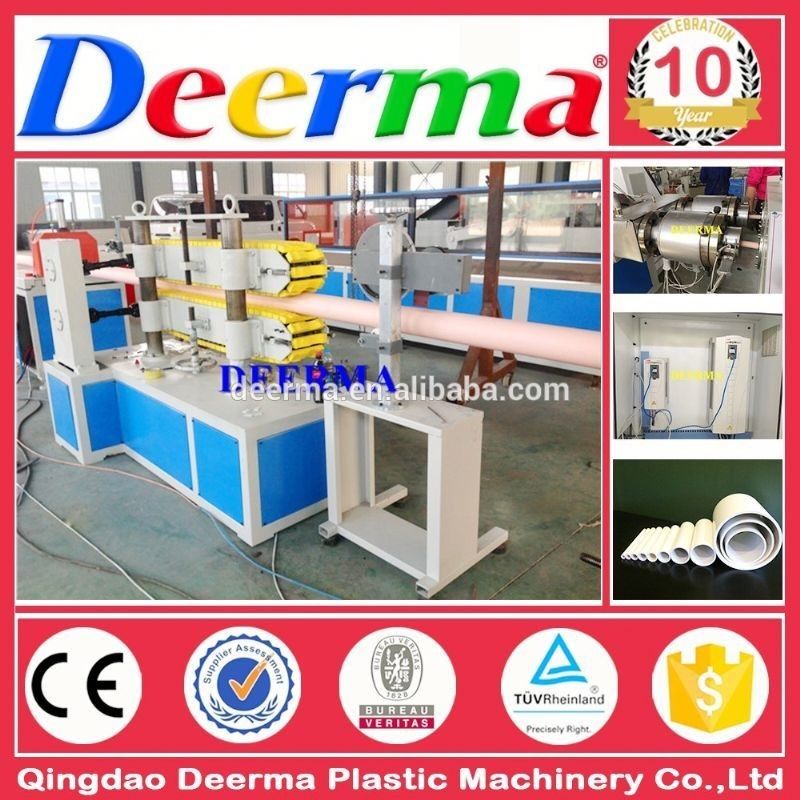

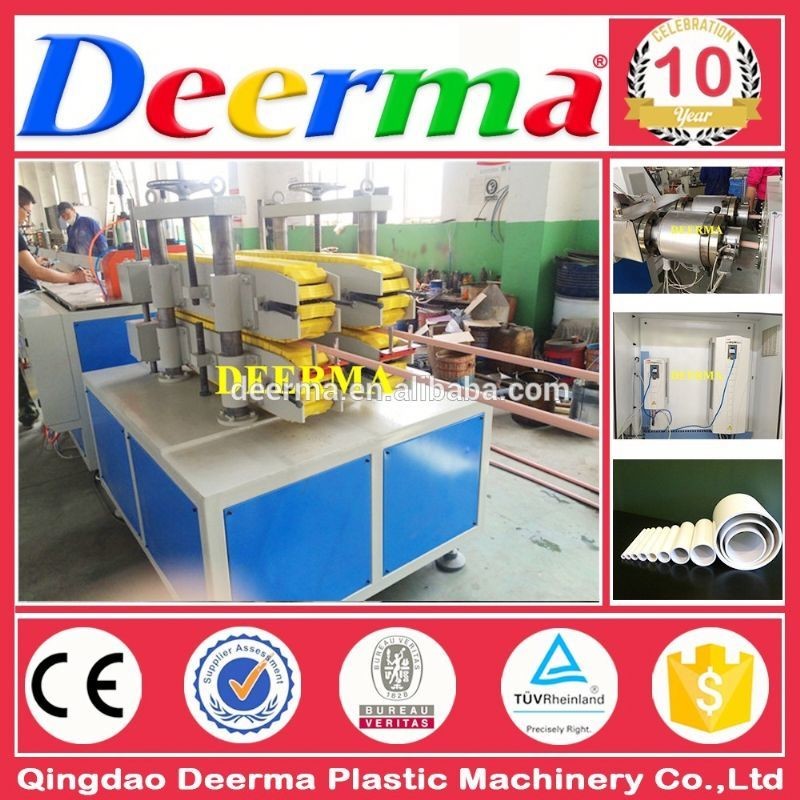

Haul Off (2 claws)
|
Motor power
|
2.2KW
|
|
traction
|
25000N
|
|
The range of pulling pipe diameter
|
75-160mm
|
|

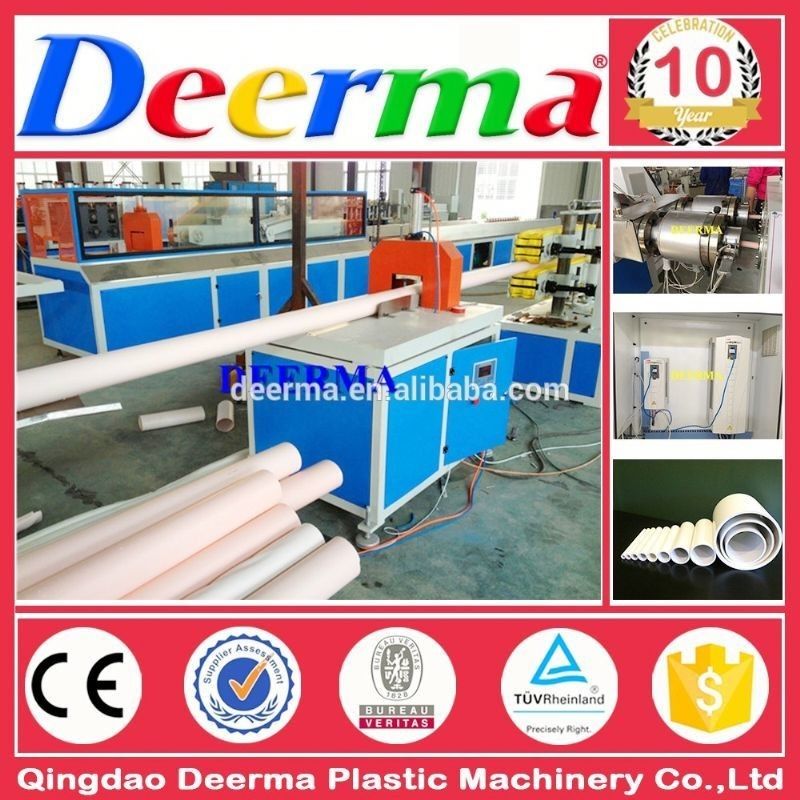

Lift Cutter
|
Saw motor
|
2.2KW
|
|
blower
|
1.5KW
|
|
The range of cutting pipe diameter
|
75-160mm
|
|
Stacker
|
Length
|
6,000mm
|
|
Control action
|
Pneumatic
|
|
Uses the stainless steel work mesa, automatic rollover fell material
|

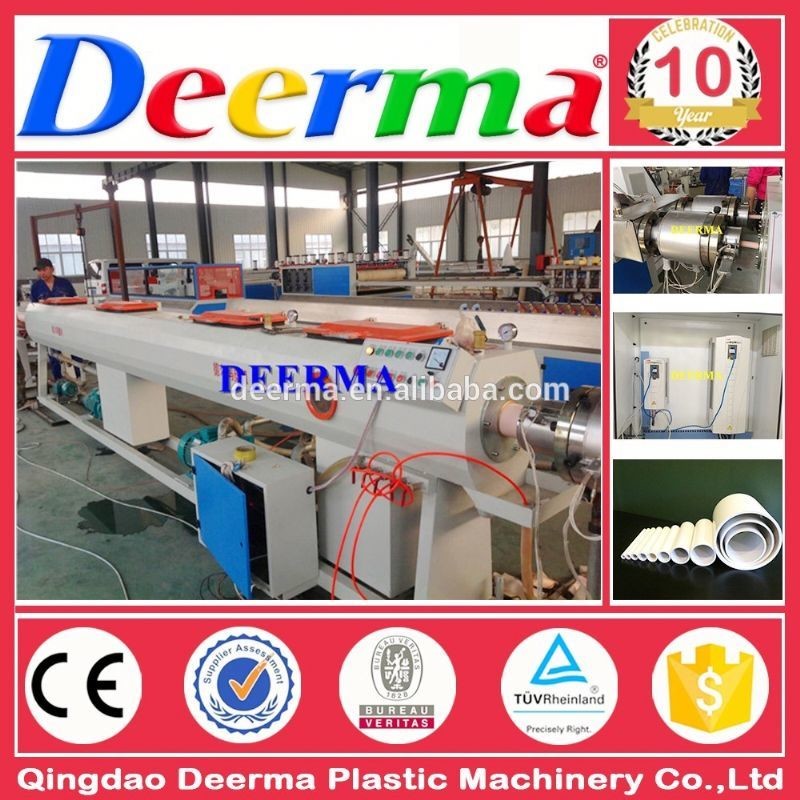

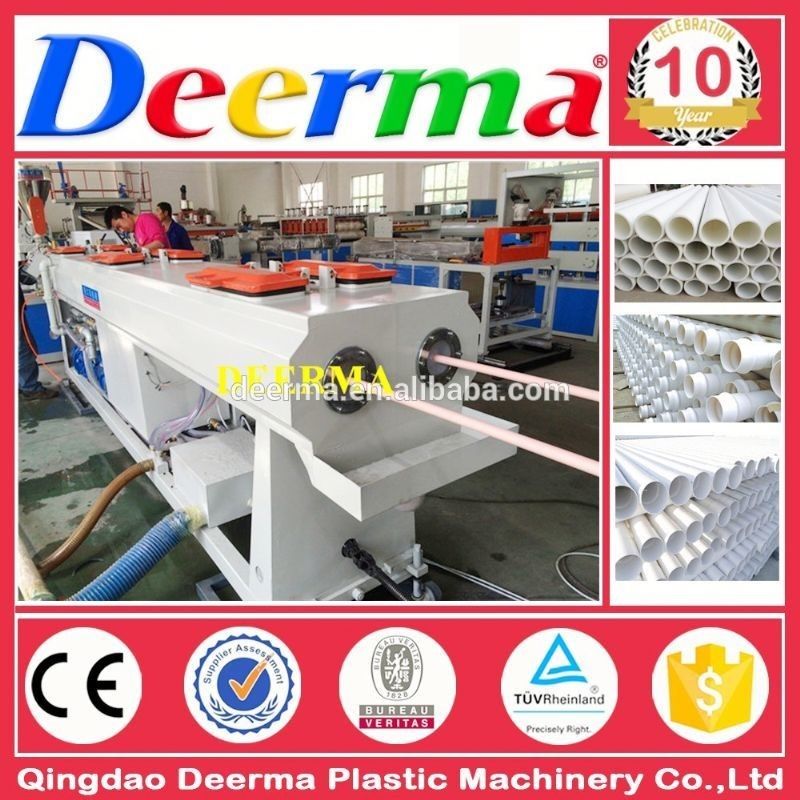

Pictures of Whole Production Line
Testing samples of 20mm & 110mm PVC PIPE with high quality by our machine
Work Flow of PVC Pipe Machine
Company Information
DEERMA - Trade Assurance Limit : US $164,000
1.100% Product quality protection
If the product quality does not meet the standards set in your contract, Alibaba.com will refund the covered amount of your payment.
2.100% On-time shipment protection
If your products are not shipped on time as per your contract, Alibaba.com will refund the cover amount of your payment.
3.100& Payment protection
If the supplier breaks the on-time shipment or product quality terms of your contract, Alibaba.com will refund the covered amount of your payment
|
Certification
|
Certified By
|
Certificate No.
|
Business Scope Expiry Dat
|
Expiry Date
|
|
ISO 9001:2008
|
Beijing Hangxie Certification
Center Co., Ltd.,
CNAS
|
03413Q21640R1M
|
Design and Production of
Single-Screw Plastic Extruders
and Conical Twin-Screw
Plastic Extruders
|
17/Sep./2013
16/Sep./2016
|
|
CE
|
EuropeanInspection and
Certification
Company S.A.
|
CN.CE.0680-10/10
|
Plastic Extrusion Machinery &
SJ-30, SJ-45, SJ-65, SJ-90,
SJ-120, SJ-150, SJ-180,
SJ-200, SJSZ-51/105,
SJSZ-65/132, SJZS-80/156,
SJSZ-92/188
|
29/Oct./2010
28/Oct./2015
|
|
TUV
|
TÜV Rheinland
|
7467484_P+T
|
Production & Trade Assessment
|
15/Jan./2014 14/Jan./2015
|
|
Main Product Lines Verification Report
|
TÜV Rheinland
|
7467487_P+T
|
Main Product Lines Verification
|
15/Jan./2014 14/Jan./2015
|
|
SGS
|
SGS-CSTC Standards Technical Services Co.,Ltd
Focus Technology Co., Ltd
|
QIP-ASR155278
|
Extrusion Machine, Pipe Machine ,profile Machine, Roof Machine…
|
15/May./2015
|
After-Sales Service
Execellent Service-Turnkey Project
DEERMA is committed to providing full support for its local and international clients and dealers and will always provide a prompt response to customer enquiries.
A. Free training for maintenance personnel;
B. Installation service& commissioning by porfessional;
C.The establishment of user fles, a long-term follow-up service and regular return visits;
D. A 24-hour hot-line service ensures the timeliest solution to your faulty equipment.
E.Calling or Door to Door service
F.One year guarantee for whole machine
FAQ
Q: Your company is an industrial manufacture factory or a transactional company ?
A: Deerma Company is an industry manufacture of Extrusion Machines.
Q:All of your products are made by your self or compacted via purchasing the others?
A: we have independent technical team who focus on design & development & Manufacture extrusion machines. all the products are made by our technical team.
Q:Annual Production Capacity( Previous Year)
A: About 80 lines from 2014.1 to 2014.12 and total revenue is about USD 2500000
Q: Quality Control Management
Q: Is there quality control on all production lines?
Yes, all production lines have adequate quality control
Q:Do the QA/QC inspectors work independently from the production line? Yes
Q:How many QA/QC inspectors in total? 4
