Detail Information

Name:	HDPE Pipe Machine	Plastic Processed:	PE
Application:	PIPE, Profile, Plates	Screw Design:	Single-screw
Screw Material:	38CrMoALA	Screw Diameter (mm):	65 Mm
Screw L/d Ratio:	33:1	Screw Speed (rpm):	55 Rpm
Place Of Origin:	Shandong, China	Brand Name:	Deerma
Voltage:	380V/3P/50HZ Or As Local Voltage	Dimension(lwh):	L20000W2100H2600mm
Power (kw):	37	Warranty:	1 Year
Key Selling Points:	High Productivity	Video Outgoing-inspection:	Provided
Core Components:	Bearing, Pump, Gear, Engine	Machinery Test Report:	Provided
Plastic Machine:	Hdpe Pipe Machine Manufacturer / Pe Pipe Making Machine	Product Application:	Water Supply, Gas Suply
Model:	SJ65/33 PE Pipe Production Line	PE Pipe Diameter:	20-63mm
Output Capacity:	80-120 Kg/h	Tractor Speed:	0-12 M/min
Drive Motor:	Siemens	Temperature Controller:	Omron
Operator:	1-2 Persons Per Shift	Power(W):	Installed Power80kw;consumption Power55kw
Condition:	New	Showroom Location:	Egypt, Peru, India, Russia, Thailand, Kenya, South Korea, Algeria, Romania, South Africa
Applicable Industries:	Hotels, Farms, Home Use	Warranty Of Core Components:	1 Year
Weight:	5 KG
Highlight:	SJ65/33 HDPE Pipe Machine , HDPE Pipe Machine 37kw , Extrusion Pipe Machine 380V

Product Description

Professional Pe Pipe Making Machine With 5 KG Capacity Operator 1-2 Persons Per Shift / Hdpe Pipe Machine

Product Description

Working process(It can produce 20-1200mm HDPE pipe )

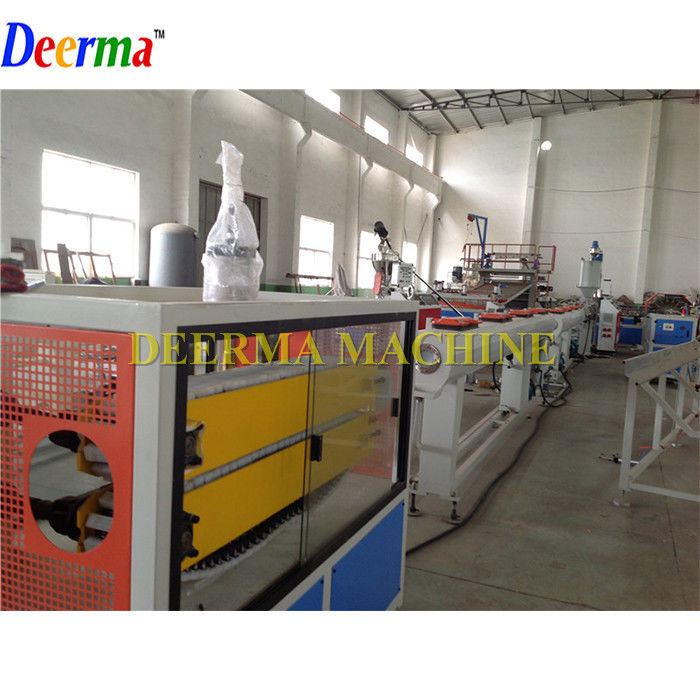

Raw material +master batches → mixing → vacuum feeder→ material dryer → single screw extruder ( small CO-extruder ) → mould → vacuum calibration tank → spray cooling tank ( water tank) → haul-off unit → cutting machine→ stacker / winder

Model	Pipe Range(mm)	Hauling Speed(m/min)	Total Length(m)	Output Capacity(kg/h)
PE63	∅16-∅63	1.2 - 12	35	80 - 120
PE110	∅20-∅110	1.0 - 10	38	150 - 250
PE160	∅50-∅160	0.8 - 8	40	200 - 250
PE250	∅75-∅250	0.38 - 3.8	42	250 - 350
PE315	∅90-∅315	0.3 - 3	44	300 - 350
PE450	∅110-∅450	0.2 - 2.0	56	350 - 450
PE630	∅250-∅630	0.1 - 1.0	62	700 - 800
PE800	∅315-∅800	0.07 - 0.7	68	900 - 1100
PE1000	∅400-∅1000	0.06 - 0.6	70	1000 - 1100
PE1200	∅500-∅1200	0.05 - 0.5	72	1000 - 1300
PE1600	∅710-∅1600	0.04 - 4	74	1200 - 1500
PE2000	∅710-∅1600	0.03 - 3	76	1400 - 1700

Detailed Images

SJ65 HDPE Pipe Machine

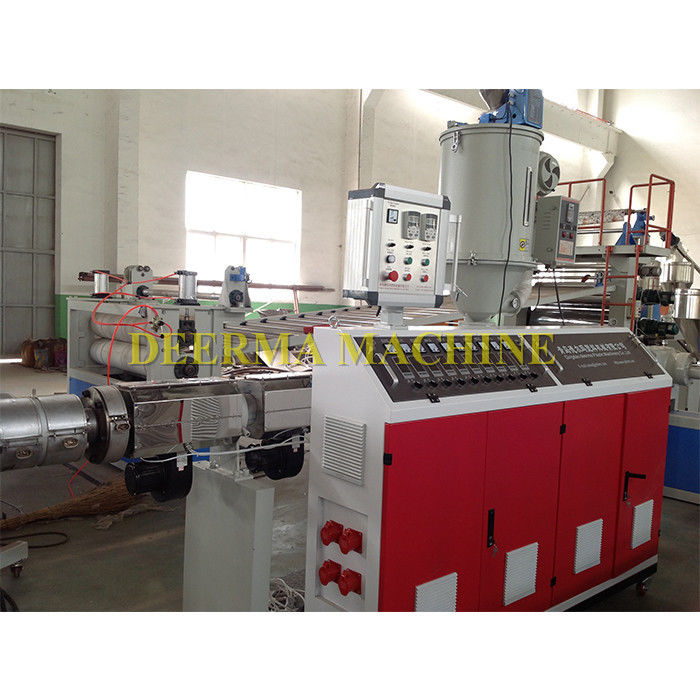

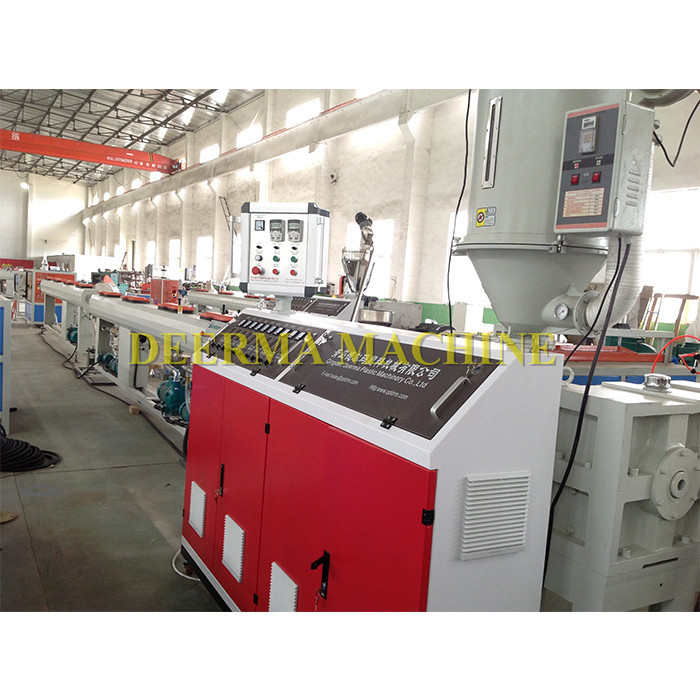

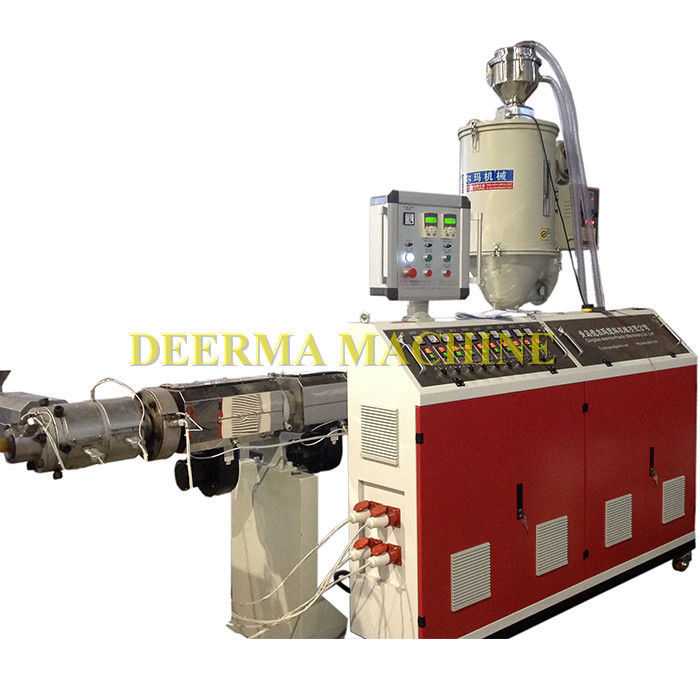

SJ65/30 Single screw extruder With Plastic Automatic Charger & Hopper plastic dryer & Electric Control Cabinet (keyboard control)

37KW SIEMENS Motor

ABB Inverters

Omron Temperature meter

Capacity : 80-120kg/h

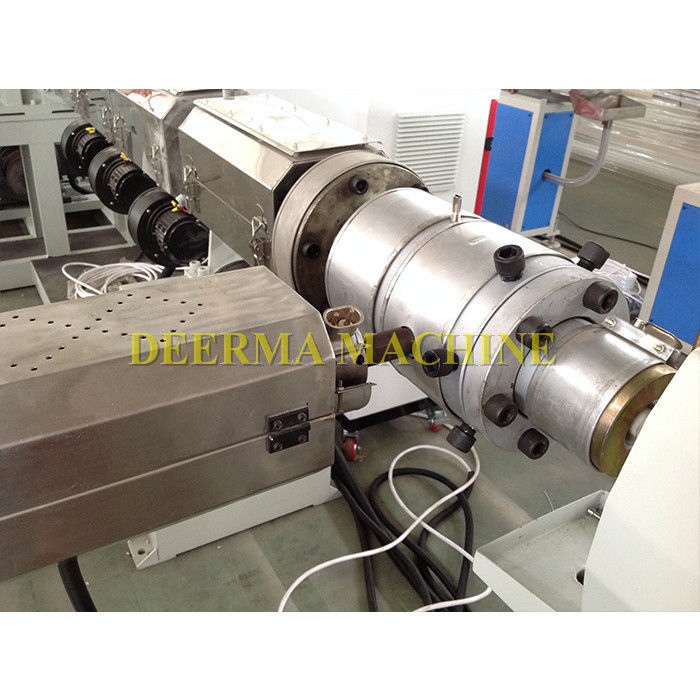

Die Head

Nose material : Plastics die steel 3Cr2Mo, forged, hardening and tempering

Pipe Thickness Control: Equip two different pressure grade die core

Calibration mold material : Wearable tin bronze ZQSn5-2-5

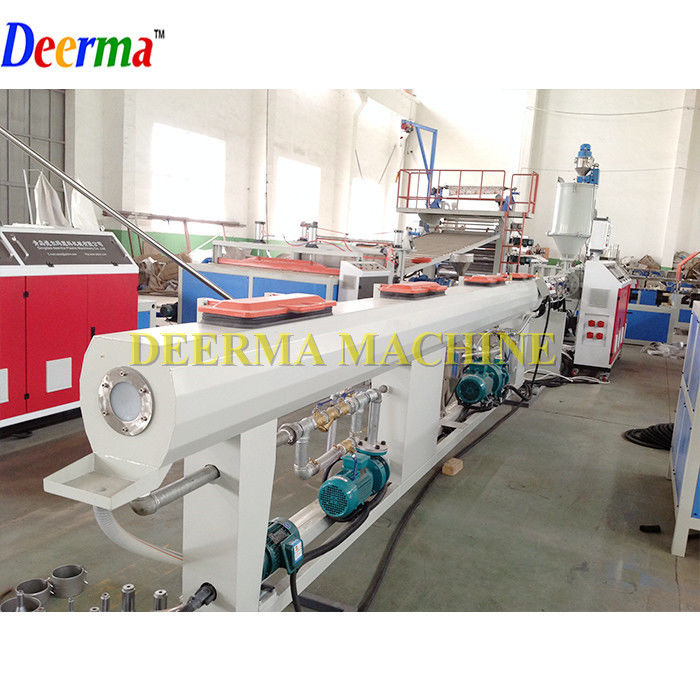

Vacuum calibration tank

Length of vacuum calibration tank : 6 m

Vacuum pump : 4kw

Water pump : 5.5kw

Related Products

1. SJ75+ SJ90 Three-Layer HDPE Pipe Co-extrusion Machine

2. SJ90/33 HDPE PIPE MACHINE

Certificate

Certification	Certified By	Certificate No.
ISO 9001:2008	Beijing Hangxie Certification Center Co., Ltd.,CNAS	03413Q21640R1M
CE	European Inspection and Certification Company S.A.	CN.CE.0680-10/10
TUV	TÜV Rheinland	7467484_P+T
SGS	SGS-CSTC Standards Technical Services Co.,Ltd	QIP-ASR155278

Packing&Shipping

Company Introduction

Qingdao Deerma Plastic Machinery Co.,Ltd , Focus extrusion machinery more than 13 years , Join us , we make progress together

FAQ

Q: Your company is an industrial manufacture factory or a transactional company ?

A: Deerma Company is an industry manufacture of Extrusion Machines.

Q:All of your products are made by your self or compacted via purchasing the others?

A: we have independent technical team who focus on design & development & Manufacture extrusion machines. all the products are made by our technical team.

Q:Annual Production Capacity( Previous Year)

A: About 80 lines from 2014.1 to 2014.12 and total revenue is about USD 2500000

Q: Quality Control Management

Q: Is there quality control on all production lines?

Yes, all production lines have adequate quality control

Q:Do the QA/QC inspectors work independently from the production line? Yes

Q:How many QA/QC inspectors in total? 4
