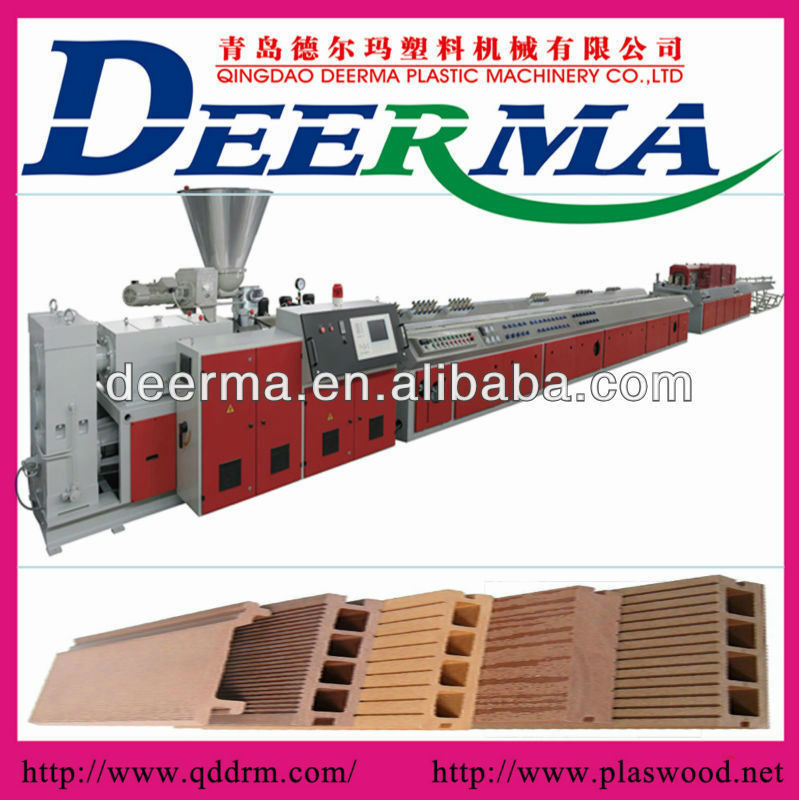

WPC Door Line Production Line For Building Plate/Wood Plastic Profile Extrusion Line/WPC Skirtings Machine
WPC Profile production line
WPC Door Frame extrusion line
WPC Decking extrusion machinery
WPC Floor machine
WPC profile extrusion machinery
WPC plastic machine
What is Features of our WPC profile machine?
1.Our WPC machine has features of low consumption,low noise,stable running..
2.This WPC machine include:extruder,mould,vacuum calibration table,haul-off machine,cutter and stacker.
3.The extruder of WPC machine adopt special wpc screw and barrel for extrusion.With different mould,WPC machine
can produce wpc products with different shapes.
Flow Process
1.PE/PP+wood extrusion line craft:
Wood milling(wood powder,rice husk)—— Mixer(plastic+wood)——Granulator——Wpc extrusion line+Auxiliary
2.PVC+wood extrusion line craft:
Wood milling(wood powder,rice husk)——Mixer(plastic+wood)——Wpc extrusion line+Auxiliary
Technical parameter
| Model |
YF180 |
YF300 |
YF600 |
YF800 |
YF1000 |
| Max.width of product(mm) |
180 |
300 |
600 |
800 |
1000 |
| Extruder mode |
SJZ51/105 |
SJZ65/132 |
SJZ80/156 |
SJZ80/156 |
SJZ92/188 |
| Extrusion capacity(kg/h) |
150 |
180 |
360 |
360 |
600 |
| Motor power(kw) |
18.5 |
37 |
55 |
55 |
110 |
| Total length(m) |
18 |
22 |
26 |
28 |
32 |
Main Composition
| Item |
Quantity |
| SJSZ- XX Twin Screw Extruder with Automatic Feeding System |
One set |
| Die Mold & Stock Mold |
One set |
| Vacuum Calibrarion Table |
One set |
| Haul-off and Cutter Unit |
One set |
| Stacker |
One set |
| Electric Control System |
One set |
Application
WPC production line is mainly used for producing wpc profiles,such as decking,skirting stair handrails etc.Meanwhile,this production line can also produce pure pvc products,such as door&window frame,ceiling etc.
Machine's Photos
1.Twin screw extruder with Automatic feeding system -- SJZ xx series conical twin screw extruder: (The model according to the sizes of final products to choose ) The specially designed screw and the advanced controlling system ensure excellent plasticization, high output and stable extruding.
| Max Motor |
SIEMENS |
| Motor power |
37kw |
2.Die Mould and Stock Mould (Matches or according to customer's drawings or samples)
Mould adopts high-quality alloy steel and throttling device to ensure even pressure of feed influent at the mould lips, and also differential action of up-down piece guarantee even thickness of the plate.
3.Vacuum calibration table
Heating exchanging and cooling system of quick speed in calibrating system alternate effectively and ordinally with vacuum system, which ensures calibrating precision. Vacuum system composes two independent subsystems and each is equipped with several fixed circulating vacuum lines of three-point type. Meanwhile, each line carries vacuum regulating system and vacuum display system that realize even and stable vacuum degree of plate surface.
4.Haul-off unit and cutting unit
| Max traction speed |
1-5m / min |
| Tractor motor seed control |
Frequency Control |
| Tractor motor power |
3kw |
| Cutter motor power |
1.5kw |
5.Stacker
The stainless steel kneading board processing becomes, the air operator turn over, using with the cutter, automatically pushes the material, decides long cuts.
6.Electric control system
| Temperatue meter |
Omron |
| Contactor |
Schneider |
| Relay |
Schneider |
| Transducer |
Holip |
| Power light, button |
Schneider |
| Inveter |
ABB |
Auxiliary Machines
1. SWP360 Crusher
2.SHRL 300/600 High Speed heat/cooling mixer machine
Trade Terms
Payment: T/T, Western Union, MoneyGram,PayPal; 30% deposits; 70% balance before deliverying.
Delivery Time: 30-45 days; IN STOCK
MOQ: 1set
Our Certification
Company Review
Imported Electic Parts for your choice!
Best Services
1.Our company will provide relevant information on various technology and business consulted by customers. If clients want to visit our company, we will offer all they need for convenience.
2.After signing contract, company designs groundsill installation chart for water, electricity and gas of equipment basing on real condition and customers’ requirements and provides detail order list and matching manufacturer for reference for customer.
3.After equipment arrival, our service personnel will arrive at posted locale for installation, debugging, training and technology transfer till customers can operate independently and manufactures eligible product. Service personnel have to arrive at customer’s locale in time when we provide service for client again.
Why Choose us
1.We are China Leading Plastic Machine Manufacturer.
2.Alibaba Assessed 7 years Domestic Supplier .
3.Inspected by the Inspection Institution of SGS Certification.
4.100% QC inspection Before Shipmeng.
5.Best Quality & Best Service with Competitive price.
We have THREE this production lines in our showroom for other customer , welcome to visit our factory
