Detail Information

Name:	Plastic Profile Machine	Plastic Processed:	PE, PP, PVC
Application:	Profile	Screw Design:	Double-screw
Twin Screw Type:	Counter-rotating Conical Twin-screw	Screw Material:	38CrMoALA
Screw Diameter (mm):	51 Mm	Screw L/d Ratio:	30:1
Screw Speed (rpm):	55 Rpm	Place Of Origin:	Shandong, China
Brand Name:	Deerma	Voltage:	380V Or CUSTOMIZED
Dimension(lwh):	L22000W1600H2600mm	Power (kw):	22
Warranty:	1 Year	Key Selling Points:	High Productivity
Video Outgoing-inspection:	Provided	Core Components:	Bearing, Motor, Pump, Pressure Vessel
Machinery Test Report:	Provided	Pvc Machine:	Angle Bead Pvc Plastic Corner Bead Machine / Making Machine
Raw Material:	PVC Resin & Calcium Powder & Additive	Production Line Speed:	1-5m/min
Output Capacity:	70-120 Kg/ Hr	Drive Motor:	SIEMENS DEIDE
Inveter:	ABB Made In Switzerland	Temperature Controller:	Omron Made In Japan
Operator:	1-2 Persons Per Shift	Output (kg/h):	70 - 120 Kg/h
Condition:	New	Showroom Location:	None
Applicable Industries:	Hotels, Home Use	Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year	Weight:	8
Port:	Qingdao
Highlight:	Angle Bead Plastic Profile Machine , 22kw Double Screw Extruder , Double Screw Extruder 120kg/hr

Product Description

Double-Screw Profile Angle Bead Pvc Plastic Corner Bead Making Machine For Large-Scale Production

Product Description

Main Composition

SJZ-XX Twin Screw Extruder with Automatic Feeding System
Die Head & Stock Mould
Vacuum Calibration Platform
Haul-off
Cutter
Stacker
Electric Control System

Auxiliary Machine for your choose

SHRL300/600 or SHRL200/500 Mixer
SWP-360/400/500 Crusher
SMP-400/500 Milling Machine

Famous Electric Brand or Customized

SIEMENS MOTOR
ABB/DELTA INVERTER
OMORN TEMPERATURE METER
SCHNEIDER RELAY /CONTACTOR

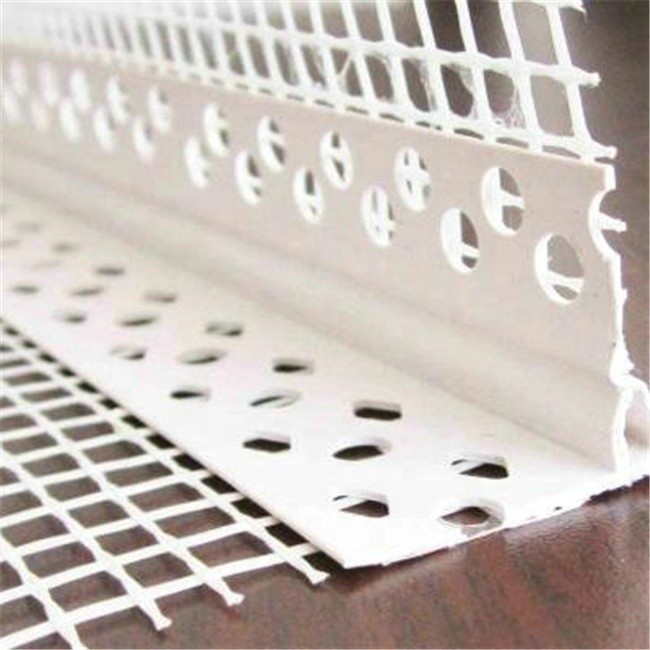

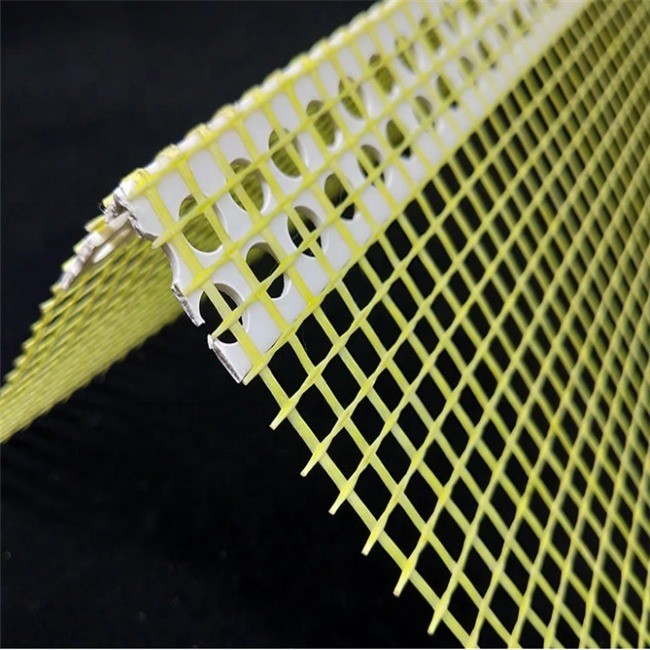

PVC Angle / Corner Bead

1.made of PVC,adhere to the fiberglass mesh.

2.thickness:1.0-2.0mm

3.wing width of pvc corner bead:18x18mm,20x20mm,25x25mm,30x30mm,

4.fiberglass mesh width:10cm

5.fiberglass mesh size:5x5mm,10x10mm

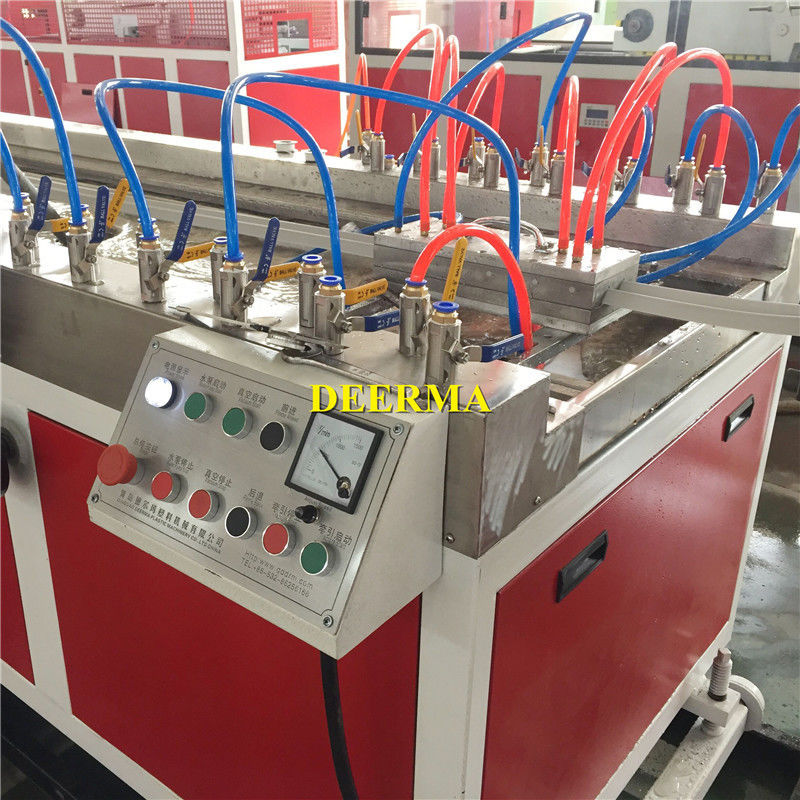

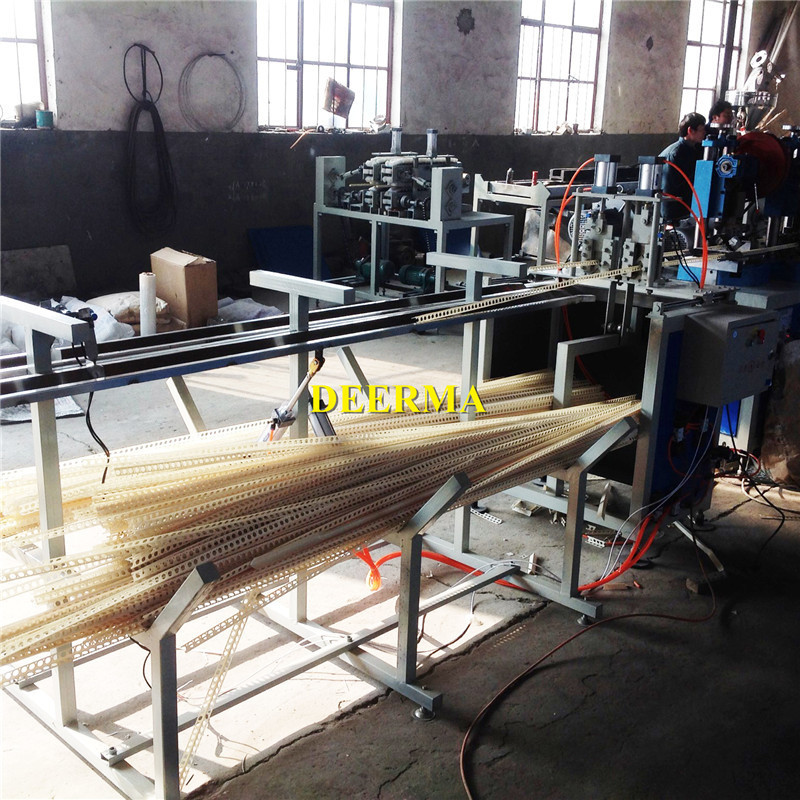

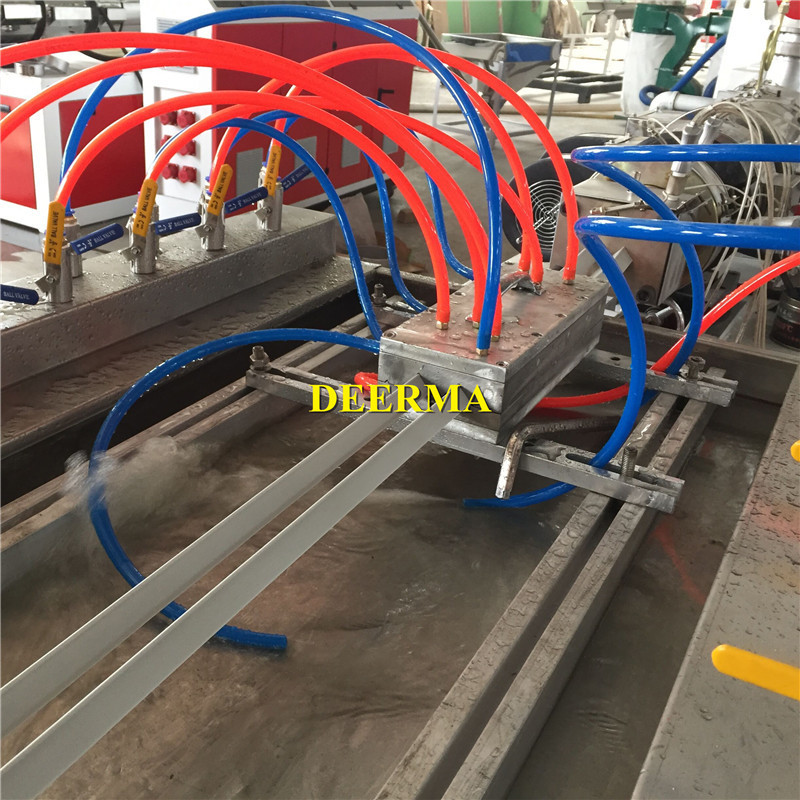

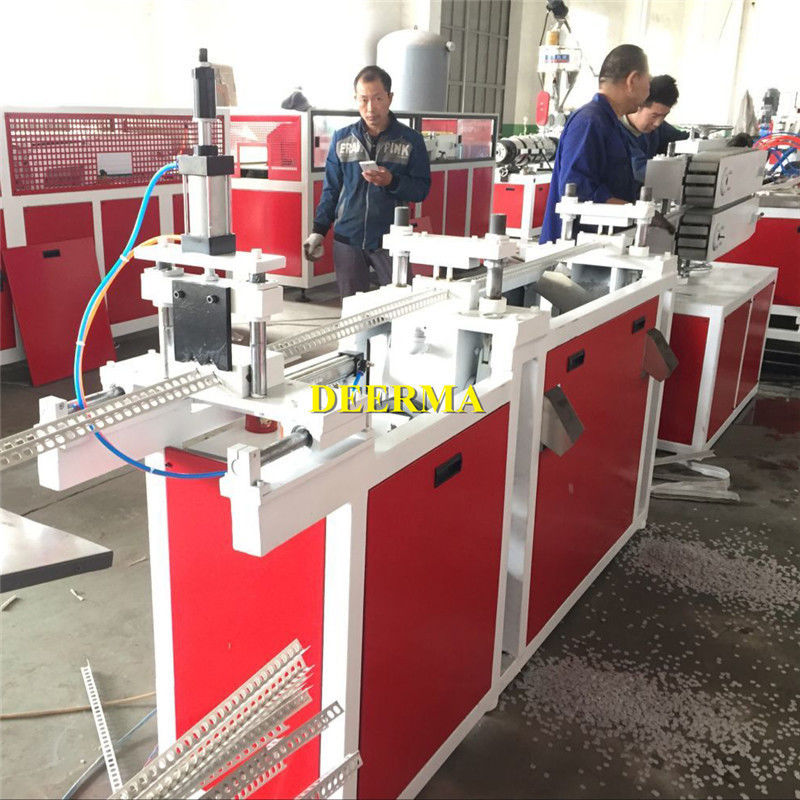

Machine's Photos

Angle Bead Plastic Profile Machine 22kw Double Screw Extruder 70kg/hr - 120kg/hr 3

Packaging & Shipping

Angle Bead Plastic Profile Machine 22kw Double Screw Extruder 70kg/hr - 120kg/hr 5

Certifications

Angle Bead Plastic Profile Machine 22kw Double Screw Extruder 70kg/hr - 120kg/hr 6

Certification	Certified By	Certificate No.	Business Scope Expiry Dat	Expiry Date
ISO 9001:2008	Beijing Hangxie Certification Center Co., Ltd., CNAS	03413Q21640R1M	Design and Production of Single-Screw Plastic Extruders and Conical Twin-Screw Plastic Extruders	17/Sep./2013 16/Sep./2016
CE	European Inspection and Certification Company S.A.	CN.CE.0680-10/10	Plastic Extrusion Machinery & SJ-30, SJ-45, SJ-65, SJ-90, SJ-120, SJ-150, SJ-180, SJ-200, SJSZ-51/105, SJSZ-65/132, SJZS-80/156, SJSZ-92/188	29/Oct./2010 28/Oct./2015
TUV	TÜV Rheinland	7467484_P+T	Production & Trade Assessment	15/Jan./2014 14/Jan./2015
Main Product Lines Verification Report	TÜV Rheinland	7467487_P+T	Main Product Lines Verification	15/Jan./2014 14/Jan./2015
SGS	SGS-CSTC Standards Technical Services Co.,Ltd Focus Technology Co., Ltd	QIP-ASR155278	Extrusion Machine, Pipe Machine ,profile Machine, Roof Machine…	15/Ma

Our Services

1.Our company will provide relevant information on various technology and business consulted by customers. If clients want to visit our company, we will offer all they need for convenience.

2.After signing contract, company designs groundsill installation chart for water, electricity and gas of equipment basing on real condition and customers’ requirements and provides detail order list and matching manufacturer for reference for customer.

3.After equipment arrival, our service personnel will arrive at posted locale for installation, debugging, training and technology transfer till customers can operate independently and manufactures eligible product. Service personnel have to arrive at customer’s locale in time when we provide service for client again.

FAQ

Q: Your company is an industrial manufacture factory or a transactional company ?

A: Deerma Company is an industry manufacture of Extrusion Machines.

Q:All of your products are made by your self or compacted via purchasing the others?

A: we have independent technical team who focus on design & development & Manufacture extrusion machines. all the products are made by our technical team.

Q:Annual Production Capacity( Previous Year)

A: About 80 lines from 2014.1 to 2014.12 and total revenue is about USD 2500000

Q: Quality Control Management

Is there quality control on all production lines? Yes, all production lines have adequate quality
control

Do the QA/QC inspectors work independently from the production line? Yes

How many QA/QC inspectors in total? 4

Tag:

Price:	CN¥216,450.00/sets 1-14 sets
Packaging Details:	angle bead pvc plastic corner bead machine / making machine<br>1.Mold package:Wooden package. <br>2.Outside package:Stretch film<br>3. Loading Container : 1X40GP
Supply Ability:	5 Set/Sets per Month angle bead pvc plastic corner bead machine / making machine
