Detail Information

Plastic Processed:	PVC	Application:	PIPE
Screw Design:	Double-screw	Twin Screw Type:	Counter-rotating Conical Twin-screw
Screw Material:	38CrMoALA	Screw Diameter (mm):	65
Screw L/d Ratio:	132:1	Screw Speed (rpm):	40 Rpm
Place Of Origin:	Shandong, China	Brand Name:	Deerma
Voltage:	380V	Dimension(lwh):	2033
Power (kw):	45	Warranty:	1 Year
Key Selling Points:	Multifunctional	Video Outgoing-inspection:	Provided
Core Components:	Motor, Pump, PLC, Gearbox	Machinery Test Report:	Provided
Raw Material:	PVC Resin	Usage:	Plastic Forming Machine
Processing Type:	Extruding Process	Inverter:	ABB Brand
Motor:	SIEMENS Brand	Contactor:	Siemens Contactor
Capacity:	200-250kg/h	Pipe Diameter:	20-63mm
L/D:	51/105 65/132	Cooling Way:	Recycling Water Cooling
Condition:	New	Showroom Location:	None
Applicable Industries:	Manufacturing Plant, Construction Works	Warranty Of Core Components:	1 Year
Weight:	8 KG
Highlight:	380v pvc pipe making machine , 63mm pvc pipe making machine , 380v pvc water pipe making machine

Product Description

PVC Pipe Machine PVC Pipe Making Machine With Price

16mm-630mm Plastic PVC Pipe Machine

45kw Power PVC Pipe Making Machine for Multifunctional and Fast Production Speed 0

Process flow:

PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → haul off machine → cutting machine → discharging rack

Machine Description

Technical Parameters

Model number	PVC-16/63	PVC-20/110	PVC-50/160	PVC-75/250	PVC-110/315	PVC-200/450	PVC-315/630
Pipe diameter	16-63mm	20-110mm	50-160mm	75-250mm	110-315mm	200-450mm	315-630mm
Max output	120kg/h	120kg/h	180kg/h	300kg/h	450kg/h	650kg/h	800kg/h
Production rate	1.5-15m/min	0.8-8m/min	0.5-5m/min	0.4-4m/min	0.3-2m/min	0.1-1m/min	0.07-0.7m/min
Extruder model	SJZ-51/105	SJZ-51/105	SJZ-55/110	SJZ-65/132	SJZ-80/156	SJZ-92/188	SJZ-92/188
Installed power	45kw	45kw	55kw	75kw	105kw	160kw	205kw
Center height	1000mm	1000mm	1000mm	1000mm	1100mm	1100mm	1200mm
Installation area	222.52.0m	242.82.0m	242.82.0m	302.82.2m	353.02.4 m	363.02.4 m	383.22.8 m

Machines's Pictures

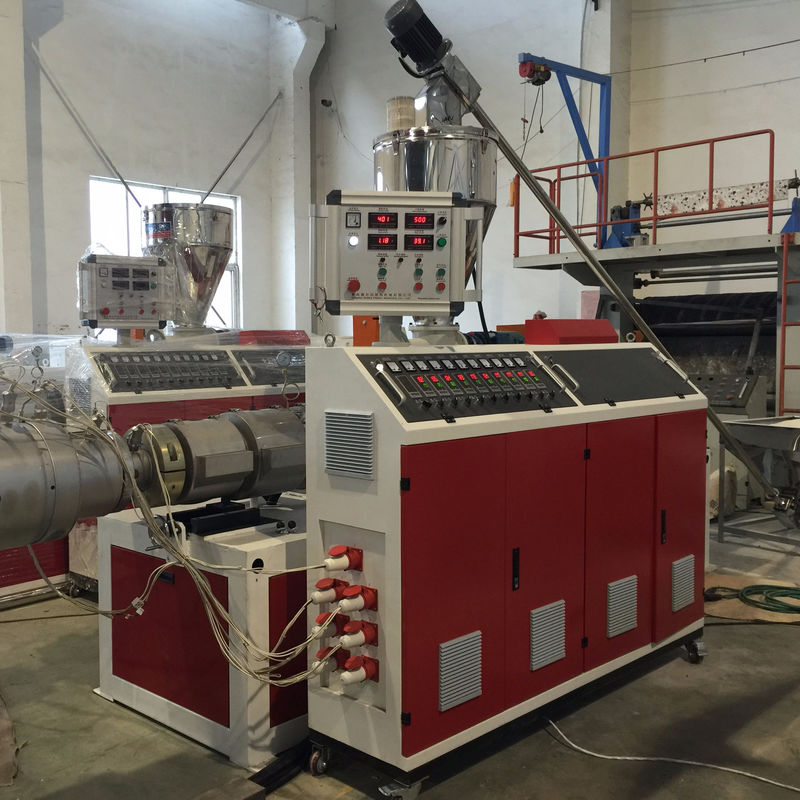

1.PVC pipe machine-Twin screw extruder with Automatic feeding system

45kw Power PVC Pipe Making Machine for Multifunctional and Fast Production Speed 1

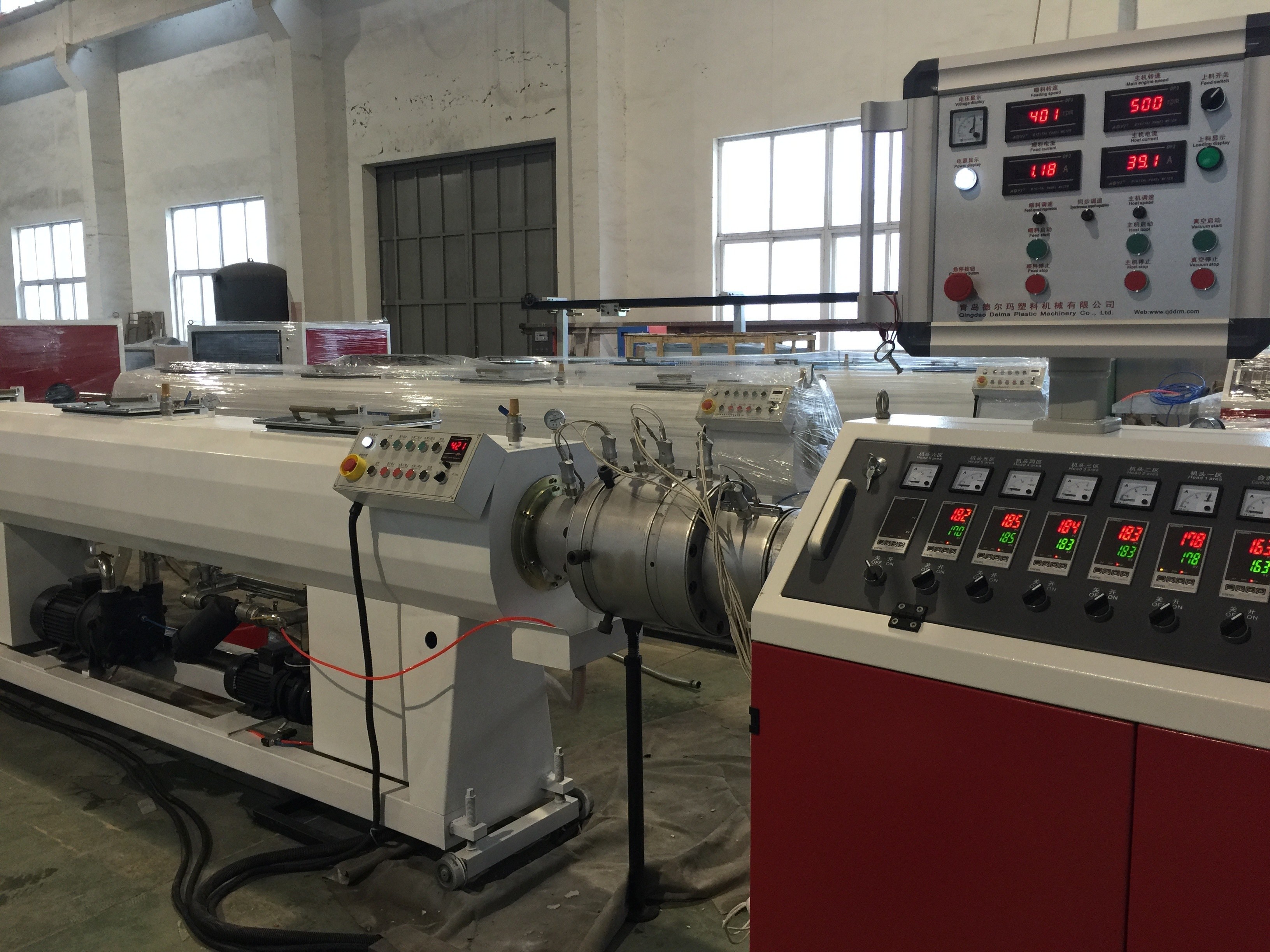

2.PVC pipe machine-Die Mould

45kw Power PVC Pipe Making Machine for Multifunctional and Fast Production Speed 2

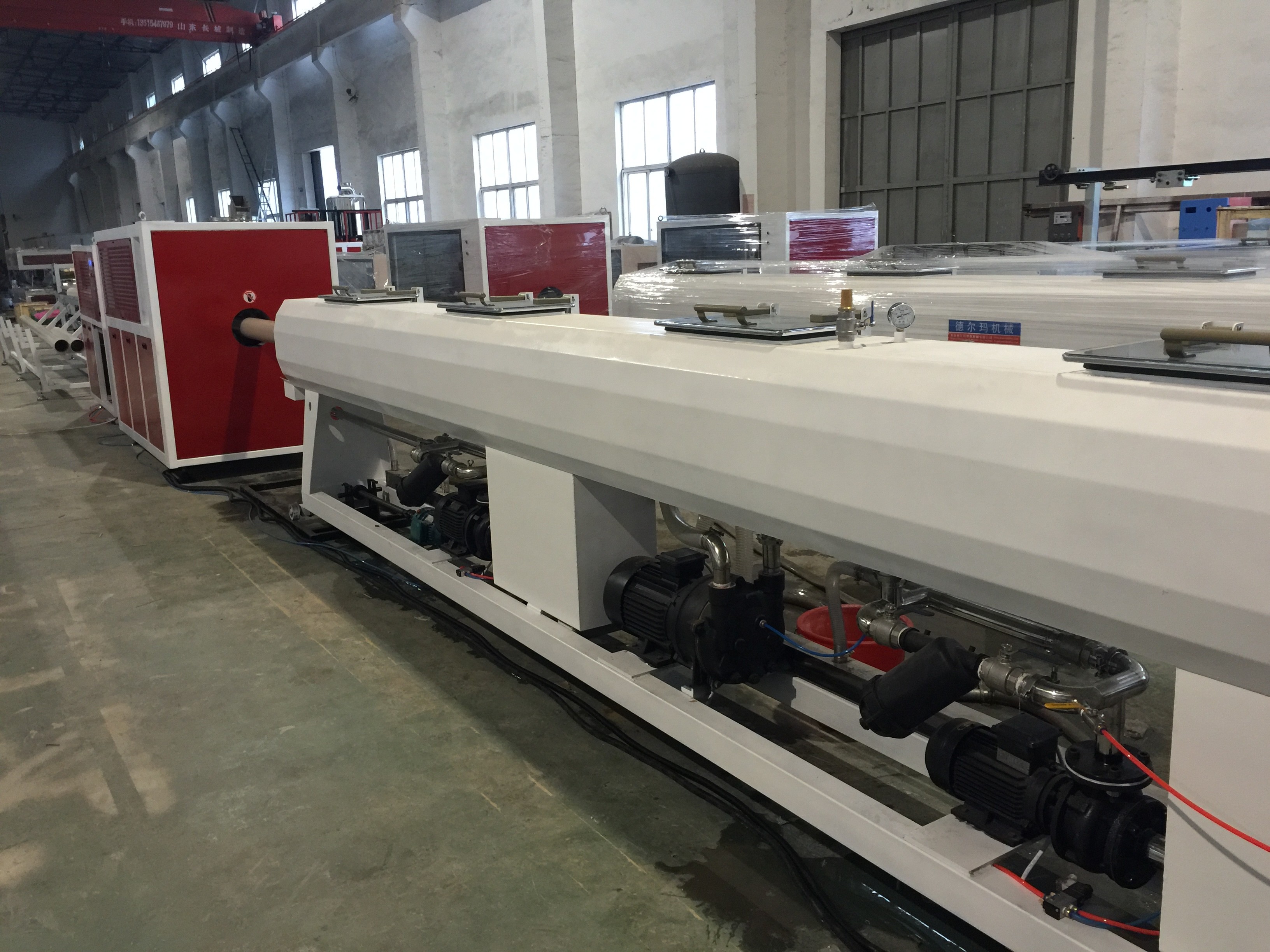

3. PVC pipe machine- Vacuum Calibration Device

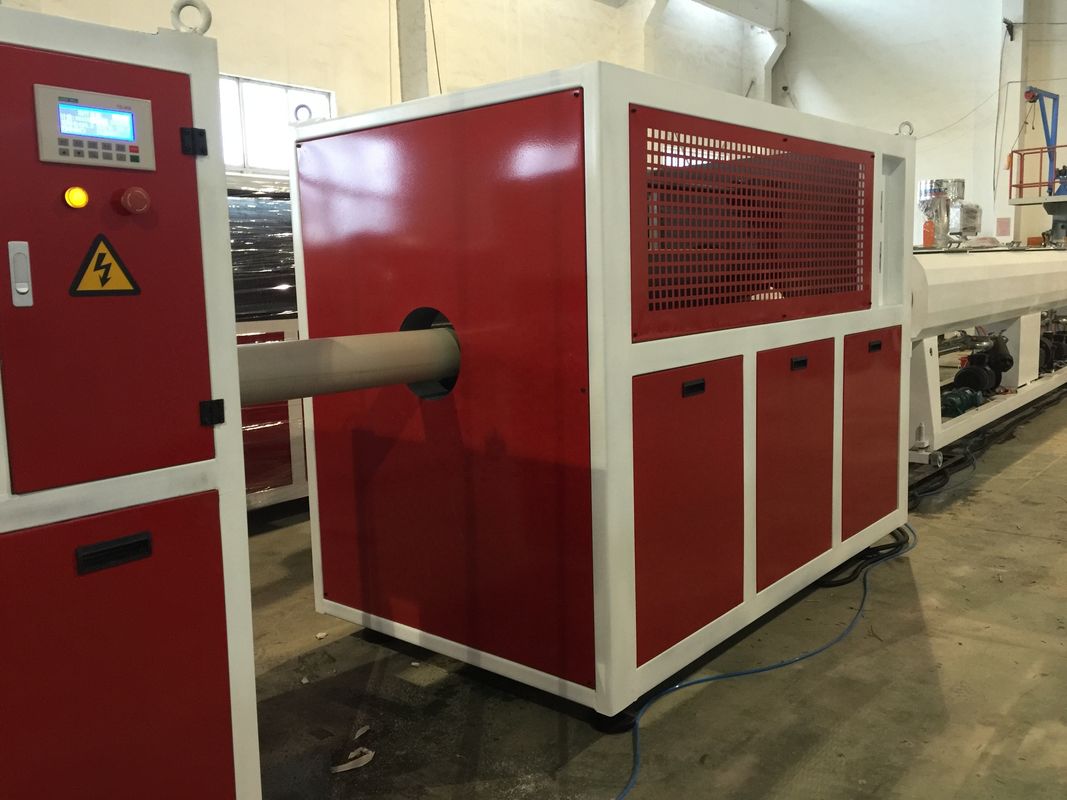

4. PVC pipe machine- Three Caterpillar Haul-off unit

45kw Power PVC Pipe Making Machine for Multifunctional and Fast Production Speed 3

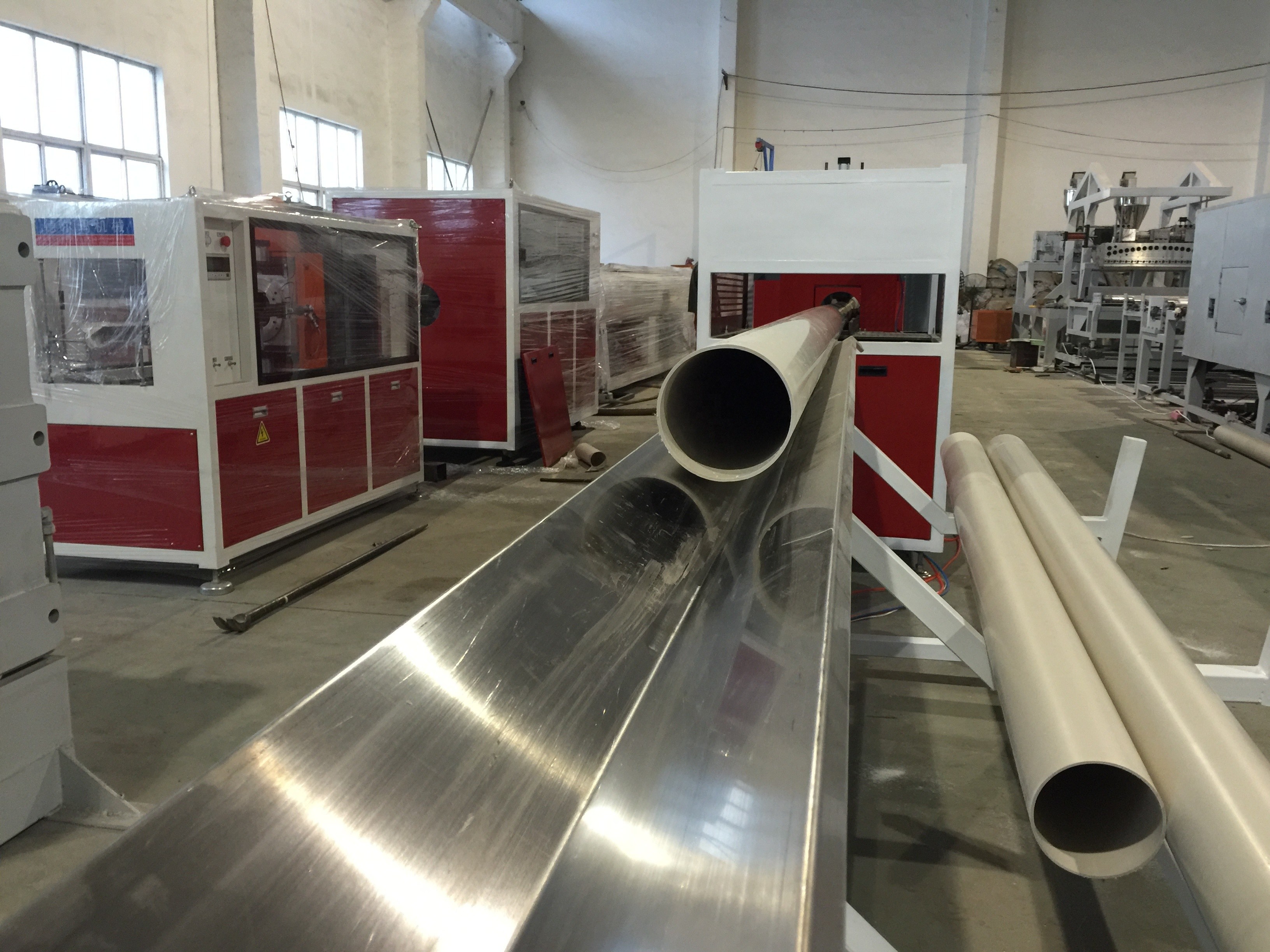

5. Planetary Cutting Machine + 6. Stacker

45kw Power PVC Pipe Making Machine for Multifunctional and Fast Production Speed 4

Auxiliary machine

1. PVC pipe machine- SWP-360 crusher machine

2. PVC pipe machine-Heating &Cooling Mixing unit(We recommend use SRH-300/600 Mixer)-Mix PVC pipe formula

3.500MILLING MACHINE-recycle pipes

4.AUTOMATIC PIPE BELLING MACHINE

Application

The pvc pipe machine produce PVC pipe is mostly used in construction industry water supply, drain,electrical cable coating and under ground sweage treatment and so on.

45kw Power PVC Pipe Making Machine for Multifunctional and Fast Production Speed 5

Welcome u visit us to check our PVC pipe machine quality any time, we have different pipe machine orders in our workshop!

Packaging & Shipping

45kw Power PVC Pipe Making Machine for Multifunctional and Fast Production Speed 6

Certifications

45kw Power PVC Pipe Making Machine for Multifunctional and Fast Production Speed 7

Service & Warranty

Execellent Service-Turnkey Project

DEERMA is committed to providing full support for its local and international clients and dealers and will always provide a prompt response to customer enquiries.

A. Free training for maintenance personnel;

B. Installation service& commissioning by porfessional;

C.The establishment of user fles, a long-term follow-up service and regular return visits;

D. A 24-hour hot-line service ensures the timeliest solution to your faulty equipment.

E.Calling or Door to Door service

F.One year guarantee for whole machine
