PA Corrugated Pipe Machine/PA Corrugated Hose Machine with 38CrMoALA Screw Material and Actual Consumption Power

Basic Information

Minimum Order Quantity:	2 sets
Price:	CN¥180,375.00/sets >=2 sets
Packaging Details:	stretch film for packing
Supply Ability:	10 Set/Sets per Month

Get Best Price Contact Now

Detail Information

Plastic Processed:	PE, PP, PVC, PA	Application:	PIPE
Screw Design:	Single-screw	Screw Material:	38CrMoALA
Screw Diameter (mm):	65 Mm	Screw L/d Ratio:	30:1
Screw Speed (rpm):	150 Rpm	Place Of Origin:	Shandong, China
Brand Name:	DEERMA	Voltage:	380V 3Phase 50HZ Or As Your Demand
Dimension(lwh):	L12W2H2.5m	Power (kw):	35
Warranty:	1 Year	Key Selling Points:	High Productivity
Video Outgoing-inspection:	Provided	Core Components:	Bearing, Motor, Gear, PLC
Machinery Test Report:	Provided	Extrusion Machine:	16-50mm PP/PE/PVC/PA Single Corrugated Pipe Machine
Output Capacity:	80-100 Kg/ Hr	Installed Power:	35kw
Actual Consumption Power:	About 25kw	Motor:	SIEMENS
Inverter:	ABB	Temperature Meter:	OMRON
Contactor:	SCHNEIDER	Production Speed:	8-15m/min
Final Product:	Corrugated Pipe	Condition:	New
Showroom Location:	None	Applicable Industries:	Hotels, Building Material Shops, Home Use
Warranty Of Core Components:	1 Year	Weight:	100000 KG
Highlight:	380v pvc pipe machine , 50hz pvc pipe machine , 380v pvc pipe manufacturers machine

Product Description

16-50mm PP/PE/PVC/PA single corrugated pipe machine production line

Product Description

PP PE PVC electrical wire corrugated pipe making machine

Max line speed 30 meters per minute.

PVC plasticcorrugated pipe machines is made of super quality steel. The module connection is set in the closed machine cavity. The inner and outer side of corrugated pipe is even and smooth.

The forced cooling system can enhance the quality and capacity of product. Corrugated pipes are widely used for wire sleeves, auto, home and medical appliances.

Technial parameters:

Pipe diameter(mm)	4.5-9	9-32	16-50
Extruder model	SJ-30	SJ-50	SJ-65
Screw L/D	30:1	30:1	30:1
Output kg/h	10	30	50
Extruder motor	4	15	18.5
Corrugators power kw	1.1	1.5	2.2
Moulds pairs	42	38,50	50
Cooling mode	Water Cooling and fan cooling
Extruding speed(m/min )	6-10	8-12	8-12
Account number mode	Inducting speed
Winding pipe mode	Automatic winding and manually

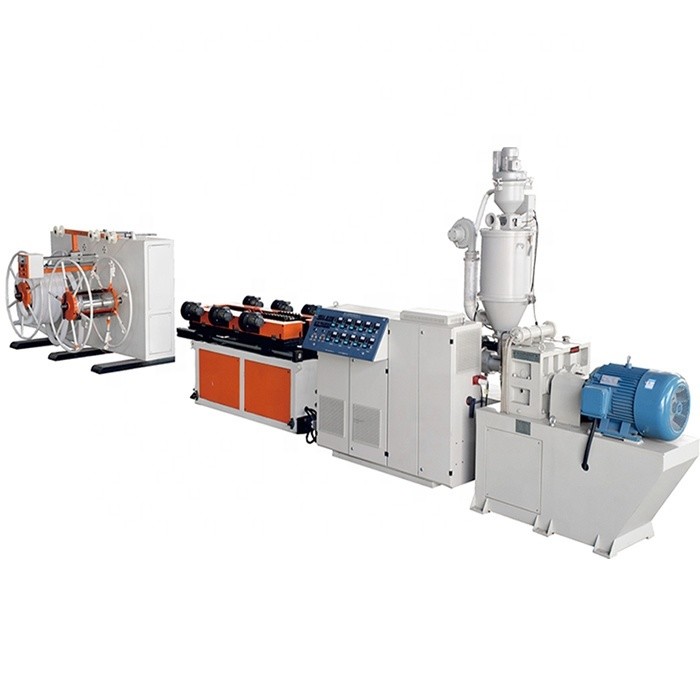

Main mahine list

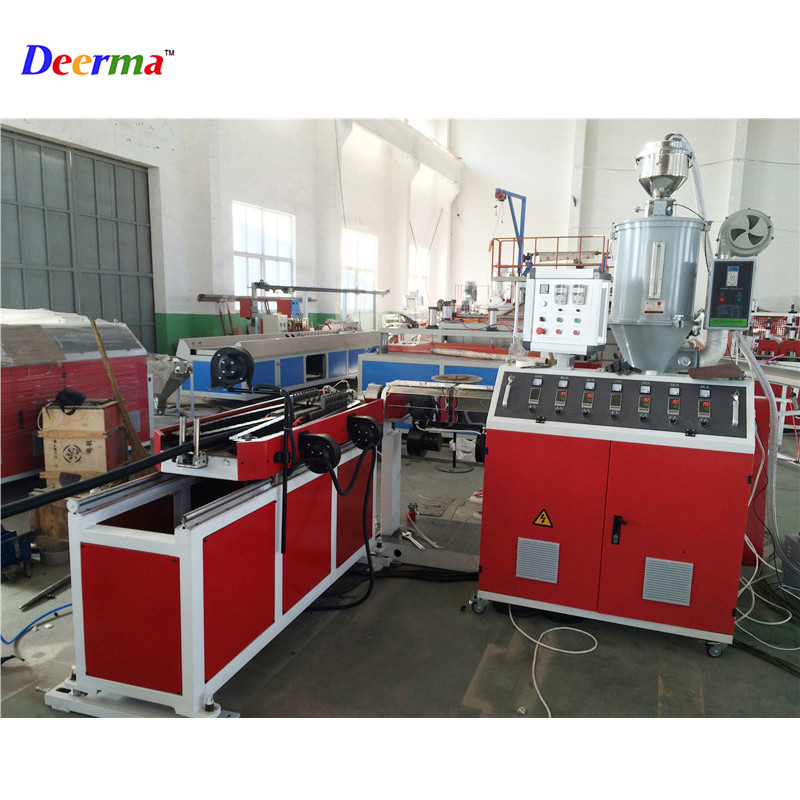

1.SJ-30/50/65 Single Screw Extruder

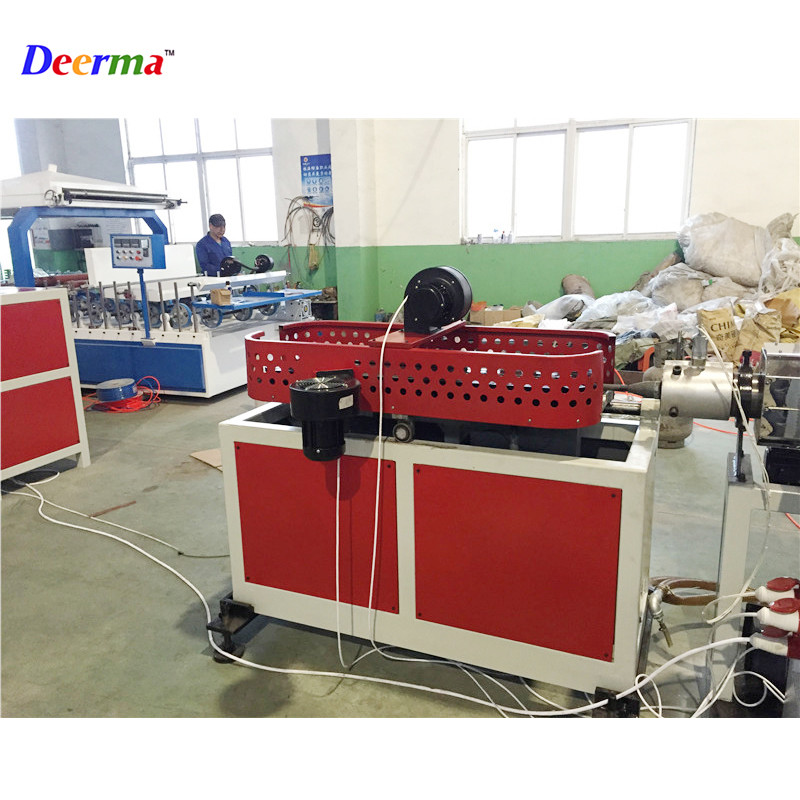

2.Forming machine

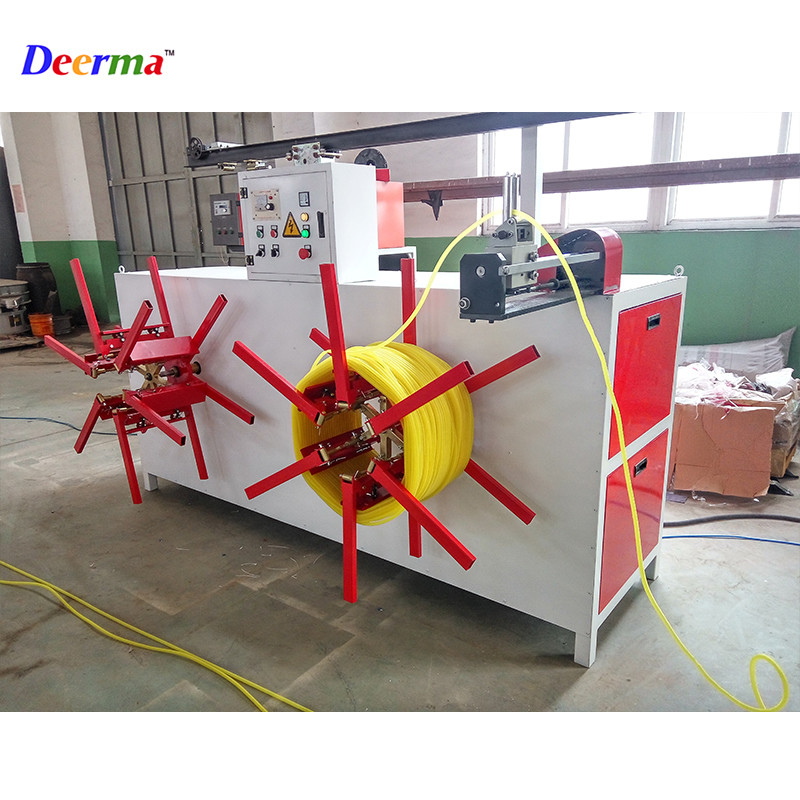

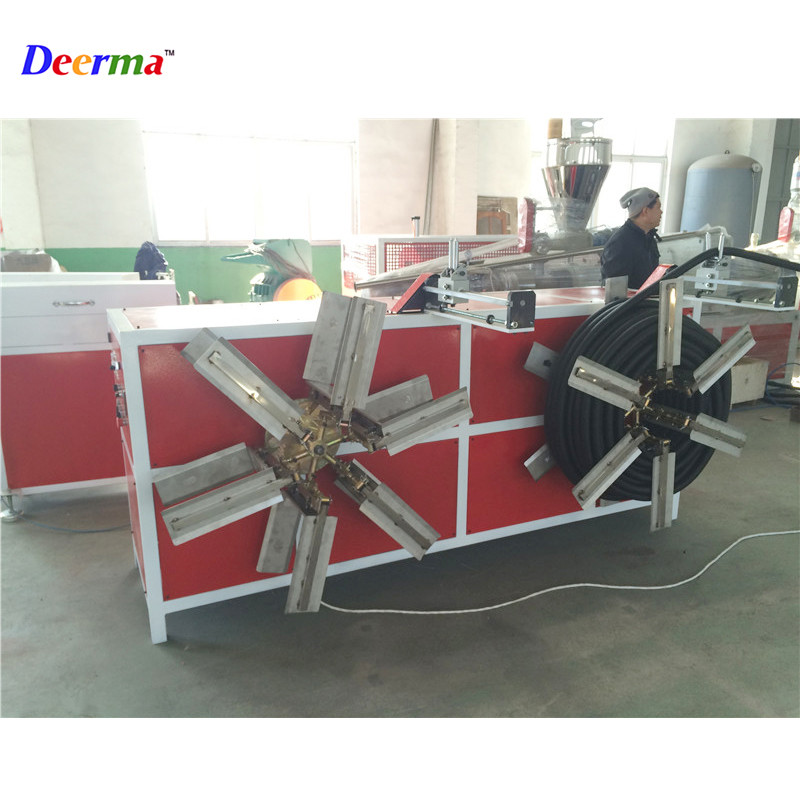

3.Double station winder

4.Vacuum loading device

5.One set mould

Machine Pictures

Output products:

PA Corrugated Pipe Machine/PA Corrugated Hose Machine with 38CrMoALA Screw Material and Actual Consumption Power 6

PA Corrugated Pipe Machine/PA Corrugated Hose Machine with 38CrMoALA Screw Material and Actual Consumption Power 7
