pvc pipe extrusion line / pvc water pipe production line
Product Description
Production Process for pvc pipe line
- (PVC Powder +CACO + additive ) → Mixing (300/600 Mixer Machine)
- SJZ65/132 PVC Pipe Production Line (Extruder - Vacuum Calibration - Haul off - Printer -Cutter- Stacket - Belling)
- Auxiliary Machines (Mixer , Crusher , Printer , Belling ....)
Famous Electric Brand or Customized
- SIEMENS MOTOR
- ABB/DELTA INVERTER
- OMORN TEMPERATURE METER
- SCHNEIDER RELAY /CONTACTOR
PVC PIPE PRODUCTION LINE MACHINE Characteristic
| Pipe range | 20-63mm single | 20-63mm dual | 75-160mm | 110-315mm | 315-630mm |
| Extruder | SJZ51/105 | SJZ65/132 | SJZ80/156 | SJZ80/156 | SJZ92/188 |
| Extruder power | 18.5kw | 37kw | 37kw | 55kw | 110kw |
| Extrusion capacity | 120kg/h | 250kg/h | 250kg/h | 360kg/h | 800kg/h |
| Max. Production speed | 12m/min | 10m/min | 6 m/min | 3 m/min | 1.2m/min |
SJSZ65/132 PVC Pipe Machine which can produce 75-160mm & 75-200mm & 20-110mm pvc pipe

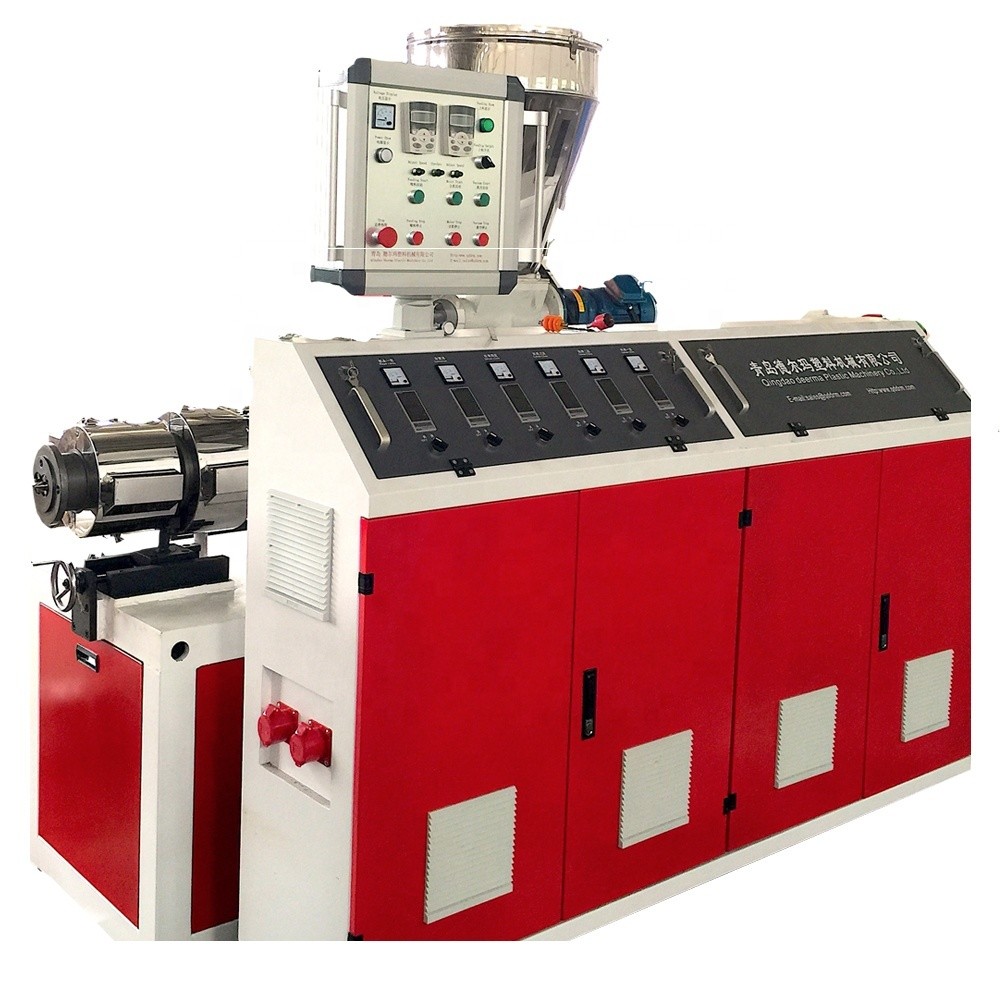

| SJZ65/132 twin screw extruder | Screw diameter | 65/132mm |
| Machine barrel and screw material | 38CrMoAlA Nitriding treatment |
| Main motor power | 37KW SIEMENS BEIDE |
| Contactor and breaker | Schneider or Siemens |
| Mould | Including | calibration sleeve |
| Material | Made by 40Cr.
Inner surface polished |

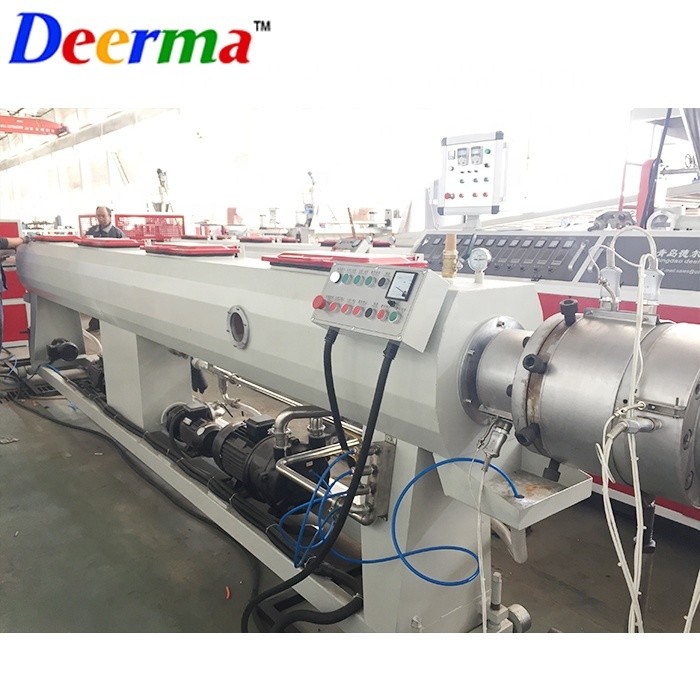

| Vacuum Calibration Tank | Vacuum pump power | 5.5KW |
| Water pump power | 4KW×2units |
| Haul Off (2 claws) | Motor power | 2.2KW |
| traction | 25000N |
| The range of pulling pipe diameter | 75-160mm |

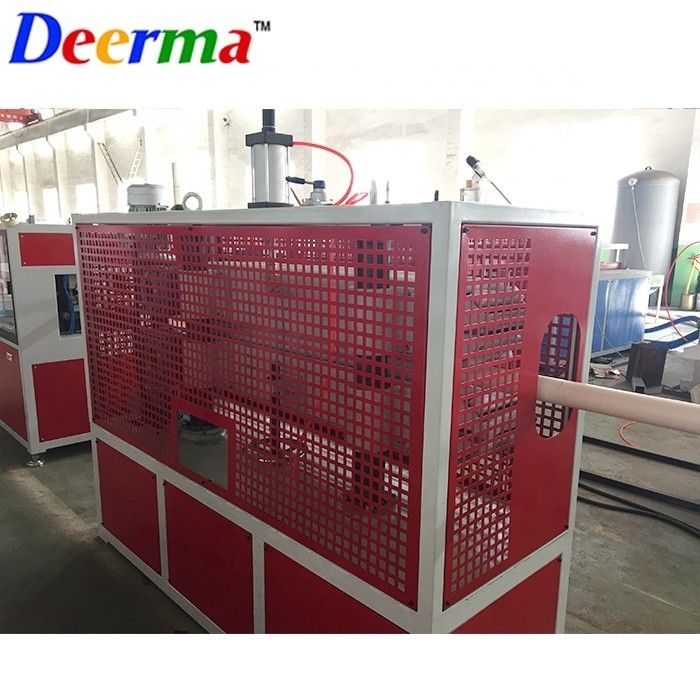

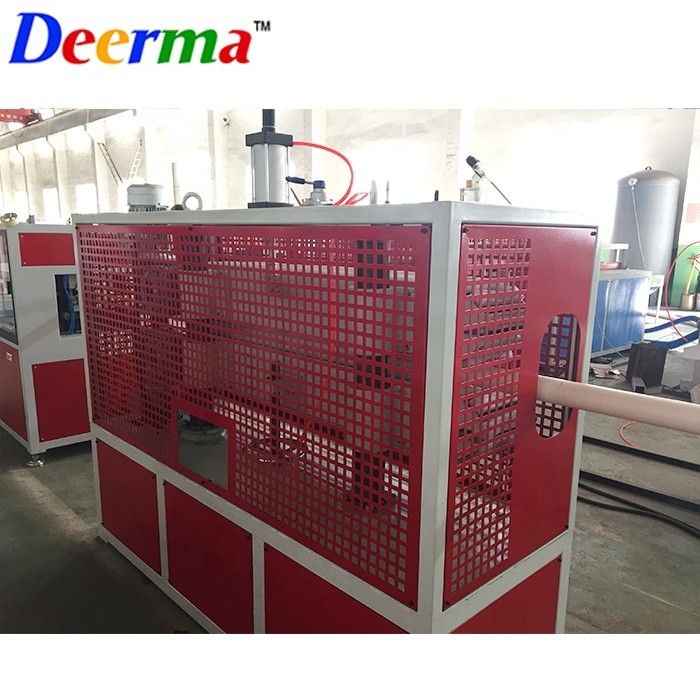

| Lift Cutter | Saw motor | 2.2KW |
| blower | 1.5KW |
| The range of cutting pipe diameter | 75-160mm |
| Stacker | Length | 6,000mm |
| Control action | Pneumatic |
| Uses the stainless steel work mesa, automatic rollover fell material |

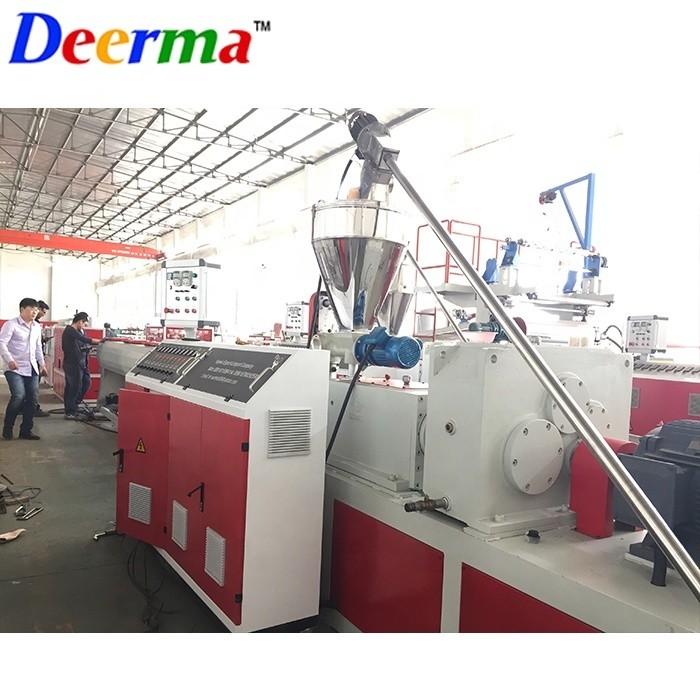

Pictures of Whole Production Line
Company Information
DEERMA - Trade Assurance Limit : US $172,000
1.100% Product quality protection
If the product quality does not meet the standards set in your contract, Alibaba.com will refund the covered amount of your payment.
2.100% On-time shipment protection
If your products are not shipped on time as per your contract, Alibaba.com will refund the cover amount of your payment.
3.100& Payment protection
If the supplier breaks the on-time shipment or product quality terms of your contract, Alibaba.com will refund the covered amount of your payment
| Certification | Certified By | Certificate No. | Business Scope Expiry Dat | Expiry Date |
| ISO 9001:2008 | Beijing Hangxie Certification
Center Co., Ltd.,
CNAS |
03413Q21640R1M
| Design and Production of
Single-Screw Plastic Extruders
and Conical Twin-Screw
Plastic Extruders | 17/Sep./2013
16/Sep./2016 |
| CE | EuropeanInspection and
Certification
Company S.A. | CN.CE.0680-10/10 | Plastic Extrusion Machinery &
SJ-30, SJ-45, SJ-65, SJ-90,
SJ-120, SJ-150, SJ-180,
SJ-200, SJSZ-51/105,
SJSZ-65/132, SJZS-80/156,
SJSZ-92/188 | 29/Oct./2010
28/Oct./2015 |
| TUV | TÜV Rheinland | 7467484_P+T | Production & Trade Assessment | 15/Jan./2014 14/Jan./2015 |
| Main Product Lines Verification Report | TÜV Rheinland | 7467487_P+T | Main Product Lines Verification | 15/Jan./2014 14/Jan./2015 |
| SGS | SGS-CSTC Standards Technical Services Co.,Ltd
Focus Technology Co., Ltd | QIP-ASR155278 | Extrusion Machine, Pipe Machine ,profile Machine, Roof Machine… | 15/May./2015 |
After-Sales Service
Execellent Service-Turnkey Project
DEERMA is committed to providing full support for its local and international clients and dealers and will always provide a prompt response to customer enquiries.
A. Free training for maintenance personnel;
B. Installation service& commissioning by porfessional;
C.The establishment of user fles, a long-term follow-up service and regular return visits;
D. A 24-hour hot-line service ensures the timeliest solution to your faulty equipment.
E.Calling or Door to Door service
F.One year guarantee for whole machine
FAQ
Q: Your company is an industrial manufacture factory or a transactional company ?
A: Deerma Company is an industry manufacture of Extrusion Machines.
Q:All of your products are made by your self or compacted via purchasing the others?
A: we have independent technical team who focus on design & development & Manufacture extrusion machines. all the products are made by our technical team.
Q:Annual Production Capacity( Previous Year)
A: About 80 lines from 2014.1 to 2014.12 and total revenue is about USD 2500000
Q: Quality Control Management
Q: Is there quality control on all production lines?
Yes, all production lines have adequate quality control
Q:Do the QA/QC inspectors work independently from the production line? Yes
Q:How many QA/QC inspectors in total? 4
