Detail Information

Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Core Components:	Engine, Bearing, Gear, Pump	Type:	Pipe Production Line
Pipe Material:	PVC	Application:	Drain Pipe
Voltage:	220/380/415/420/440V Or Customized	Power(w):	80kw / 60kw
Dimension(LWH):	26m2m2m	Weight:	8 Kg
Warranty:	1 Year	Key Selling Points:	High Productivity
Machine Name:	Electrical Cable PVC Pipe Manufacturing Machine	Extruder:	SJZ51
PVC Pipe Diameter:	16-63mm	Tractor Speed:	0.8-10m/min
Capacity:	70kg/h - 120kg/h	Main Motor:	SIEMENS BEIDE 22 Kw
Contactor:	SIEMENS	Inverter:	ABB/DELTA/SIEMENS
Temperature Controller:	Omron FROM JAPAN	Guarantee Period:	12 Months
Highlight:	440v pvc pipe machine , 60kw pvc pipe machine , 440v pvc pipe manufacturing machine

Product Description

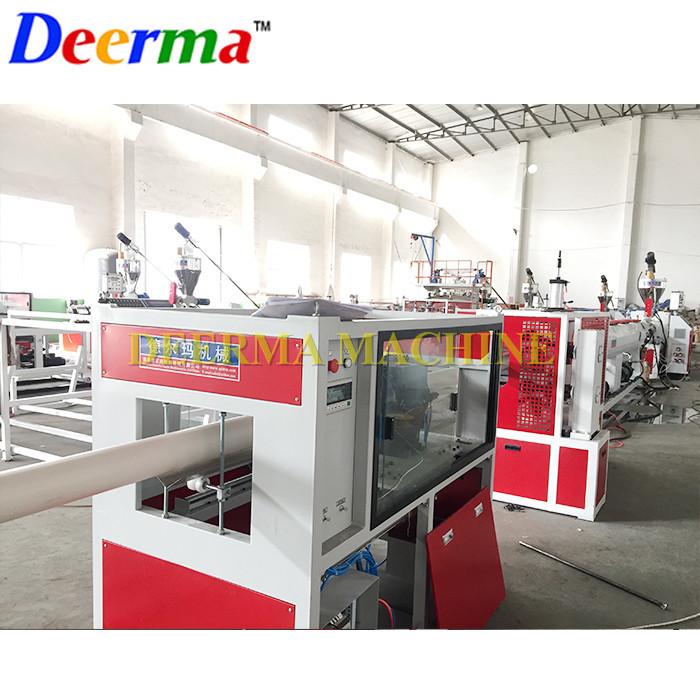

Production Process

Screw Loader for Mixer→ Mixer unit→ Screw Loader for Extruder→ Twin conical screw extruder → Mould → Vacuum Calibration Tank → Haul-off → Planetary Cutter → Belling machine/ Stacker → Final Product Inspecting &Packing.

1. (PVC Powder +CACO + additive ) → Mixing (300/600 Mixer Machine)
2. SJZ65/132 PVC Pipe Production Line (Extruder - Vacuum Calibration - Haul off - Printer -Cutter- Stacket - Belling)
3.Auxiliary Machines (Mixer , Crusher , Printer , Belling ....)

SPECIFICATIONS FOR PVC TWIN PIPE MACHINE (16-63MM)
PVC Pipe Diameter	16-40mm dual	20-63mm dual
Extruder mode	SJZ51/105	SJZ65/132
Extruder power	18.5kw AC	37kw AC
Line Speed	0.5-10 m/min	0.5-15 m/min
Max Capaity	120kg/h	250kg/h

SPECIFICATIONS FOR PVC PIPE MACHINE (16-630MM)
PVC Pipe Diameter	20-63mm	75-200mm	160-315mm	315-630mm
Extruder mode	SJZ51/105	SJZ65/132	SJZ80/156	SJZ92/188
Extruder power	18.5kw AC	37kw AC	55kw AC	110kw AC
Line Speed	0.5-10 m/min	0.5-8 m/min	0.5-6 m/min	0.5-4 m/min
Max capacity	120kg/h	250kg/h	350kg/h	600kg/h

Application for PVC Pipe

1).Water supply, drainage pipelines in building;
2).Rainwater drainage pipelines in building;
3).Electrical wiring pipe in building;
4).Air conditioning condensate water systems.

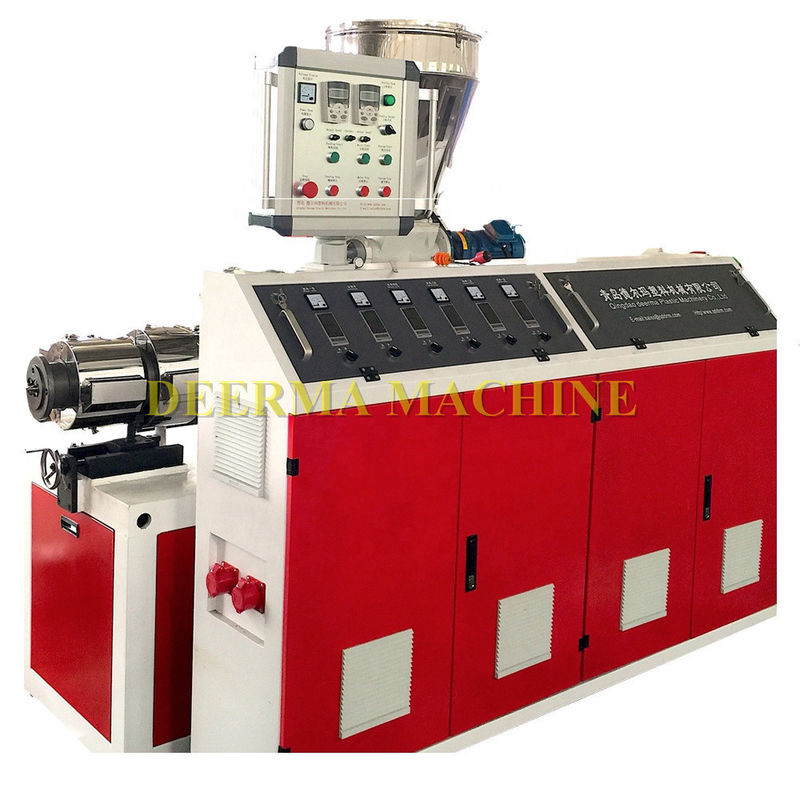

SJZ-XX Twin Screw Extruder

1. Main Motor : SIEMENS BEIDE

2. Gearbox & Distributor case : GUOMAO

3. Screw & Barrel : ZHOUSHAN

4. Temperature meter : OMRON

5. Inverter: ABB

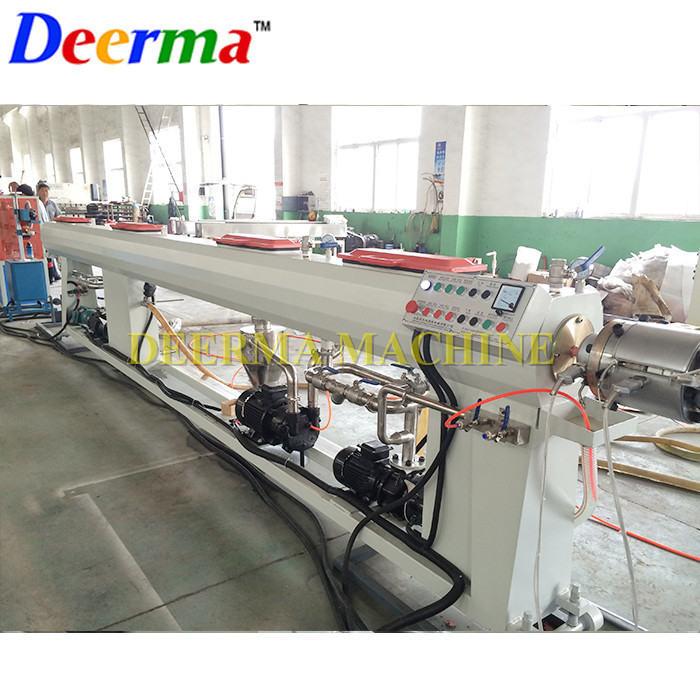

Vacuum Calibration Unit

1.Tank materials: 4mm 304 S. S.Materials
2.Water temperature and level controlling technology;
3.High pressure and stable water jet.
4.Pressure protection design

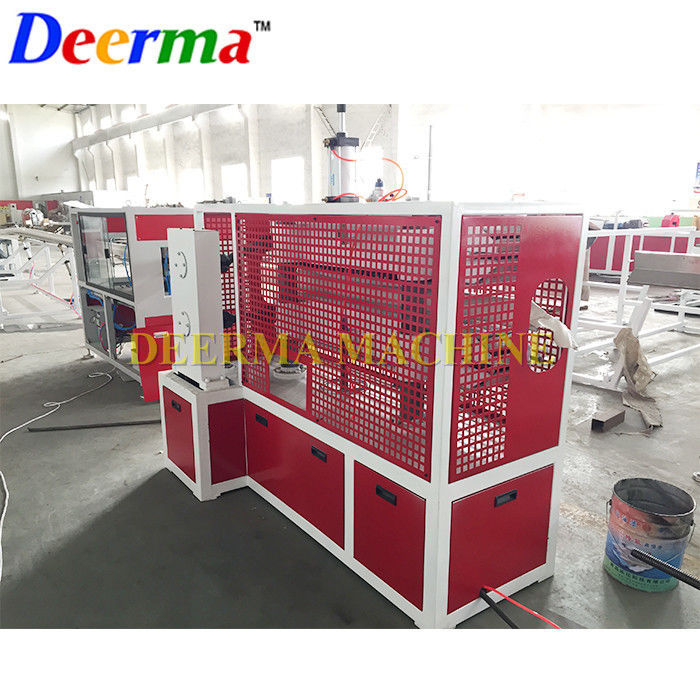

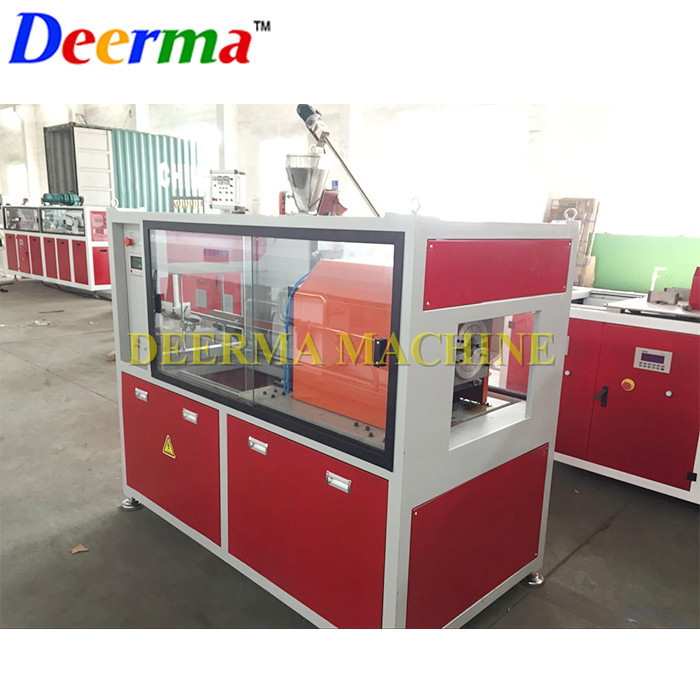

Haul- off unit & Cutter Unit

1.Tractor motor speed control:frequency control

2.Traction speed: 0.5-8m /min

3.Cutting way:Saw cutting

4.Clamping move:Manual operated

Stacker

1. Material : Stainless Steel

2. Air operator turn over

3.Automatically pushes the material, decides long cuts

Packing & Delivery

Packing Details

1.Mold package: Wooden package.
2.Outside package:Stretch film
3.Loading Qty : 1x40GP for one production line (PVC Pipe Machine)
Delivery Details

30-45 days after received deposit

Certifications

Certification	Certified By	Certificate No.
ISO 9001:2008	Beijing Hangxie Certification Center Co., Ltd.,CNAS	03413Q21640R1M
CE	European Inspection and Certification Company S.A.	CN.CE.0680-10/10
TUV	TÜV Rheinland	7467484_P+T
SGS	SGS-CSTC Standards Technical Services Co.,Ltd	QIP-ASR155278
Main Product Lines Verification	TÜV Rheinland	7467487_P+T

Our Service

Pre-Sales Service

1.Inquiry and consulting support.
2.Sample testing support.
3.View our Factory

After-Sales Service

1.Training how to instal the machine, training how to use the machine.
2.Engineers available to service machinery overseas.

20-63mm PVC Pipe Machine

20-63mm PVC Double Pipe Machine

PVC Pipe Machine
