Detail Information

Plastic Processed:	PVC	Application:	PIPE, Profile, Plates
Screw Design:	Single-screw	Screw Material:	38CrMoALA
Screw Diameter (mm):	65 Mm	Screw L/d Ratio:	30:1
Screw Speed (rpm):	60 Rpm	Place Of Origin:	Shandong, China
Brand Name:	DEERMA	Voltage:	380V 3Phase 50HZ Or As Your Demand
Dimension(lwh):	L12W2H2.5m	Power (kw):	35
Warranty:	1 Year	Key Selling Points:	High Productivity
Video Outgoing-inspection:	Provided	Core Components:	Bearing, Pump, Gear, Engine
Machinery Test Report:	Provided	Extrusion Machine:	Corrugated Pvc Pipe Production Line Pvc Plastic Pipe Making Machinery
Output Capacity:	80-100 Kg/ Hr	PVC Corrugated Pipe:	(12mm,16mm,20mm,25mm,32mm,40mm,50mm)
Installed Power:	35kw	Actual Consumption Power:	About 25kw
Motor:	SIEMENS	Inverter:	ABB
Temperature Meter:	OMRON	Contactor:	SCHNEIDER
Production Speed:	8-15m/min	Condition:	New
Showroom Location:	Egypt, Peru, India, Russia, Thailand, Kenya, South Korea, Romania, South Africa	Applicable Industries:	Hotels, Building Material Shops, Restaurant, Home Use, Food Shop
Warranty Of Core Components:	1 Year	Weight:	6 KG
Highlight:	high productivity pvc pipe extrusion line , high productivity pvc pipe production line , 16mm pvc pipe extrusion line

Product Description

corrugated pvc pipe production line pvc plastic pipe making machinery

Product Description

PP PE PVC electrical wire corrugated pipe making machine

Max line speed 30 meters per minute.

PVC plasticcorrugated pipe machines is made of super quality steel. The module connection is set in the closed machine cavity. The inner and outer side of corrugated pipe is even and smooth.

The forced cooling system can enhance the quality and capacity of product. Corrugated pipes are widely used for wire sleeves, auto, home and medical appliances.

Technial parameters:

Pipe diameter(mm)	4.5-9	9-32	16-50
Extruder model	SJ-30	SJ-50	SJ-65
Screw L/D	30:1	30:1	30:1
Output kg/h	10	30	50
Extruder motor	4	15	18.5
Corrugators power kw	1.1	1.5	2.2
Moulds pairs	42	38,50	50
Cooling mode	Water Cooling and fan cooling
Extruding speed(m/min )	6-10	8-12	8-12
Account number mode	Inducting speed
Winding pipe mode	Automatic winding and manually

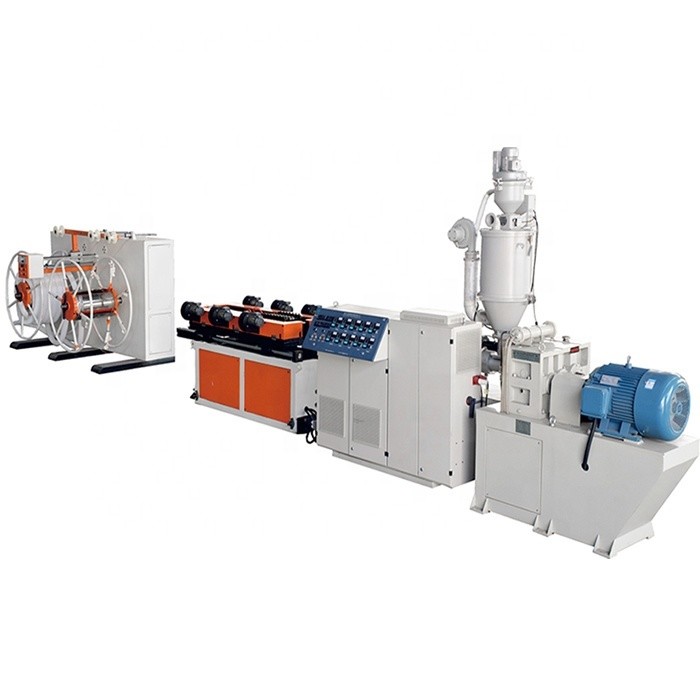

Main mahine list

1.SJ-30/50/65 Single Screw Extruder

2.Forming machine

3.Double station winder

4.Vacuum loading device

5.One set mould

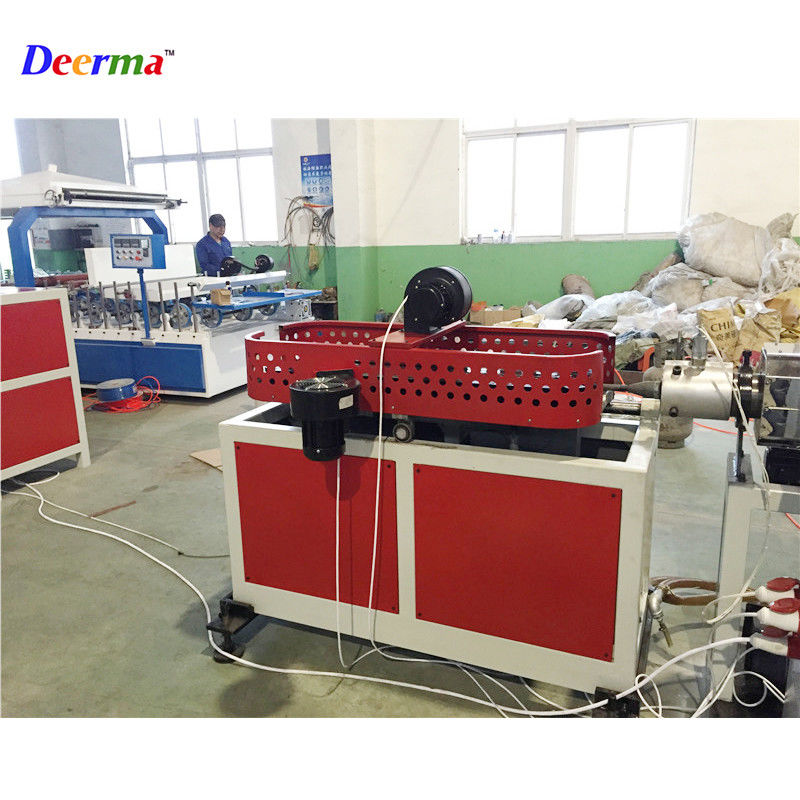

Machine Pictures

Output products:

High Productivity Corrugated Pvc Pipe Production Line Pvc Plastic Pipe Making Machinery with Inverter ABB 6

High Productivity Corrugated Pvc Pipe Production Line Pvc Plastic Pipe Making Machinery with Inverter ABB 7
