OMRON Temperature Meter Pvc Single Wall Corrugated Pipe Plant with Production and 4 KG Capacity

Basic Information

Price:	CN¥180,375.00/sets >=1 sets

Get Best Price Contact Now

Detail Information

Plastic Processed:	PVC	Application:	PIPE, Profile, Plates
Screw Design:	Single-screw	Screw Material:	38CrMoALA
Screw Diameter (mm):	65 Mm	Screw L/d Ratio:	30:1
Screw Speed (rpm):	60 Rpm	Place Of Origin:	Shandong, China
Brand Name:	DEERMA	Voltage:	380V 3Phase 50HZ Or As Your Demand
Dimension(lwh):	L12W2H2.5m	Power (kw):	15
Warranty:	1 Year	Key Selling Points:	High Productivity
Video Outgoing-inspection:	Provided	Core Components:	Bearing, Pump, Gear, Engine
Machinery Test Report:	Provided	Extrusion Machine:	Pvc Single Wall Corrugated Pipe Plant
Output Capacity:	80-100 Kg/ Hr	PVC Corrugated Pipe:	(12mm,16mm,20mm,25mm,32mm,40mm,50mm)
Installed Power:	35kw	Actual Consumption Power:	About 25kw
Motor:	SIEMENS	Inverter:	ABB
Temperature Meter:	OMRON	Contactor:	SCHNEIDER
Production Speed:	8-15m/min	Condition:	New
Showroom Location:	Egypt, Peru, India, Russia, Thailand, Kenya, South Korea, Algeria, South Africa, Nigeria	Applicable Industries:	Hotels, Building Material Shops, Home Use
Warranty Of Core Components:	1 Year	Weight:	4 KG
Highlight:	16mm pvc pipe machine , 20mm pvc pipe machine , 16mm pvc pipe manufacturers machine

Product Description

pvc single wall corrugated pipe plant /pvc corrugated pipe making machine

Product Description

PVC plasticcorrugated pipe machines is made of super quality steel. The module connection is set in the closed machine cavity. The inner and outer side of corrugated pipe is even and smooth.

The forced cooling system can enhance the quality and capacity of product. Corrugated pipes are widely used for wire sleeves, auto, home and medical appliances.

Technial parameters:

Pipe diameter(mm)	4.5-9	9-32	16-50
Extruder model	SJ-30	SJ-50	SJ-65
Screw L/D	30:1	30:1	30:1
Output kg/h	10	30	50
Extruder motor	4	15	18.5
Corrugators power kw	1.1	1.5	2.2
Moulds pairs	42	38,50	50
Cooling mode	Water Cooling and fan cooling
Extruding speed(m/min )	6-10	8-12	8-12
Account number mode	Inducting speed
Winding pipe mode	Automatic winding and manually

Main mahine list

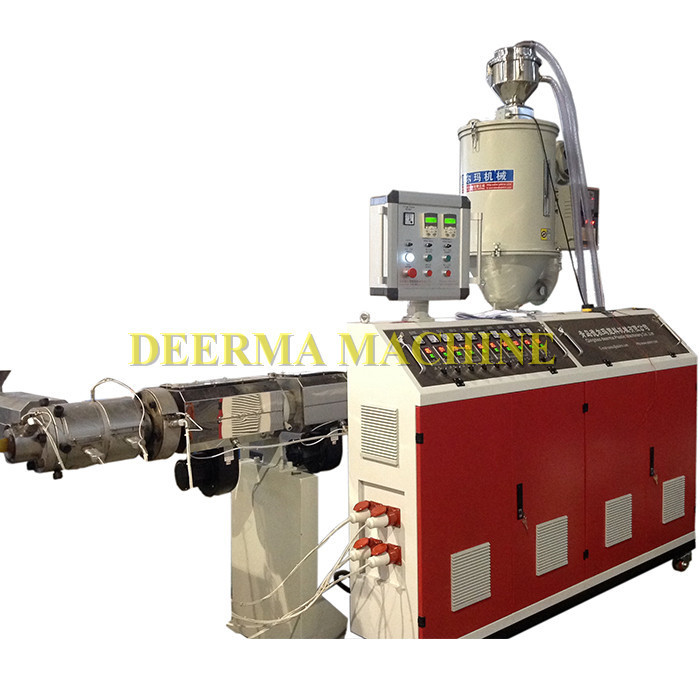

1.SJ-30/50/65 Single Screw Extruder

2.Forming machine

3.Double station winder

4.Vacuum loading device

5.One set mould

OMRON Temperature Meter Pvc Single Wall Corrugated Pipe Plant with Production and 4 KG Capacity 0

Output products:

OMRON Temperature Meter Pvc Single Wall Corrugated Pipe Plant with Production and 4 KG Capacity 1

Certifications

OMRON Temperature Meter Pvc Single Wall Corrugated Pipe Plant with Production and 4 KG Capacity 2
