Detail Information

Name:	PVC Pipe Machine	Plastic Processed:	PVC
Application:	PIPE, Profile, Plates	Screw Design:	Double-screw
Twin Screw Type:	Counter-rotating Conical Twin-screw	Screw Material:	38CrMoALA
Screw Diameter (mm):	65	Screw L/d Ratio:	30:1
Screw Speed (rpm):	60 Rpm	Place Of Origin:	Shandong, China
Brand Name:	Deerma	Voltage:	380V/3P/50HZ Or As Local Voltage
Dimension(lwh):	L20000W2100H2600mm	Power (kw):	160
Warranty:	1 Year	Key Selling Points:	High Productivity
Video Outgoing-inspection:	Provided	Core Components:	Bearing, Pump, Gear, Engine
Machinery Test Report:	Provided	Plastic Machine:	Pvc Pipe Production Line
Product Application:	Pvc Water Pipe , Pvc Garden Pipe , Pvc Electric Pipe	PVC Double Pipe Diameter:	20-63mm Or 20-40mm
Haul-off Speed:	0.8-10 M /min	Output Capacity:	80-160kg/h
Drive Motor:	SIEMENS	Inveter:	SIEMENS /ABB / DELTA
Temperature Controller:	OMRON	Operator:	1-2 Persons Per Shift
Power:	22kw	Condition:	New
Showroom Location:	Egypt, Peru, India, Russia, Thailand, Kenya, South Korea, Algeria, Romania, South Africa	Applicable Industries:	Hotels, Farms, Home Use, Food Shop, Construction Works
Warranty Of Core Components:	1 Year	Weight:	8 KG
Highlight:	22kw PVC Pipe Machine , PVC Pipe Machine 20mm , 40mm Counter Rotating Extruder

Product Description

20-63mm Or 20-40mm PVC Double Pipe Production Line Featuring Counter-Rotating Conical Twin-Screw

Technical Parameters of pvc pipe production line

PVC Pipe Diameter(mm)	16-40mm dual pipe	20-63mm dual pipe	20-63mm	75-200mm	160-315 mm	315-630 mm
Extruder	SJZ51/105	SJZ65/132	SJZ51/105	SJZ65/132	SJZ80/156	SJZ92/188
Extruder power (kw)	18.5AC	37AC	18.5AC	37AC	55AC	110DC
linespeed (m/min)	0.5-10	0.5-15	0.5-10	0.5-8	0.5-6	0.5-4
capacity (kg/h)	120	250	80-120	180-250	280-350	500-600

Famous Brand Show

SIEMENS MOTOR
ABB/DELTA INVERTER
OMORN TEMPERATURE METER
SIEMENS RELAY /CONTACTOR
GUOMAO Gear Box....

Testing Videos

PVC PIPE MACHINE

https://youtu.be/6vYFRSRhejY?list=PL5C0xwixgXY8Ldjujy1LsvGPKNjatQ9rs

https://youtu.be/3nOgfKQ46vs?list=PL5C0xwixgXY8Ldjujy1LsvGPKNjatQ9rs

https://youtu.be/P1VGR423OY8

PVC DOUBLE PIPE MACHINE

https://youtu.be/nlb9TqWCKGI?list=PL5C0xwixgXY8Ldjujy1LsvGPKNjatQ9rs

https://youtu.be/P1VGR423OY8

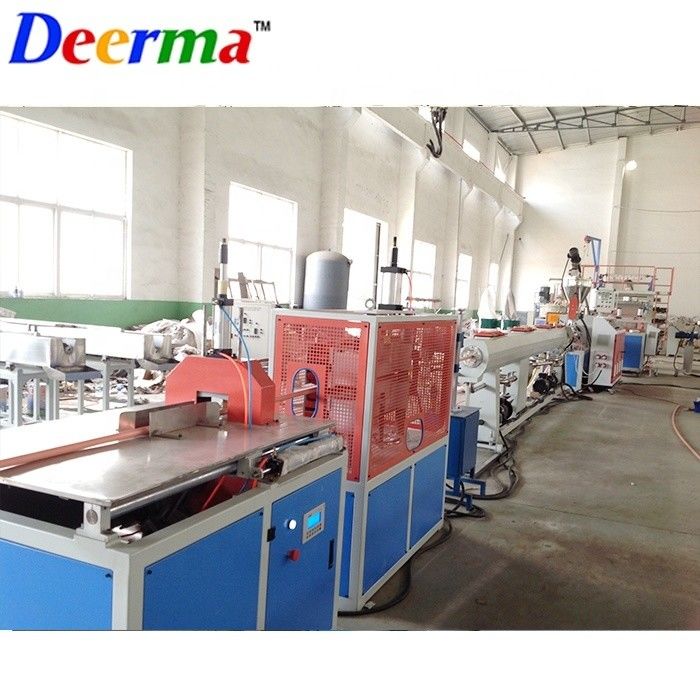

Main Composition & Pictures of pvc pipe production line

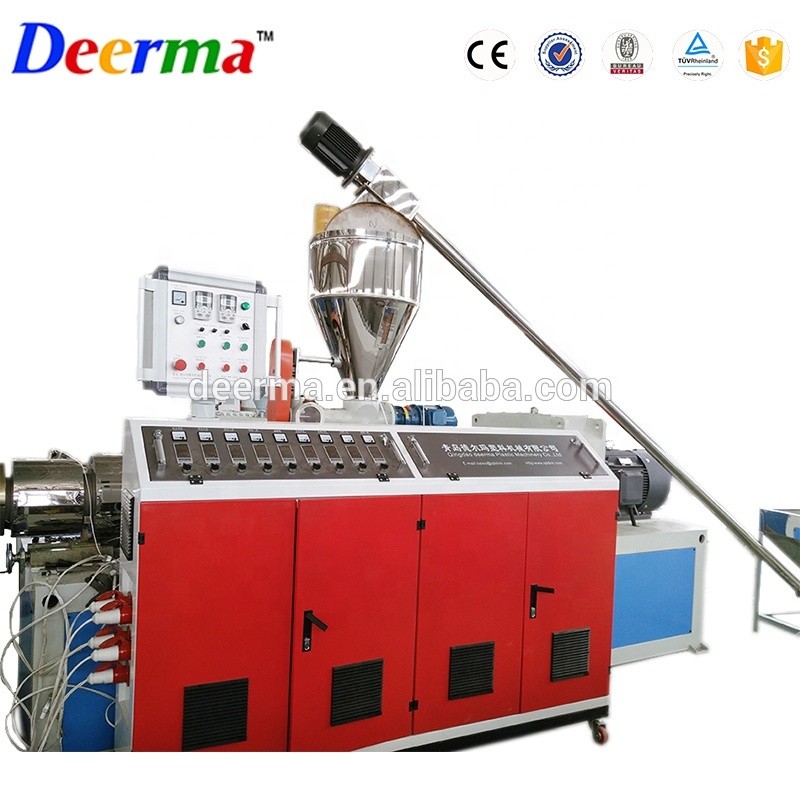

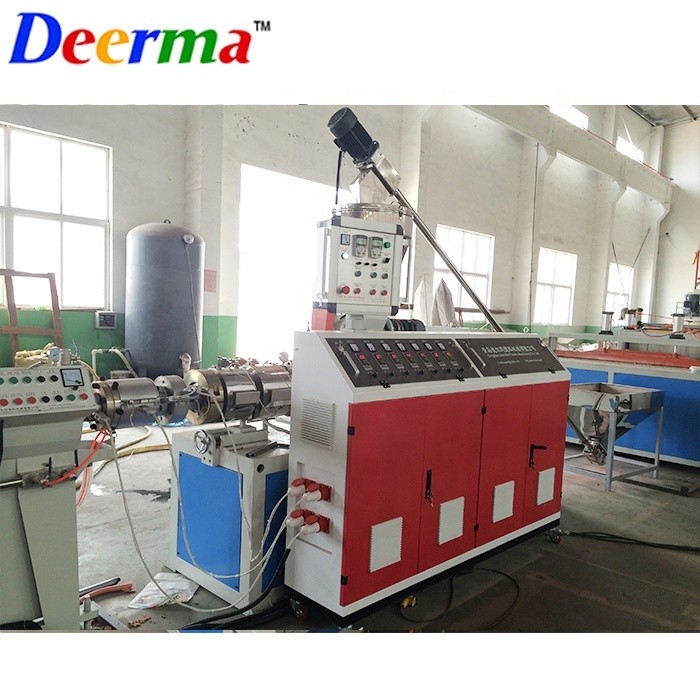

♥ SJZ51/105 or SJZ65/132 Conical Twin Screw Extruder with automation feeding unit

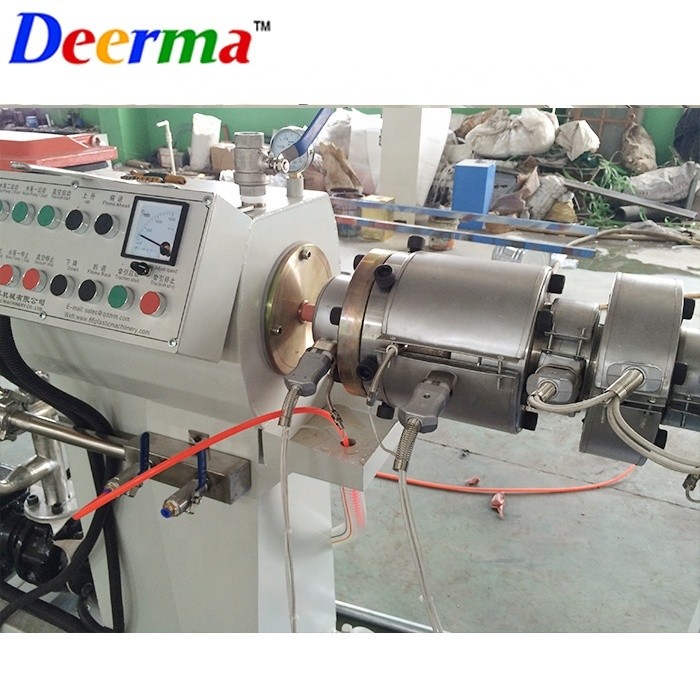

♥ Die head and Mould

22kw PVC Pipe Machine 20mm - 63mm 20mm - 40mm Counter Rotating Extruder 1

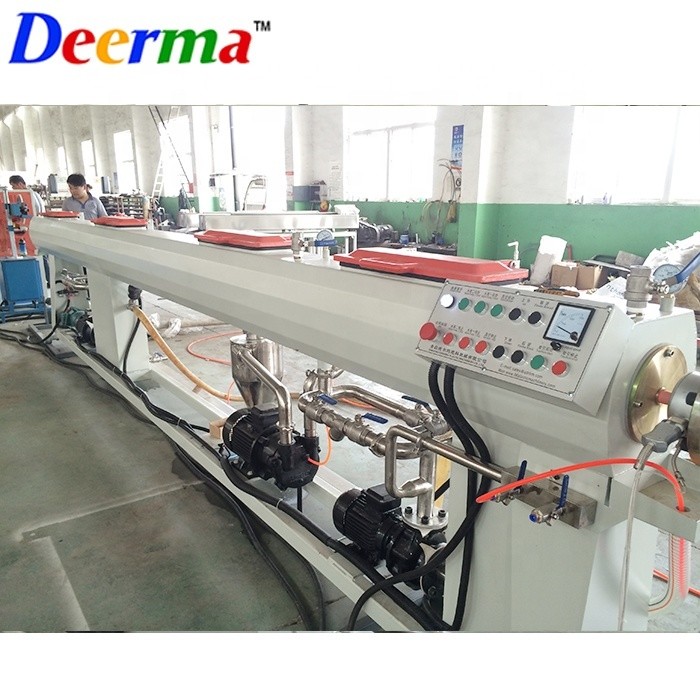

♥ Vacuum Calibration Tank

22kw PVC Pipe Machine 20mm - 63mm 20mm - 40mm Counter Rotating Extruder 2

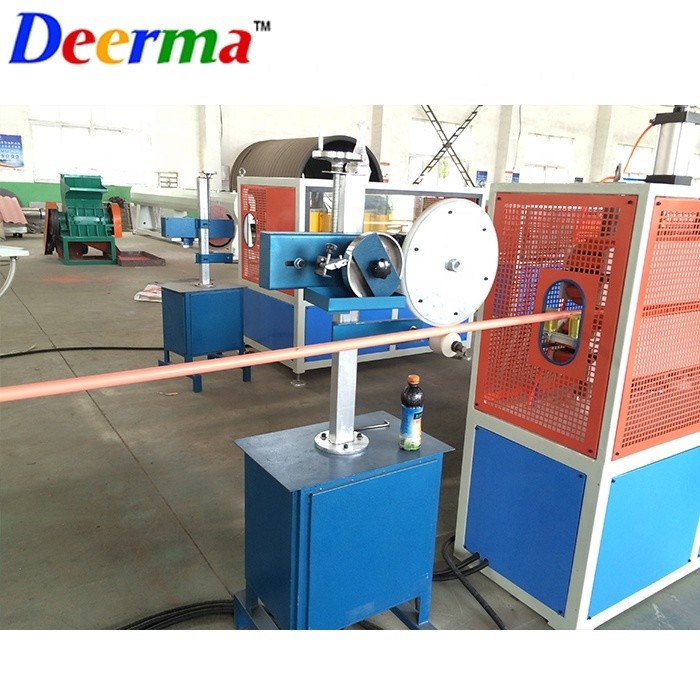

♥ Haul-off Unit

22kw PVC Pipe Machine 20mm - 63mm 20mm - 40mm Counter Rotating Extruder 3

♥ Cutter Unit

22kw PVC Pipe Machine 20mm - 63mm 20mm - 40mm Counter Rotating Extruder 4

Certifications

Certification	Certified By	Certificate No.	Business Scope Expiry Dat
ISO 9001:2008	Beijing Hangxie Certification Center Co., Ltd., CNAS	03413Q21640R1M	Design and Production of Single-Screw Plastic Extruders and Conical Twin-Screw Plastic Extruders
CE	EuropeanInspection and Certification Company S.A.	CN.CE.0680-10/10	Plastic Extrusion Machinery & SJ-30, SJ-45, SJ-65, SJ-90, SJ-120, SJ-150, SJ-180, SJ-200, SJSZ-51/105, SJSZ-65/132, SJZS-80/156, SJSZ-92/188
TUV	TÜV Rheinland	7467484_P+T	Production & Trade Assessment
Main Product Lines Verification Report	TÜV Rheinland	7467487_P+T	Main Product Lines Verification
SGS	SGS-CSTC Standards Technical Services Co.,Ltd Focus Technology Co., Ltd	QIP-ASR155278	Extrusion Machine, Pipe Machine ,profile Machine, Roof Machine…

Our Services

1.Our company will provide relevant information on various technology and business consulted by customers. If clients want to visit our company, we will offer all they need for convenience.

2.After cooperation, our company designs groundsill installation chart for water, electricity and gas of equipment basing on real condition and customers’ requirements and provides detail order list and matching manufacturer for reference for customer.

3.After equipment arrival, our company will arrange professional technicians to buyer's factory for installing machines and train workers till customers can operate independently and manufactures eligible product.

4.Deerma machinery will be responsible for changing broken parts within warranty and then provide parts only with pure cost.

FAQ

QYour company is an industrial manufacture factory or a transactional company

AIndustrial Manufacture of Extrusion Machine

QAll of your products are made by your self or compacted via purchasing the others

AWe have independent technical team who focus on design & development & manufacture extrusion

QAnnual Production Capacity(Previous Year)

AAbout 80 lines from 2015.1 to 2015.12 and total revenue is about USD 2500000

QIs there quality control on all produciton lines?

AYes, all production lines have adequate quality control

QCan I get the pre-production sample ?

AYes, we will send you pp sample, after you confirm, then we will start production.

QDo the AC/QC inspectors work independently from the production line?

A Yes

QHow many AC/QC inspectors in total ?

A 4

QHow about the quality guarantee period?

AOne year
