Detail Information

Name:	PVC Pipe Machine	Plastic Processed:	PVC
Application:	PIPE, Profile, Plates	Screw Design:	Double-screw
Twin Screw Type:	Counter-rotating Conical Twin-screw	Screw Material:	38CrMoALA
Screw Diameter (mm):	65	Screw L/d Ratio:	30:1
Screw Speed (rpm):	55 Rpm	Place Of Origin:	Shandong, China
Brand Name:	Deerma	Voltage:	380v 50HZ 3P
Dimension(lwh):	According To Model	Power (kw):	15
Warranty:	1 Year	Key Selling Points:	High Productivity
Video Outgoing-inspection:	Provided	Core Components:	Bearing, Pump, Gear, Engine
Machinery Test Report:	Provided	Machine Name:	Pvc Pipe Making Machine /plastic Machine
Temperature Controller:	Omron	Contactor:	Simens
Extruder:	Twin Screw Extruder	Inverter:	ABB
Relay:	Schneider	Warranty:	12 Month .
Pipe Diameter:	16-630mm	Automatic Grade:	Fully Automatic
Power:	According To Model	Condition:	New
Showroom Location:	Egypt, Peru, India, Russia, Thailand, Kenya, South Korea, Algeria, Romania, South Africa	Applicable Industries:	Hotels, Farms, Home Use, Food Shop, Construction Works
Warranty Of Core Components:	1 Year	Weight:	4 KG
Highlight:	16mm PVC Pipe Machine , 630mm PVC Pipe Machine , 15kw PVC Profile Making Machine

Product Description

30 1 Screw L/D Ratio Profile PVC Pipe Making Machine For Plastic Processing Requirements

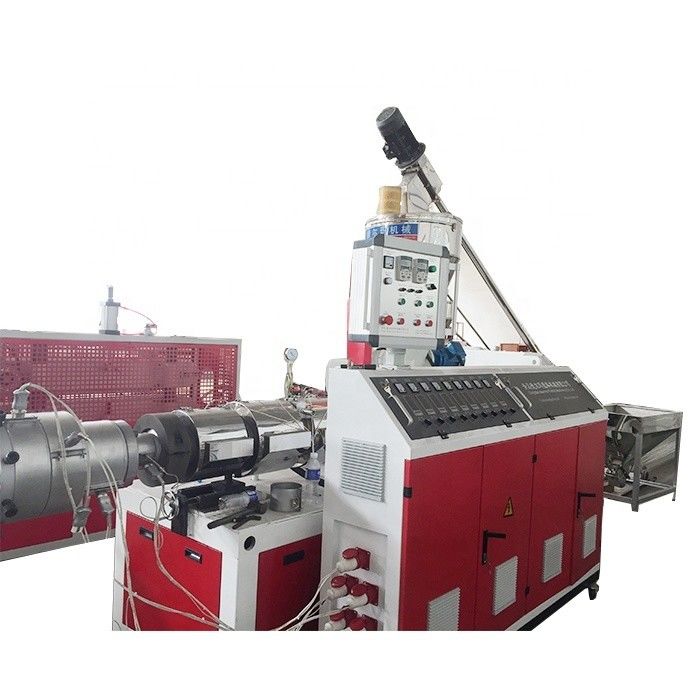

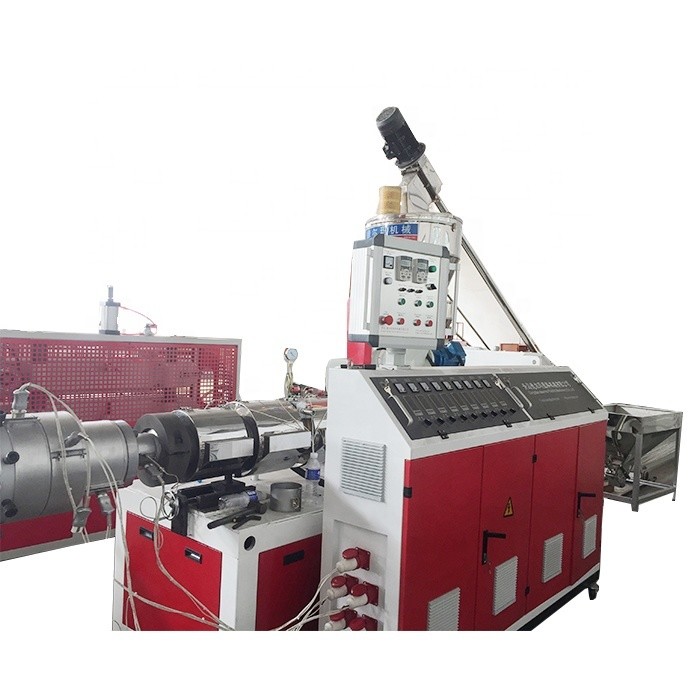

High efficiency twin screw extruder.
It can produce pvc pipes.
The pipe diameter range:16-630mm or customes request.
The pvc pipe is mostly used in construction industry water supply, drain,electrical cable coating and under ground sweage treatment and so on.

16-630mm Plastic PVC Pipe Production Line Main parameter :

Model number	PVC-16/63	PVC-20/110	PVC-50/160	PVC-75/250	PVC-110/315	PVC-200/450	PVC-315/630	PVC-500/800
Pipe diameter	16-63mm	20-110mm	50-160mm	75-250mm	110-315mm	200-450mm	315-630mm	500-800mm
Max output	120kg/h	120kg/h	180kg/h	300kg/h	450kg/h	650kg/h	800kg/h	1400kg/h
Production rate	1.5-15m/min	0.8-8m/min	0.5-5m/min	0.4-4m/min	0.3-2m/min	0.1-1m/min	0.07-0.7m/min	0.05-1 m/min
Extruder model	SJZ-50/105	SJZ-50/105	SJZ-55/110	SJZ-65/132	SJZ-80/156	SJZ-92/188	SJZ-92/188	SJZ-105/220
Installed power	45kw	45kw	55kw	75kw	105kw	160kw	205kw	305kw
Center height	1000mm	1000mm	1000mm	1000mm	1100mm	1100mm	1200mm	1350mm
Installation area	222.52.0m	242.82.0m	242.82.0m	302.82.2m	353.02.4 m	363.02.4 m	383.22.8 m	423.53.2 m

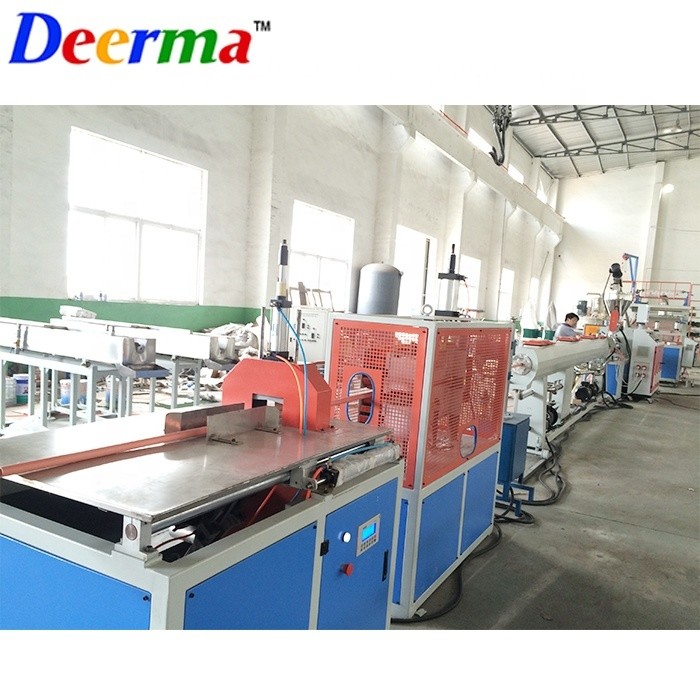

PVC Pipe Making Machine Main Composition

Item	Quantity
Twin Screw Extruder	two set

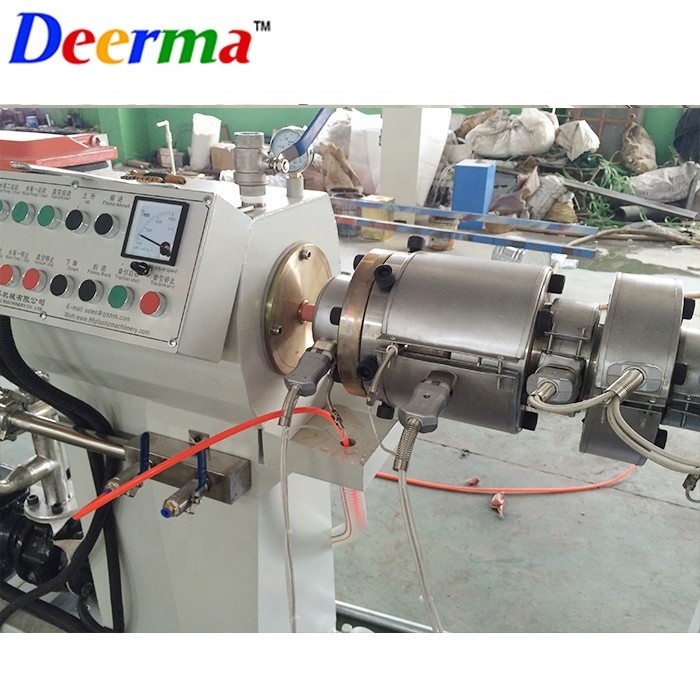

Die And Mould	one set

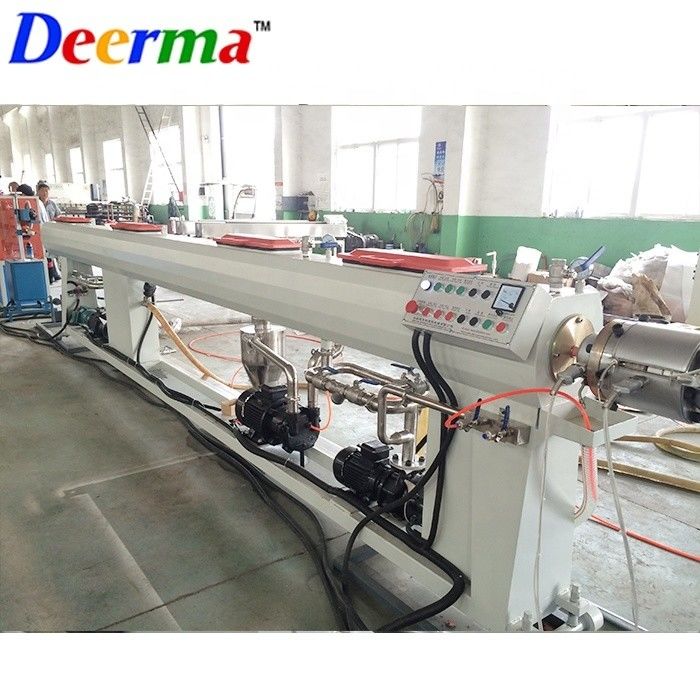

Vacuum Calibration Device	one set
Spray Cooling Tanks	one set
Tractor	one set
Cutting Device	one set
Stacker	one set

QINGDAO DEERMA PLASTIC MACHINERY CO.,LTD is one of the largest plastic machinery manufacturers in china , it's located in Qingdao of China , and has 12-year export experience , up to now , our customers are all over the world , including UK,Spain, France ,Finland, America, Turkey,Bolivia,Russia,Argetina,Brazil,Mexcio,Eypget,UAE,etc.

We can supply you with good quality machines , competitive price , timely delierery and good after-sales service .

Welcome to visit our factory for further co-operation ! thanks

...
