Detail Information

Name:	Corrugated Pipe Extrusion Machine	Plastic Processed:	PVC
Application:	PIPE, Profile, Plates	Screw Design:	Single-screw
Screw Material:	38CrMoAlA	Screw Diameter (mm):	65 Mm
Screw L/d Ratio:	30:1	Screw Speed (rpm):	55 Rpm
Place Of Origin:	Shandong, China	Brand Name:	DEERMA
Voltage:	380V 3Phase 50HZ Or As Your Demand	Dimension(lwh):	L12W2H2.5m
Power (kw):	18.5	Warranty:	1 Year
Key Selling Points:	High Productivity	Video Outgoing-inspection:	Provided
Core Components:	Bearing, Pump, Gear, Engine	Machinery Test Report:	Provided
Extrusion Machine:	PVC Corrugated Pipe Extrusion Manufacturing Machine	Automatic Grade:	Automatic
Output Capacity:	80-100 Kg/ Hr	PVC Corrugated Pipe:	(12mm,16mm,20mm,25mm,32mm,40mm,50mm)
Installed Power:	35kw	Actual Consumption Power:	About 25kw
Motor:	SIEMENS	Inverter:	ABB
Temperature Meter:	OMRON	Contactor:	SCHNEIDER
Condition:	New	Showroom Location:	Egypt, Peru, India, Russia, Thailand, Kenya, South Korea, Algeria, Romania, South Africa
Applicable Industries:	Hotels, Building Material Shops, Home Use	Warranty Of Core Components:	1 Year
Weight:	5 KG
Highlight:	PVC Corrugated Pipe Extrusion Machine , ABB Inverter Single Screw Plastic Extruder

Product Description

ABB Inverter And Single-Screw Design PVC Corrugated Pipe Extrusion Machine For Insulation Electric Wire Cable Protection

Product Description

PP PE PVC electrical wire corrugated pipe making machine

Max line speed 30 meters per minute.

PVC plasticcorrugated pipe machines is made of super quality steel. The module connection is set in the closed machine cavity. The inner and outer side of corrugated pipe is even and smooth.

The forced cooling system can enhance the quality and capacity of product. Corrugated pipes are widely used for wire sleeves, auto, home and medical appliances.

Technial parameters:

Pipe diameter(mm)	4.5-9	9-32	16-50
Extruder model	SJ-30	SJ-50	SJ-65
Screw L/D	30:1	30:1	30:1
Output kg/h	10	30	50
Extruder motor	4	15	18.5
Corrugators power kw	1.1	1.5	2.2
Moulds pairs	42	38,50	50
Cooling mode	Water Cooling and fan cooling
Extruding speed(m/min )	6-10	8-12	8-12
Account number mode	Inducting speed
Winding pipe mode	Automatic winding and manually

Main mahine list

1.SJ-30/50/65 Single Screw Extruder

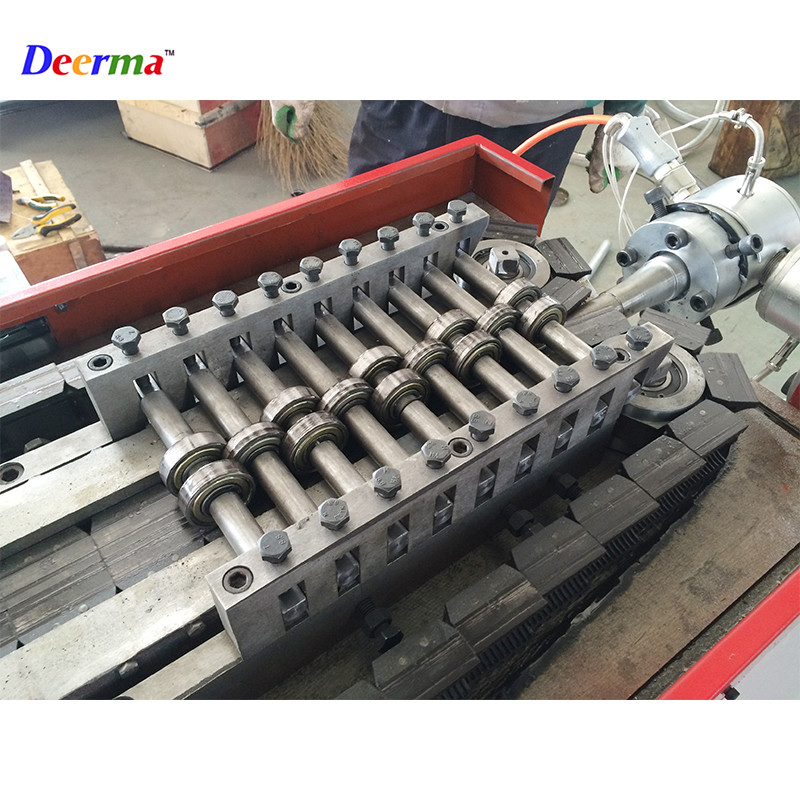

2.Forming machine

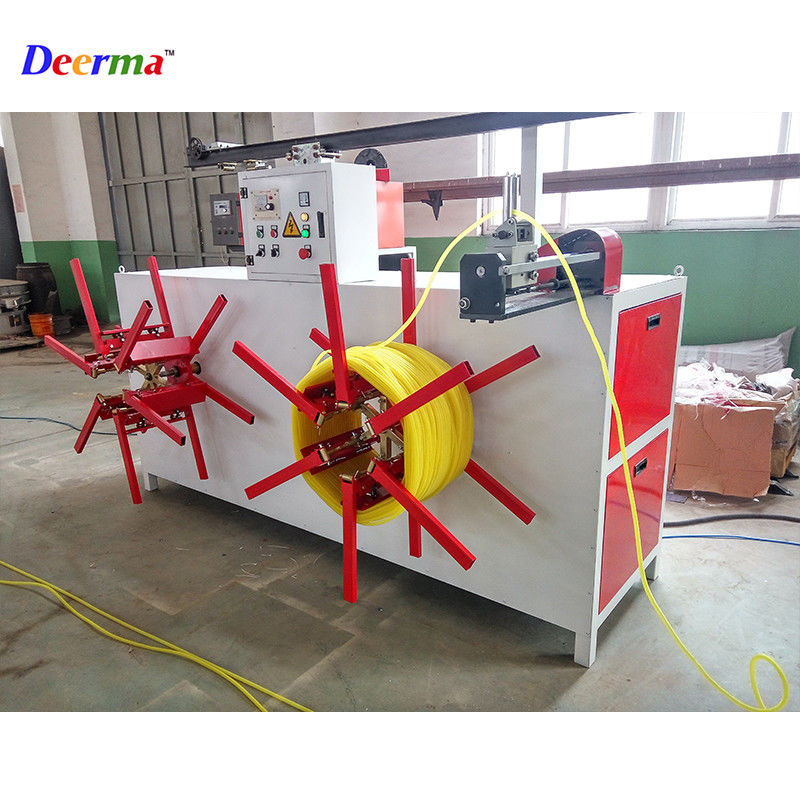

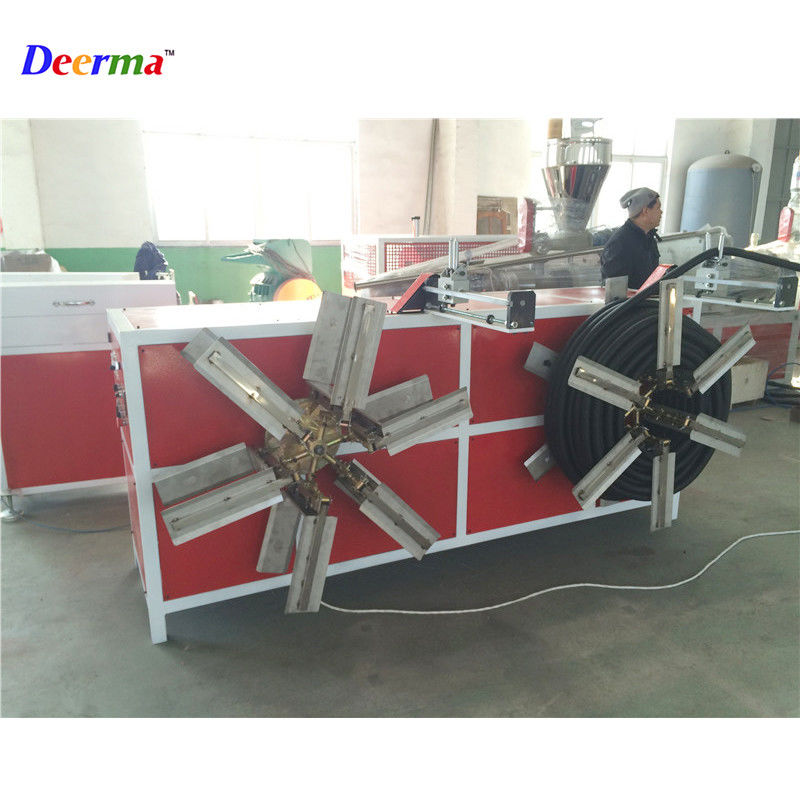

3.Double station winder

4.Vacuum loading device

5.One set mould

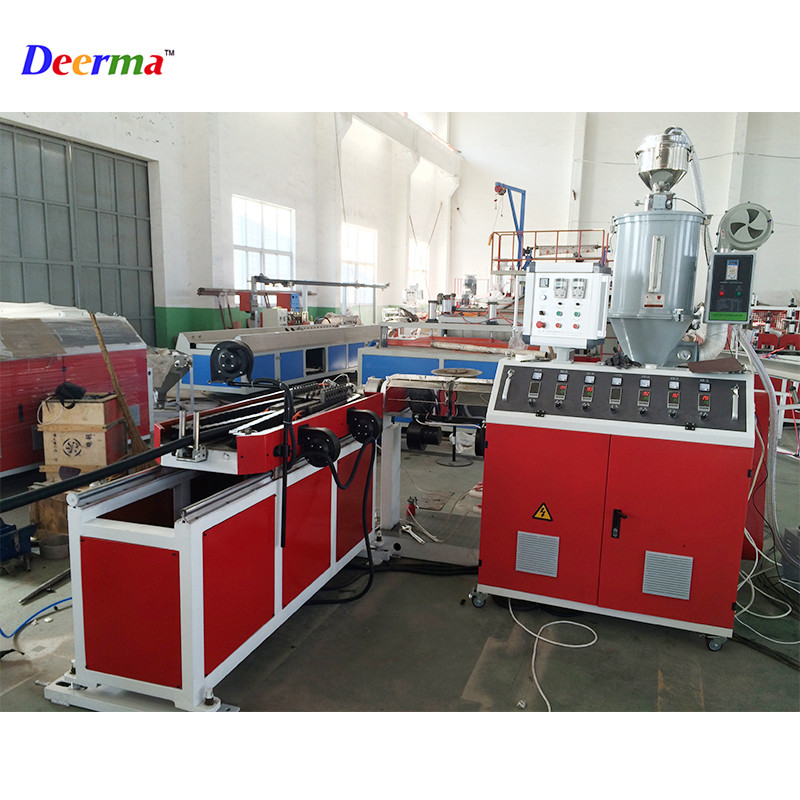

Machine Pictures

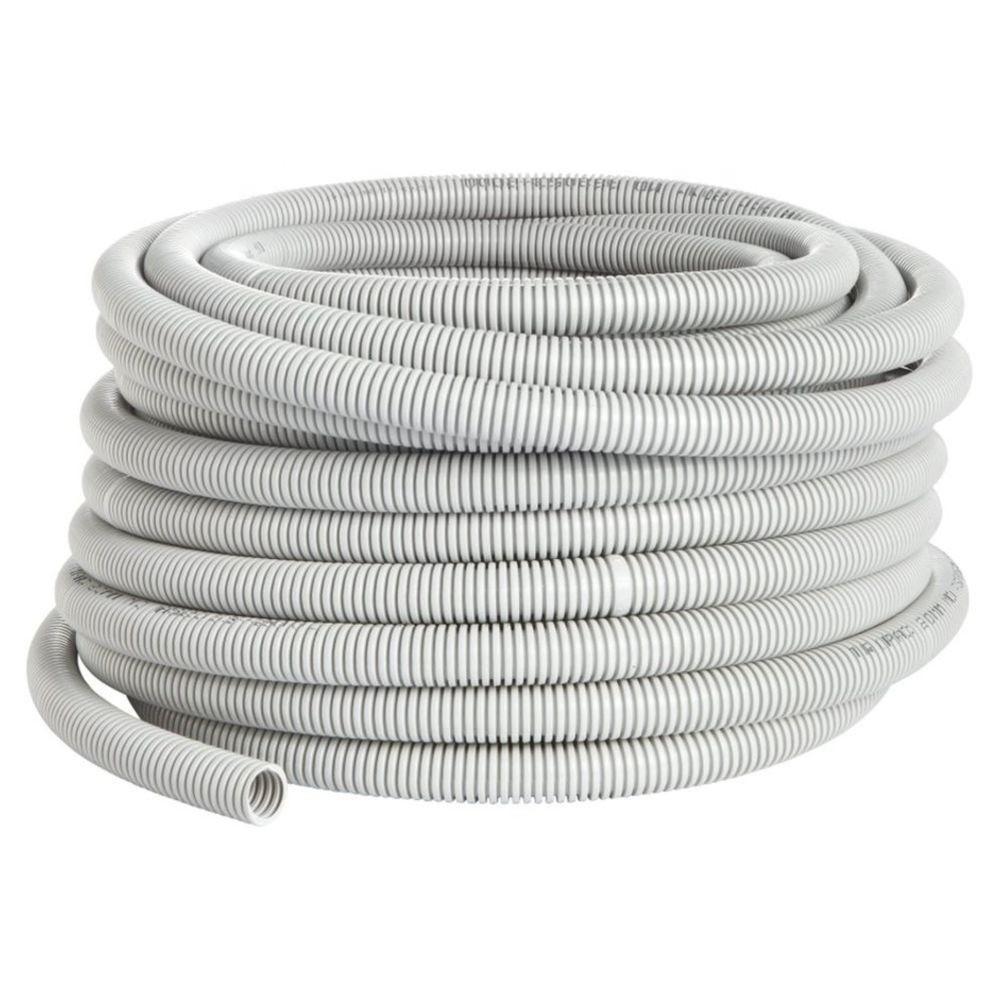

Output products:

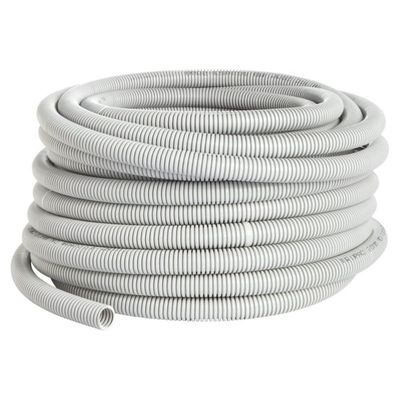

PVC Corrugated Pipe Extrusion Machine ABB Inverter Single Screw Plastic Extruder 18.5kw 6

PVC Corrugated Pipe Extrusion Machine ABB Inverter Single Screw Plastic Extruder 18.5kw 7

Certifications

...
