Detail Information

Name:	HDPE Pipe Machine	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Core Components:	Engine, Bearing, Gear
Type:	Pipe Production Line	Pipe Material:	PE
Application:	Drain Pipe	Production Capacity:	4-12 M / Min
Voltage:	220V/380V/ 415V/440V	Power(w):	Install Power 80kw
Dimension(LWH):	30 X 2.2 X 3.0m	Weight:	8 Kg
Warranty:	1 Year	Key Selling Points:	Easy To Operate
Machine:	For Sale HDPE Pipe Production Line	Model:	SJ90/30
Pipe Diameter:	160-250mm	Tractor Speed:	4-12m/min
Output Capacity:	250-350kg/h	Drive Motor:	SIEMENS
Inverter:	SIEMENS	Reduction Gearbox:	GUOMAO
Temperature Controller:	OMRON	Applicable Industries:	Hotels, Building Material Shops, Farms, Restaurant, Home Use, Construction Works
Showroom Location:	Egypt, Peru, India, Thailand, South Korea, South Africa	Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year	Condition:	New
Port:	Qingdao
Highlight:	High Speed HDPE Pipe Machine , HDPE Pipe Machine SJ90/30 , High Speed Tube Extrusion Line

Product Description

4-12m/Min Tractor Speed High Speed Hdpe Pipe Production Line With 8 Kg Capacity

High Speed HDPE Pipe Machine SJ90/30 Tube Extrusion Line 4-12m/Min Tractor Speed 0

Product Description

Working process & Technical Parameters

SJ-90×33 Single Screw Extruder with Vacuum Feeding Unit & Drying Machine (Two Set)
Die and Moud
Vacuum Calibration Device
Spray Cooling Tanks
Tractor
No Dust Cutting Device
Stacker
Crusher

Item	SJ65/30	SJ75/30	SJ90/30
Max Dia. Of pipe(mm)	16-63MM	20-110MM	75-160MM or 110-250mm
Main machine	SJ65/30+SJ25/25	SJ75/30+SJ25/25	SJ90/30+SJ25/25
Motor power(kw)	37KW	37KW	55KW or 90KW
Max. capacity(kg/h)	50-120KG/G	70-140KG/H	80-160KG/H or 250-350kg/h
Traction speed(m/min)	0-12M/MIN	0-8M/MIN	0-8M/MIN
length(mm)	25000	34000	44000

Machine Description

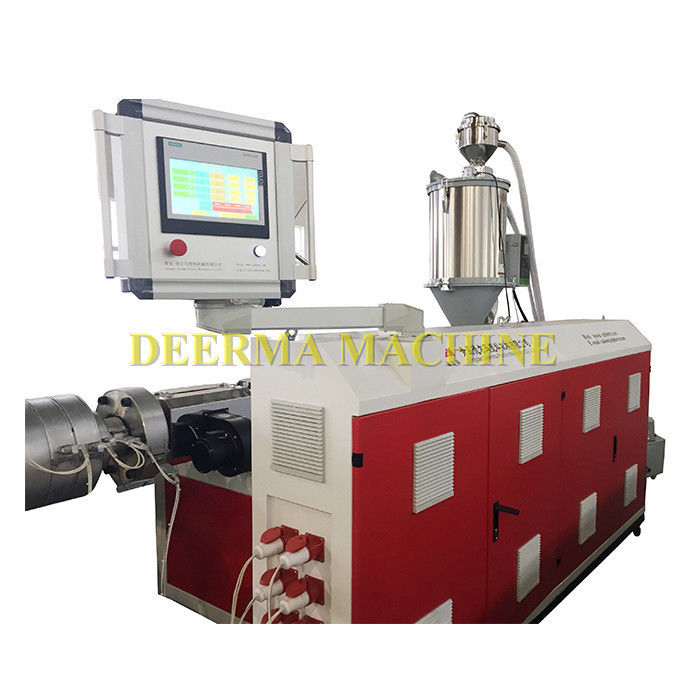

1. SJ-90×33 Single Screw Extruder with Vacuum Feeding Unit & Drying Machine (Two Set)

High Speed HDPE Pipe Machine SJ90/30 Tube Extrusion Line 4-12m/Min Tractor Speed 1

2. Die and Mould

High Speed HDPE Pipe Machine SJ90/30 Tube Extrusion Line 4-12m/Min Tractor Speed 2

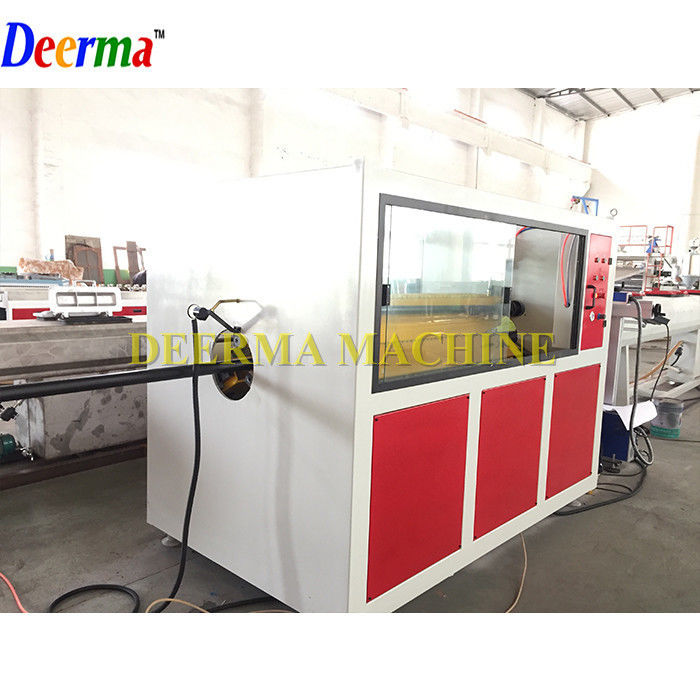

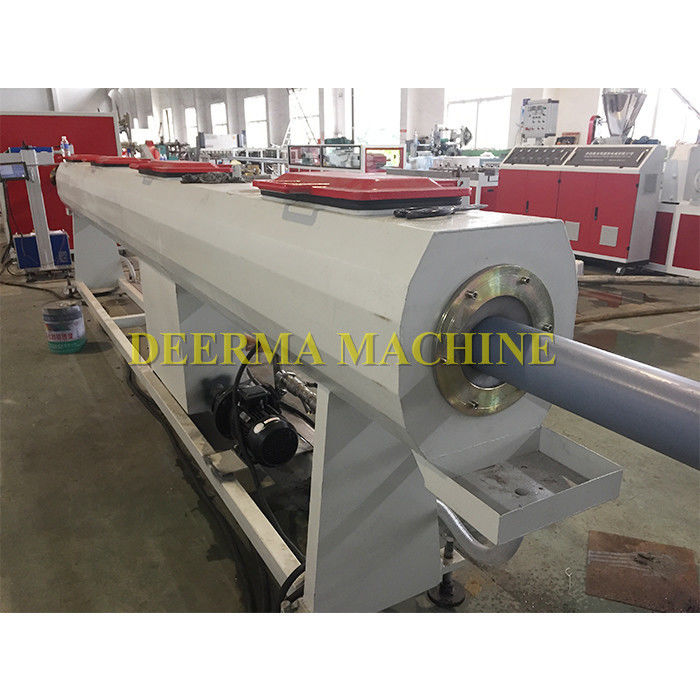

3.Vacuum Calibration Device

High Speed HDPE Pipe Machine SJ90/30 Tube Extrusion Line 4-12m/Min Tractor Speed 3

High Speed HDPE Pipe Machine SJ90/30 Tube Extrusion Line 4-12m/Min Tractor Speed 4

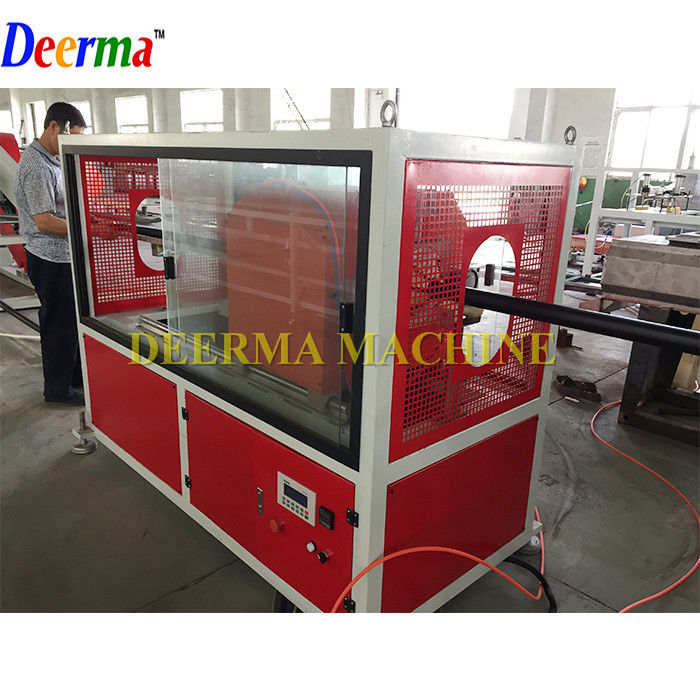

4.Tractor

High Speed HDPE Pipe Machine SJ90/30 Tube Extrusion Line 4-12m/Min Tractor Speed 5

7.No Dust Cutting Device

High Speed HDPE Pipe Machine SJ90/30 Tube Extrusion Line 4-12m/Min Tractor Speed 6

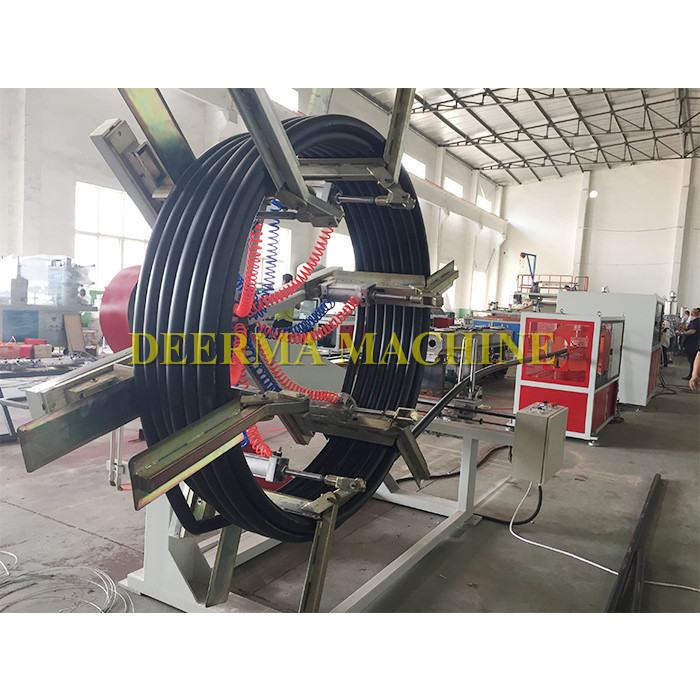

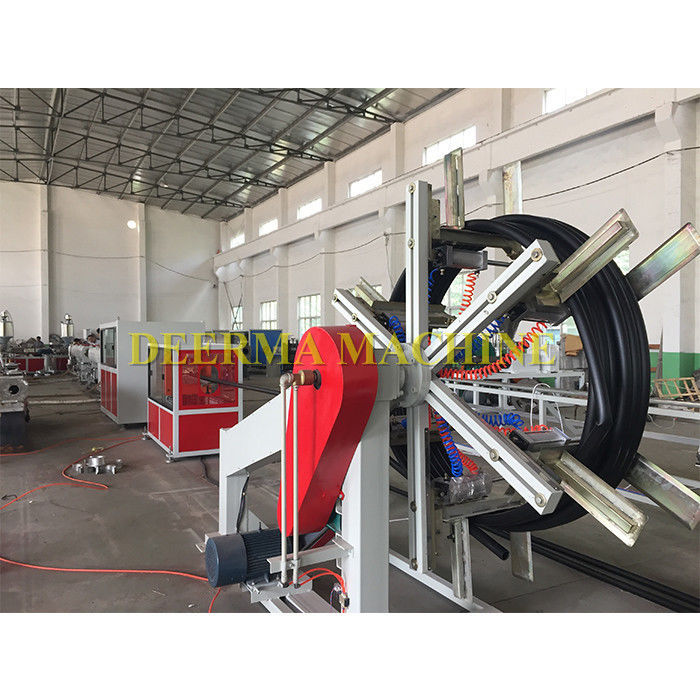

8. Winder Machine

Packaging & Shipping

High Speed HDPE Pipe Machine SJ90/30 Tube Extrusion Line 4-12m/Min Tractor Speed 8

Certifications

CERTIFICATE OF CONFORMITY AND ISO9001 QUALITY MANAGEMENT SYSTEM CERTFICATION

FAQ

Q: Your company is an industrial manufacture factory or a transactional company ?

A: Deerma Company is an industry manufacture of Extrusion Machines.

Q:All of your products are made by your self or compacted via purchasing the others?

A: we have independent technical team who focus on design & development & Manufacture extrusion machines. all the products are made by our technical team.

Q:Annual Production Capacity( Previous Year)

A: About 80 lines from 2014.1 to 2014.12 and total revenue is about USD 2500000

Q: Is there quality control on all production lines?

Yes, all production lines have adequate quality control

Q:Do the QA/QC inspectors work independently from the production line? Yes

Q:How many QA/QC inspectors in total? 4

Tag:

Place of Origin:	Shandong, China
Brand Name:	Deerma

Price:	CN¥180,375.00/sets >=1 sets
Packaging Details:	For Sale HDPE Pipe Production Line<br>1.Mold package: Wooden package.<br>2.Outside package:Stretch film<br>3.Loading Qty : 1x40GP for one production line<br>4.Gross Weight : About 5 Tons
Supply Ability:	5 Set/Sets per Month HDPE pipe machine
