Detail Information

Name:	HDPE Pipe Machine	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Core Components:	PLC, Engine, Bearing, Gearbox, Gear, Pump
Type:	Pipe Production Line	Pipe Material:	PE
Application:	Drain Pipe	Production Capacity:	4-12 M / Min
Voltage:	220V/380V/ 415V/440V	Power(w):	Install Power 80kw
Dimension(LWH):	30 X 2.2 X 3.0m	Weight:	8 Kg
Warranty:	1 Year	Key Selling Points:	High-accuracy
Machine:	High Speed HDPE Pipe Machine	Model:	SJ90/30
Pipe Diameter:	160-250mm	Tractor Speed:	4-12m/min
Output Capacity:	250-350kg/h	Drive Motor:	SIEMENS
Inverter:	SIEMENS	Reduction Gearbox:	GUOMAO
Temperature Controller:	OMRON	Pipe Application:	Water Supply
Applicable Industries:	Hotels, Building Material Shops, Farms, Restaurant, Home Use, Construction Works	Showroom Location:	Egypt, Turkey, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine
Marketing Type:	Ordinary Product	Warranty Of Core Components:	1 Year
Condition:	New	Port:	Qingdao
Highlight:	440V HDPE Pipe Machine , HDPE Pipe Machine 63mm , 160mm Tube Extrusion Machine

Product Description

4-12 M / Min Drive Motor SIEMENS 63-160MM HDPE PP PPR PE Pipe Production Line/Extrusion Machine/Making Machine

440V HDPE Pipe Machine 63mm - 160mm Tube Extrusion Machine 4-12 M / Min Drive Motor SIEMENS 0

Product Description

Working process & Technical Parameters

SJ-90×33 Single Screw Extruder with Vacuum Feeding Unit & Drying Machine (Two Set)
Die and Moud
Vacuum Calibration Device
Spray Cooling Tanks
Tractor
No Dust Cutting Device
Stacker
Crusher

Item	SJ65/30	SJ75/30	SJ90/30
Max Dia. Of pipe(mm)	16-63MM	20-110MM	75-160MM or 110-250mm
Main machine	SJ65/30+SJ25/25	SJ75/30+SJ25/25	SJ90/30+SJ25/25
Motor power(kw)	37KW	37KW	55KW or 90KW
Max. capacity(kg/h)	50-120KG/G	70-140KG/H	80-160KG/H or 250-350kg/h
Traction speed(m/min)	0-12M/MIN	0-8M/MIN	0-8M/MIN
length(mm)	25000	34000	44000

Machine Description

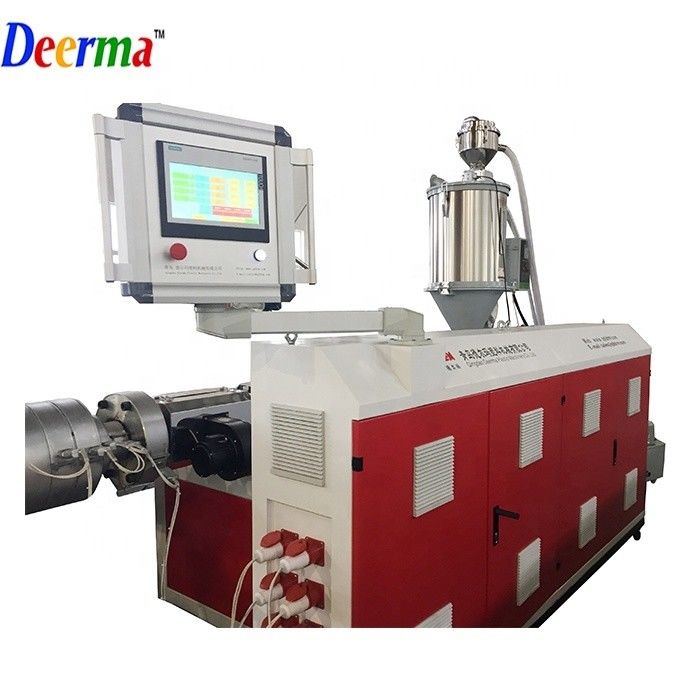

1. SJ-90×33 Single Screw Extruder with Vacuum Feeding Unit & Drying Machine (Two Set)

440V HDPE Pipe Machine 63mm - 160mm Tube Extrusion Machine 4-12 M / Min Drive Motor SIEMENS 1

2. Die and Mould

440V HDPE Pipe Machine 63mm - 160mm Tube Extrusion Machine 4-12 M / Min Drive Motor SIEMENS 2

3.Vacuum Calibration Device

440V HDPE Pipe Machine 63mm - 160mm Tube Extrusion Machine 4-12 M / Min Drive Motor SIEMENS 3

440V HDPE Pipe Machine 63mm - 160mm Tube Extrusion Machine 4-12 M / Min Drive Motor SIEMENS 4

4.Tractor

440V HDPE Pipe Machine 63mm - 160mm Tube Extrusion Machine 4-12 M / Min Drive Motor SIEMENS 5

7.No Dust Cutting Device

440V HDPE Pipe Machine 63mm - 160mm Tube Extrusion Machine 4-12 M / Min Drive Motor SIEMENS 6

8. Winder Machine

Packaging & Shipping

440V HDPE Pipe Machine 63mm - 160mm Tube Extrusion Machine 4-12 M / Min Drive Motor SIEMENS 8

Certifications

CERTIFICATE OF CONFORMITY AND ISO9001 QUALITY MANAGEMENT SYSTEM CERTFICATION

FAQ

Q: Your company is an industrial manufacture factory or a transactional company ?

A: Deerma Company is an industry manufacture of Extrusion Machines.

Q:All of your products are made by your self or compacted via purchasing the others?

A: we have independent technical team who focus on design & development & Manufacture extrusion machines. all the products are made by our technical team.

Q:Annual Production Capacity( Previous Year)

A: About 80 lines from 2014.1 to 2014.12 and total revenue is about USD 2500000

Q: Is there quality control on all production lines?

Yes, all production lines have adequate quality control

Q:Do the QA/QC inspectors work independently from the production line? Yes

Q:How many QA/QC inspectors in total? 4

Tag:

Place of Origin:	Shandong, China
Brand Name:	Deerma

Price:	CN¥360,750.00/sets 1-4 sets
Packaging Details:	63-160MM HDPE PP PPR PE Pipe Production Line/Extrusion Machine/Making Machine<br>1.Mold package: Wooden package.<br>2.Outside package:Stretch film<br>3.Loading Qty : 1x40GP for one production line<br>4.Gross Weight : About 5 Tons
Supply Ability:	5 Set/Sets per Month HDPE pipe machine
