Detail Information

Name:	PE Pipe Extruder Machine	Plastic Processed:	PE, HDPE, PE/PP, LDPE
Application:	PIPE	Screw Design:	Single-screw
Screw Material:	38CrMoALA	Screw Diameter (mm):	65mm
Screw L/d Ratio:	30:1	Screw Speed (rpm):	30 Rpm
Place Of Origin:	Shandong, China	Brand Name:	Deerma
Voltage:	380V/3P/50HZ Or As Local Voltage	Dimension(lwh):	20 X 3 X3
Power (kw):	37	Warranty:	1 Year
Key Selling Points:	Competitive Price	Video Outgoing-inspection:	Provided
Core Components:	Motor, Pump, PLC, Gearbox	Machinery Test Report:	Not Available
Plastic Machine:	PPR HDPE PE PVC Pipe Making Machine	Product Application:	Water Supply, Gas Suply
Model:	SJ65/33 PE Pipe Production Line	PE Pipe Diameter:	20-63mm
Output Capacity:	80-120 Kg/h	Tractor Speed:	0-12 M/min
Drive Motor:	Motor For Siemens	Temperature Controller:	Controller For Omron
Operator:	1-2 Persons Per Shift	Automatic Grade:	Automatic
Condition:	New	Showroom Location:	Egypt, Turkey, United States, Italy, Viet Nam, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Morocco, Kenya, Argentina, UAE, Colombia, Algeria, Romania, Ukraine, None
Applicable Industries:	Hotels, Building Material Shops, Manufacturing Plant, Farms, Construction Works	Warranty Of Core Components:	1 Year
Weight:	5 KG	Port:	Qingdao
Highlight:	Automatic PE Pipe Extruder Machine , PE Pipe Extruder Machine SJ65/33 , Polyethylene Pipe Production Line 65mm

Product Description

PE Pipe Making Machine With Tractor Speed Of 0-12 M/Min And Improved Design

What is the feature of our PE Pipe Mahcine

High efficiency single screw extruder.
It can produce hdpe water/gas pipes.
The pipe diameter range:20-630mm or customes request.
This hdpe hoes is mostly used as city water and gas supply system and so on.

Technical Parameters

Item	SJDRM75	SJDRM125	SJDRM250	SJDRM630	SJDRM800
Max Dia. Of pipe(mm)	75	125	250	630	800
Main machine	SJ65/30	SJ75/30	SJ90/30	SJ120/30	SJ120/33
Motor power(kw)	60	75	160	260	600
Motor type	Direct current model	Direct current model	Direct current model	Direct current model	Direct current model
Max. capacity(kg/h)	160	260	400	900	1150
Traction speed(m/min)	0.5DRM8	0.3DRM4	0.2DRM2	0.1DRM1	0.15DRM1.5
Max. traction(N)	10000	15000	30000	40000	50000
Cutting type	Disc type cutting	Disc type cutting	Planet cutting	Planet cutting	Planet cutting
length(mm)	22000	34000	44000	58000	60000

Main Composition

Item	Quantity
SJ-65×33 Single Screw Extruder	two set
Die And Mould	one set
Vacuum Calibration Device	one set
Spray Cooling Tanks	one set
Tractor	one set
No Dust Cutting Device	one set
Stacker	one set

Machines's Pictures

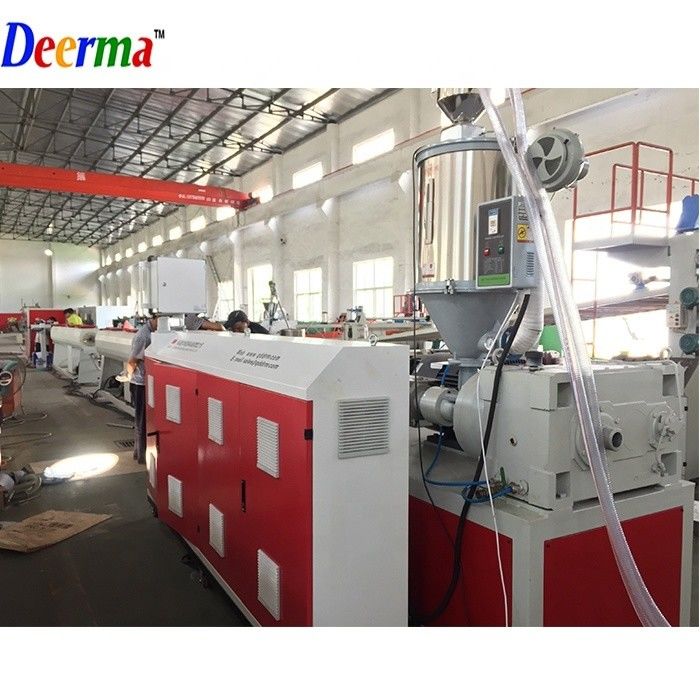

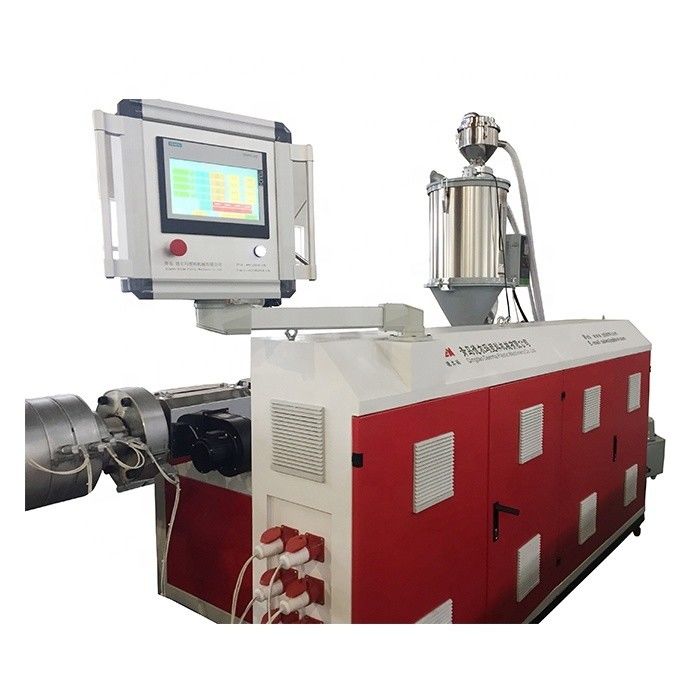

1.SJ65/33 Single screw extruder Equiped with Vacum feeding machine & Drying Machine (SIEMENS MOTOR)

Automatic PE Pipe Extruder Machine SJ65/33 Polyethylene Pipe Production Line 65mm 0

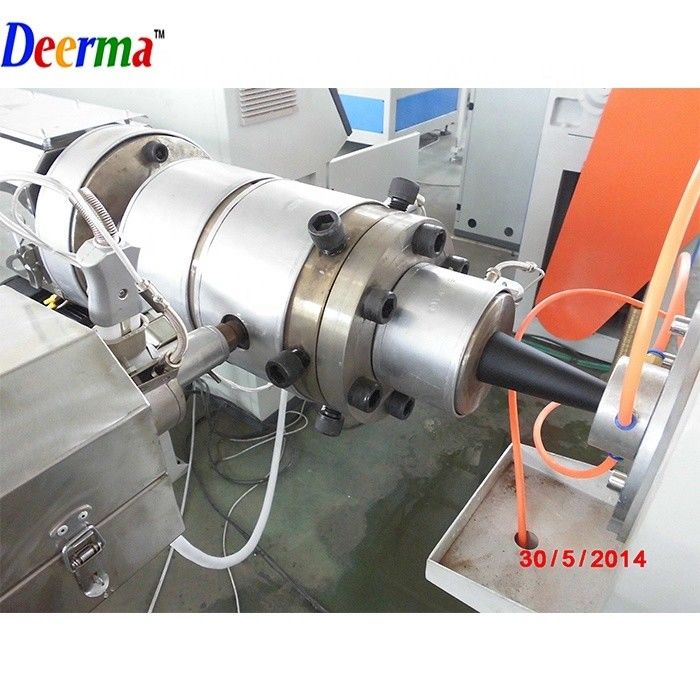

2.Die and Mould

Automatic PE Pipe Extruder Machine SJ65/33 Polyethylene Pipe Production Line 65mm 1

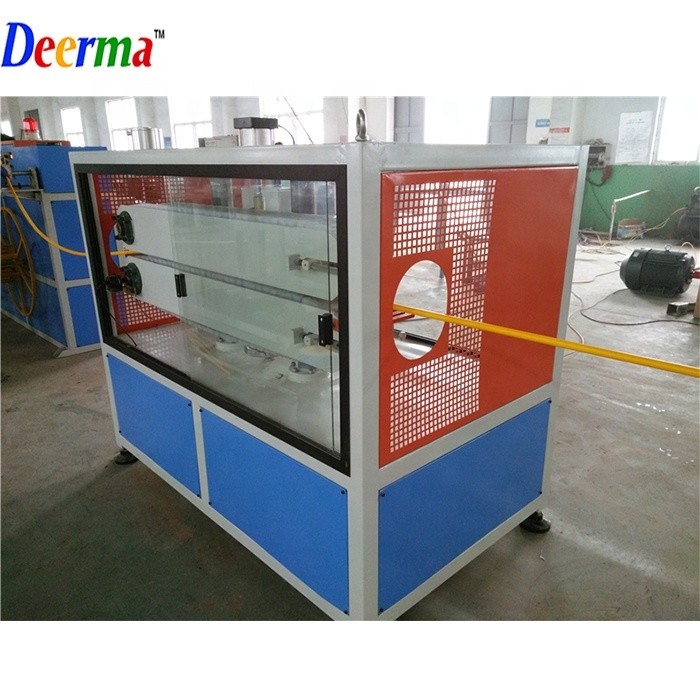

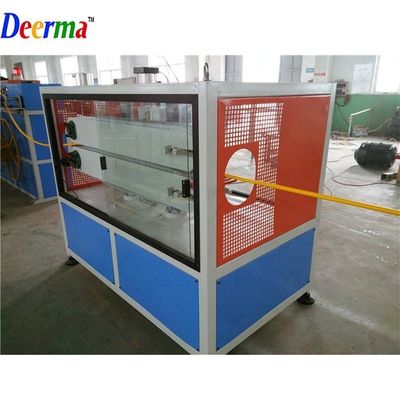

4.Vacuum Calibration Device

Automatic PE Pipe Extruder Machine SJ65/33 Polyethylene Pipe Production Line 65mm 2

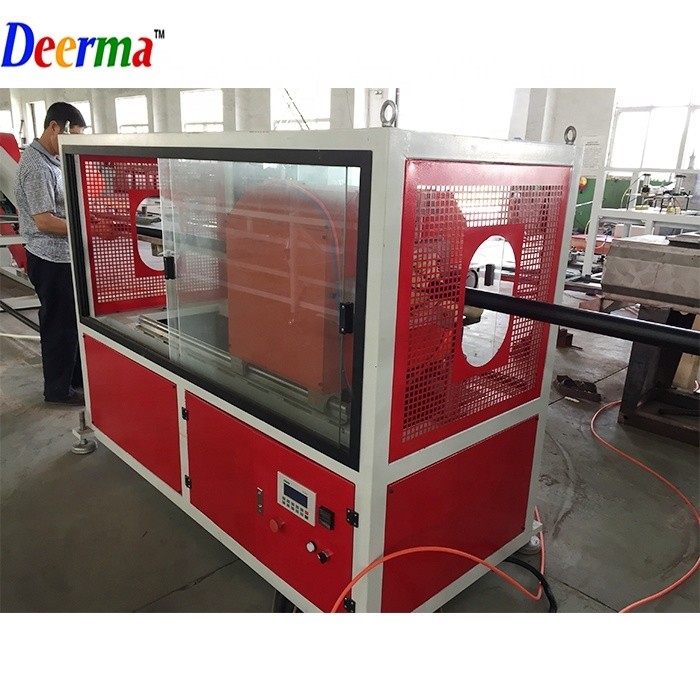

5.Spray Cooling Tank

Automatic PE Pipe Extruder Machine SJ65/33 Polyethylene Pipe Production Line 65mm 3

6.Tractor + cutter + printer

Automatic PE Pipe Extruder Machine SJ65/33 Polyethylene Pipe Production Line 65mm 4

7.Electric control system

Temperatue meter	Omron
Contactor	SIEMENS
Relay	SIEMENS
Transducer	SIEMENS
Power light, button	SIEMENS
Inveter	SIEMENS

Packaging & Shipping

Automatic PE Pipe Extruder Machine SJ65/33 Polyethylene Pipe Production Line 65mm 5

Automatic PE Pipe Extruder Machine SJ65/33 Polyethylene Pipe Production Line 65mm 6

Certifications

PASSED CE ISO9001 SGS TUV....

Certification	Certified By	Certificate No.	Business Scope Expiry Dat	Expiry Date
ISO 9001:2008	Beijing Hangxie Certification Center Co., Ltd., CNAS	03413Q21640R1M	Design and Production of Single-Screw Plastic Extruders and Conical Twin-Screw Plastic Extruders	17/Sep./2013 16/Sep./2016
CE	European Inspection and Certification Company S.A.	CN.CE.0680-10/10	Plastic Extrusion Machinery & SJ-30, SJ-45, SJ-65, SJ-90, SJ-120, SJ-150, SJ-180, SJ-200, SJSZ-51/105, SJSZ-65/132, SJZS-80/156, SJSZ-92/188	29/Oct./2010 28/Oct./2015
TUV	TÜV Rheinland	7467484_P+T	Production & Trade Assessment	15/Jan./2014 14/Jan./2015
Main Product Lines Verification Report	TÜV Rheinland	7467487_P+T	Main Product Lines Verification	15/Jan./2014 14/Jan./2015
SGS	SGS-CSTC Standards Technical Services Co.,Ltd Focus Technology Co., Ltd	QIP-ASR155278	Extrusion Machine, Pipe Machine ,profile Machine, Roof Machine…	15/May./

Service & Warranty

Equipment warranty

1. About the equipment, Deerma promised the good quality of 12 month.

2. during the warranty, no purposely and artificially damage change the damaged part, we will freely maintenance and technical services.

3. Over 12 months, Buyer’s needs to pay the producing cost of the worn part, and life-long supply the part of equipment and freely device

Testing installation

1. We will do machine test-running at our workshop before delivery and we’ll invite you come to our company to testing the complete line with us together

2. After the machinery arrived at buyer’s factory, the seller should send technician to buyer’s company install and test the machinery .

The buyer should pay the fee of air ticket , accommodation and the salary of technician USD 60 dollars per day .
