Detail Information

Name:	Polyethylene Pipe Extrusion Machine	Plastic Processed:	PE
Application:	PIPE, Profile, Plates	Screw Design:	Single-screw
Screw Material:	38CrMoALA	Screw Diameter (mm):	65
Screw L/d Ratio:	30:1	Screw Speed (rpm):	55 Rpm
Place Of Origin:	Shandong, China	Brand Name:	Deerma
Voltage:	380V/3P/50HZ Or As Local Voltage	Dimension(lwh):	L20000W2100H2600mm
Power (kw):	20	Warranty:	1 Year
Key Selling Points:	High Productivity	Video Outgoing-inspection:	Provided
Core Components:	Bearing, Pump, Gear, Engine	Machinery Test Report:	Provided
Plastic Machine:	20-63 Mm Diameter Water And Gas Supply PE Pipe Machine	Product Application:	Water Supply, Gas Suply
Model:	SJ65/33 PE Pipe Production Line	PE Pipe Diameter:	20-63mm
Output Capacity:	80-120 Kg/h	Tractor Speed:	0-12 M/min
Drive Motor:	Siemens	Temperature Controller:	Omron
Operator:	1-2 Persons Per Shift	Power:	Installed Power80kw;consumption Power55kw
Condition:	New	Showroom Location:	Egypt, Peru, India, Russia, Thailand, Kenya, South Korea, Algeria, Romania, South Africa
Applicable Industries:	Hotels, Farms, Food Shop, Construction Works	Warranty Of Core Components:	1 Year
Weight:	5 KG
Highlight:	80Kg/H Polyethylene Pipe Extrusion Machine , 120Kg/H Polyethylene Pipe Extrusion Machine , 63 Mm Polyethylene Extruder Machine

Product Description

80-120 Kg/H Output Capacity 20-63 Mm PE Water And Gas Supply Pipe Machine Using 38CrMoALA Screw Material For Performance

What is the feature of our PE Pipe Mahcine

1.High efficiency single screw extruder.

2.It can produce hdpe water/gas pipes.

3.The pipe diameter range:20-630mm or customes request.

4.This hdpe hoes is mostly used as city water and gas supply system and so on.

Technical Parameters

Model	SJ65/33	SJ75/33	SJ90/33	SJ120/33	SJ150/33
Max Dia(mm)	75	160	250	315	630
Installtion power(kw)	65	150	200	280	420
Drawing speed(m/min)	0-12	0-8	0-6	0-4	0-2
Total Length(m)	28	36	50	66	72
Putput(kg/hr)	80-120	80-150	180-260	300-400	450-600

Main Composition (the list of one of PE Pipe Production Line)

Item	QTY
SJ65/33 Single screw extruder Equiped with Vacum feeding machine & Drying Machine	1set
SJ25/25 Single screw extruder for marking line	1set
Die and Mould	1set
Vacuum Calibration Device	1set
Spray Cooling Tank	1set
Tractor	1set
No Dust Cutting Device	1set
Stacker	1set

Machines's Pictures

1.SJ65/33 Single screw extruder Equiped with Vacum feeding machine & Drying Machine (SIEMENS MOTOR)

80Kg/H - 120Kg/H Polyethylene Pipe Extrusion Machine 20 - 63 Mm Polyethylene Extruder Machine 0

2. SJ25/25 Single screw extruder for marking line

80Kg/H - 120Kg/H Polyethylene Pipe Extrusion Machine 20 - 63 Mm Polyethylene Extruder Machine 1

3.Die and Mould

80Kg/H - 120Kg/H Polyethylene Pipe Extrusion Machine 20 - 63 Mm Polyethylene Extruder Machine 2

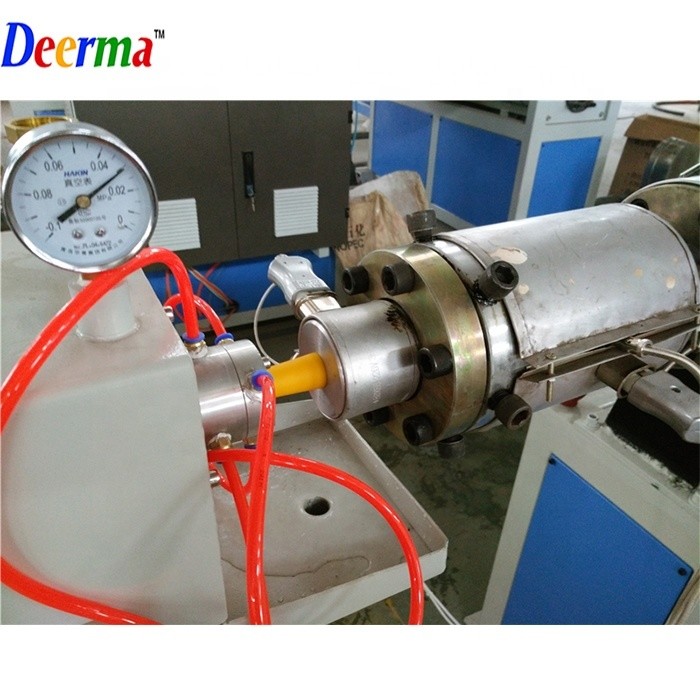

4.Vacuum Calibration Device

80Kg/H - 120Kg/H Polyethylene Pipe Extrusion Machine 20 - 63 Mm Polyethylene Extruder Machine 3

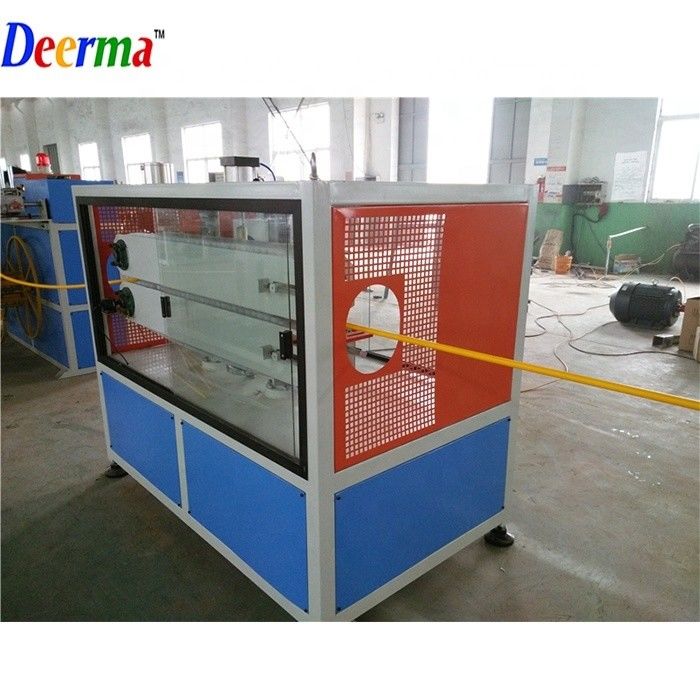

5.Spray Cooling Tank

80Kg/H - 120Kg/H Polyethylene Pipe Extrusion Machine 20 - 63 Mm Polyethylene Extruder Machine 4

6.Tractor

80Kg/H - 120Kg/H Polyethylene Pipe Extrusion Machine 20 - 63 Mm Polyethylene Extruder Machine 5

7.No Dust Cutting Device

80Kg/H - 120Kg/H Polyethylene Pipe Extrusion Machine 20 - 63 Mm Polyethylene Extruder Machine 6

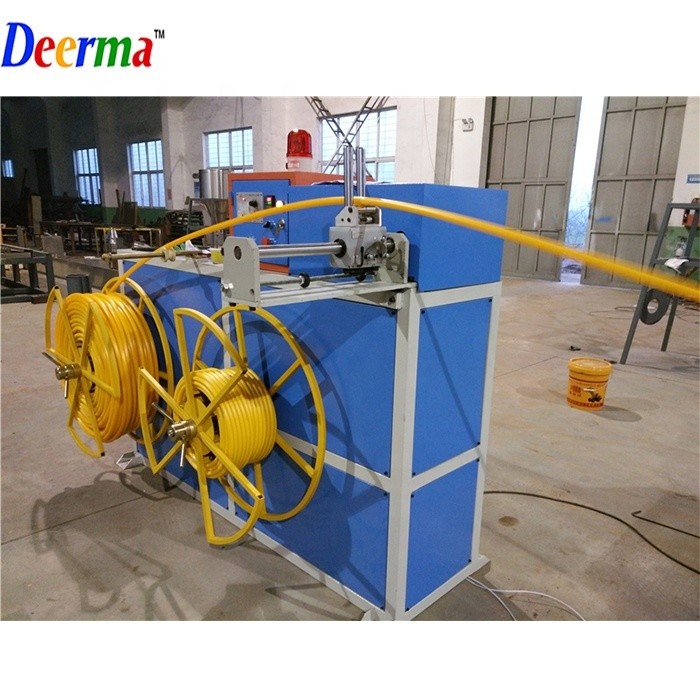

8. Stacker

80Kg/H - 120Kg/H Polyethylene Pipe Extrusion Machine 20 - 63 Mm Polyethylene Extruder Machine 7

9.Electric control system

Temperatue meter	Omron
Contactor	SIEMENS
Relay	SIEMENS
Transducer	SIEMENS
Power light, button	SIEMENS
Inveter	SIEMENS

Auxiliary Machines

1. SWP-360 Crusher

80Kg/H - 120Kg/H Polyethylene Pipe Extrusion Machine 20 - 63 Mm Polyethylene Extruder Machine 8

Trade Terms

Payment: T/T, Western Union, MoneyGram,PayPal; 30% deposits; 70% balance before deliverying.

Delivery Time: 30-45 days

MOQ: 1set

Our Certification

80Kg/H - 120Kg/H Polyethylene Pipe Extrusion Machine 20 - 63 Mm Polyethylene Extruder Machine 9

Company Review

80Kg/H - 120Kg/H Polyethylene Pipe Extrusion Machine 20 - 63 Mm Polyethylene Extruder Machine 10

80Kg/H - 120Kg/H Polyethylene Pipe Extrusion Machine 20 - 63 Mm Polyethylene Extruder Machine 11

Imported Electic Parts for your choice!

80Kg/H - 120Kg/H Polyethylene Pipe Extrusion Machine 20 - 63 Mm Polyethylene Extruder Machine 12

Best Services

1.Our company will provide relevant information on various technology and business consulted by customers. If clients want to visit our company, we will offer all they need for convenience.

2.After signing contract, company designs groundsill installation chart for water, electricity and gas of equipment basing on real condition and customers’ requirements and provides detail order list and matching manufacturer for reference for customer.

3.After equipment arrival, our service personnel will arrive at posted locale for installation, debugging, training and technology transfer till customers can operate independently and manufactures eligible product. Service personnel have to arrive at customer’s locale in time when we provide service for client again.

Why Choose us

1.We are China Leading Plastic Machine Manufacturer.

2.Alibaba Assessed 7 years Domestic Supplier .

3.Inspected by the Inspection Institution of SGS Certification.

4.100% QC inspection Before Shipmeng.

5.Best Quality & Best Service with Competitive price.

80Kg/H - 120Kg/H Polyethylene Pipe Extrusion Machine 20 - 63 Mm Polyethylene Extruder Machine 13

We have SIX this production lines in our showroom for other customer , welcome to visit our factory

...
