Detail Information

Name:	PE Pipe Extrusion Machine	Plastic Processed:	PE
Application:	PIPE, Profile, Plates	Screw Design:	Single-screw
Screw Material:	38CrMoALA	Screw Diameter (mm):	65
Screw L/d Ratio:	30:1	Screw Speed (rpm):	55 Rpm
Place Of Origin:	Shandong, China	Brand Name:	Deerma
Voltage:	380V/3P/50HZ Or As Local Voltage	Dimension(lwh):	L25000W2100H2600mm
Power (kw):	20	Warranty:	1 Year
Key Selling Points:	High Productivity	Video Outgoing-inspection:	Provided
Core Components:	Bearing, Pump, Gear, Engine	Machinery Test Report:	Provided
Plastic Machine:	Pe Pipe Extrusion Machine	Model:	SJ65/30
Product Application:	Water Supply	PE Pipe Diameter:	16-63mm
Output Capacity:	40-80 Kg/h	Tractor Speed:	0-10 M/min
Drive Motor:	Siemens	Temperature Controller:	Omron
Operator:	1-2 Persons Per Shift	Power:	Installed Power80kw;consumption Power55kw
Condition:	New	Showroom Location:	Egypt, Peru, India, Russia, Thailand, Kenya, South Korea, Algeria, Romania, South Africa
Applicable Industries:	Hotels, Farms, Restaurant, Food Shop, Construction Works	Warranty Of Core Components:	1 Year
Weight:	5 KG
Highlight:	High Productivity PE Pipe Extrusion Machine , PE Pipe Extrusion Machine 65mm , PE Pipe Production Machine 20kw

Product Description

High Productivity Pe Pipe Extrusion Machine Featuring 65mm Screw Diameter And Long Lifespan

What is the feature of our Pe Pipe Mahcine
1.High efficiency single screw extruder.
2.It can produce PPR water pipes.
3.The pipe diameter range: 16-63mm / 20-110mm / 50-160mm or customes request.
4.This PPR hoes is mostly used as city water and Hot/cold water pipe so on.
Technical Parameters

Model	SJ65/30	SJ65/30	SJ75/30
Max Dia(mm)	16-63	20-110	50-160
Motor power(kw)	37	37	55
Drawing speed(m/min)	0-10	0-8	0-8
Total Length(m)	25	25	28
Putput(kg/hr)	40-80	60-120	80-160

Main Composition (the list of one of PE Pipe Production Line)

Item	QTY
SJ65/30 Single screw extruder Equiped with Vacum feeding machine & Drying Machine	1set
SJ25/25 Single screw extruder for marking line	1set
Die and Mould	1set
Vacuum Calibration Device	1set
Spray Cooling Tank	1set
Tractor	1set
No Dust Cutting Device	1set
Stacker	1set

Machines's Pictures
1.SJ65/30 Single screw extruder Equiped with Vacum feeding machine & Drying Machine (SIEMENS MOTOR)
High Productivity PE Pipe Extrusion Machine 65mm PE Pipe Production Machine 20kw 0
2.Die and Mould

4.Vacuum Calibration Device

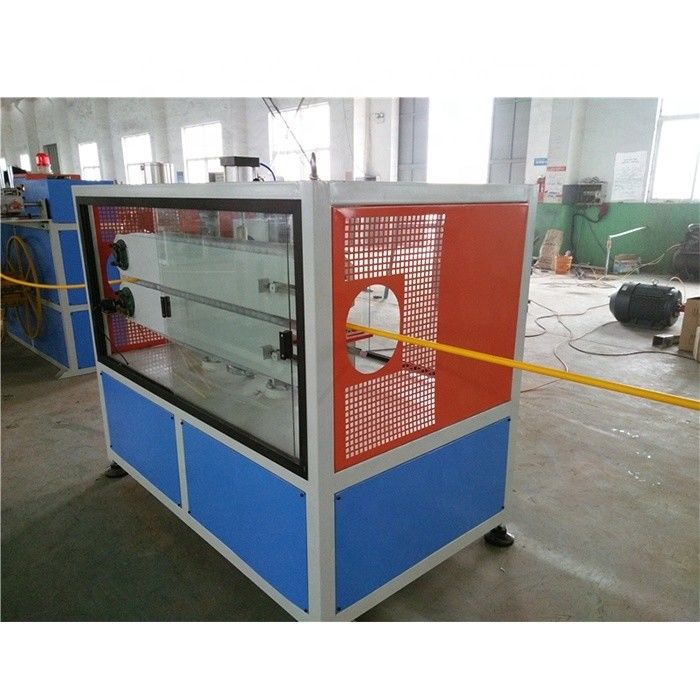

5.Spray Cooling Tank

6.Tractor

7.No Dust Cutting Device

We have SIX this production lines in our showroom for other customer , welcome to visit our factory

...
