Detail Information

Name:	HDPE Pipe Machine	Plastic Processed:	PE
Application:	PIPE, Profile, Plates	Screw Design:	Single-screw
Screw Diameter (mm):	65 Mm	Screw L/d Ratio:	30:1
Screw Speed (rpm):	60 Rpm	Place Of Origin:	Shandong, China
Brand Name:	Deerma	Voltage:	380V/3P/50HZ Or As Local Voltage
Dimension(lwh):	L20000W2100H2600mm	Power (kw):	80
Warranty:	1 Year	Key Selling Points:	High Productivity
Video Outgoing-inspection:	Provided	Core Components:	Bearing, Pump, Gear, Engine
Machinery Test Report:	Provided	Automatic Grade:	Automatic
Product Application:	Water Supply, Gas Suply	Model:	SJ65/33 PE Pipe Production Line
PE Pipe Diameter:	20-63mm	Tractor Speed:	0-12 M/min
Drive Motor:	Siemens	Temperature Controller:	Omron
Operator:	1-2 Persons Per Shift	Condition:	New
Showroom Location:	Egypt, Peru, India, Russia, Thailand, Kenya, South Korea, Algeria, Romania, South Africa	Applicable Industries:	Hotels, Building Material Shops, Home Use
Warranty Of Core Components:	1 Year	Weight:	5 KG
Highlight:	80kw HDPE Pipe Machine , HDPE Pipe Machine 20mm , 63mm HDPE Pipe Extrusion Machine

Product Description

30 1 Screw L/D Ratio HDPE Pipe Extrusion Machine For Output And Production In Home

80kw HDPE Pipe Machine 20mm - 63mm HDPE Pipe Extrusion Machine 0

80kw HDPE Pipe Machine 20mm - 63mm HDPE Pipe Extrusion Machine 1

What is the feature of our PE Pipe Mahcine

High efficiency single screw extruder.
It can produce hdpe water/gas pipes.
The pipe diameter range:20-630mm or customes request.

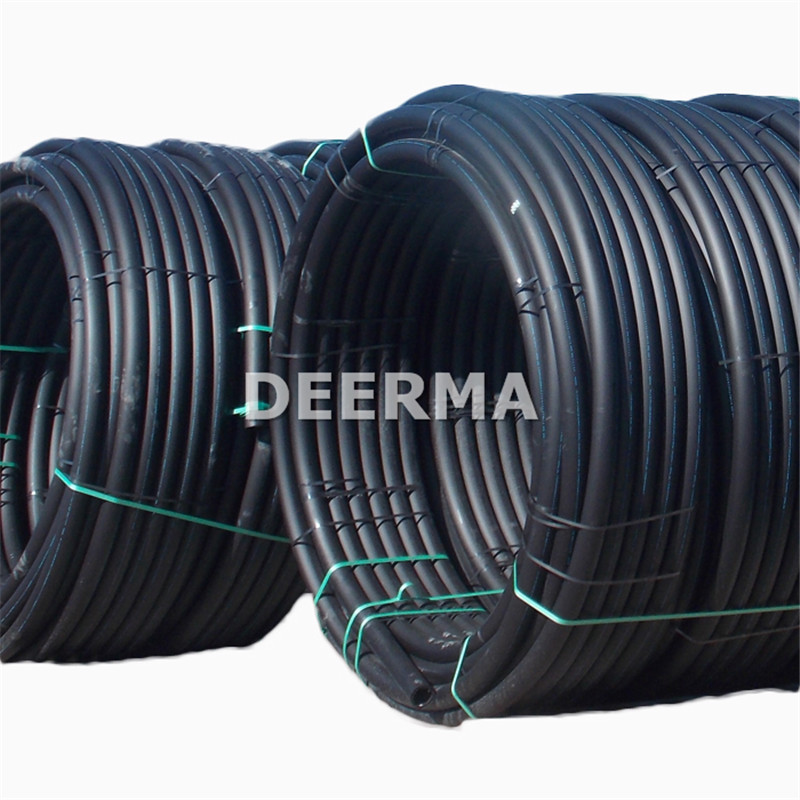

This hdpe hoes is mostly used as city water and gas supply system and so on.

Technical Parameters

Model	SJ65/33	SJ75/33	SJ90/33	SJ120/33	SJ150/33
Max Dia(mm)	75	160	250	315	630
Installtion power(kw)	65	150	200	280	420
Drawing speed(m/min)	0-12	0-8	0-6	0-4	0-2
Total Length(m)	28	36	50	66	72
Putput(kg/hr)	80-120	80-150	180-260	300-400	450-600

Main Composition (the list of one of PE Pipe Production Line)

Item	QTY
SJ65/33 Single screw extruder Equiped with Vacum feeding machine & Drying Machine	1set
SJ25/25 Single screw extruder for marking line	1set
Die and Mould	1set
Vacuum Calibration Device	1set
Spray Cooling Tank	1set
Tractor	1set
No Dust Cutting Device	1set
Stacker	1set

Machines's Pictures

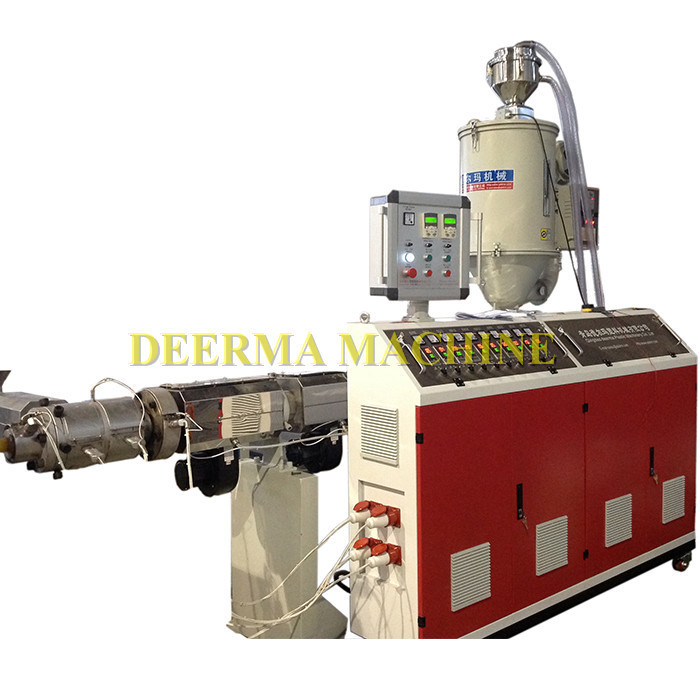

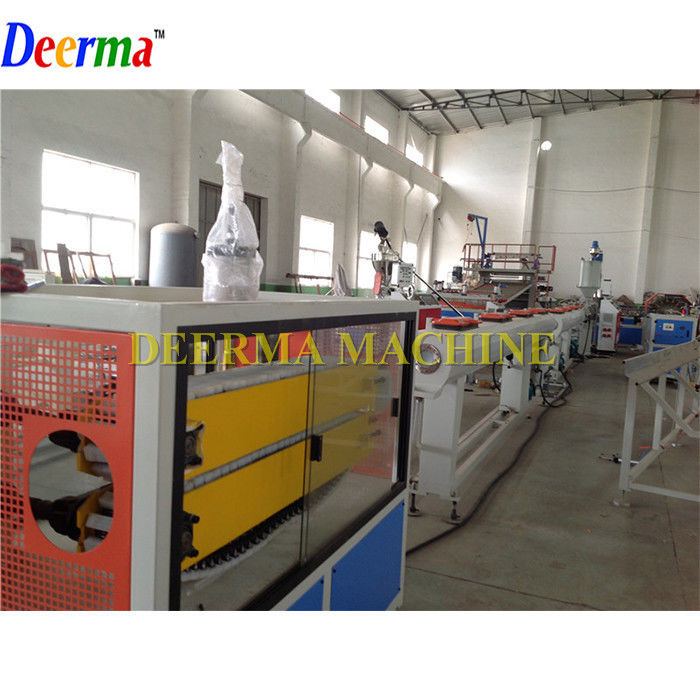

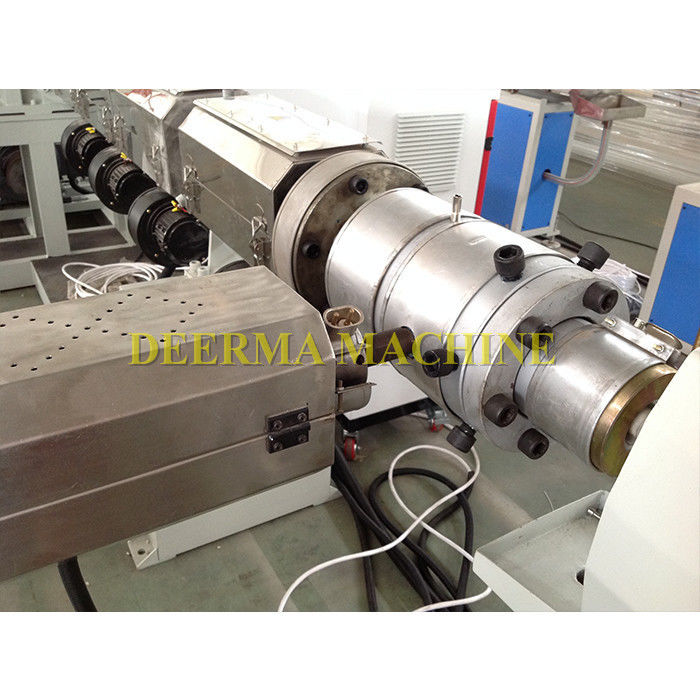

1.SJ65/33 HDPE PIPE MACHINE

80kw HDPE Pipe Machine 20mm - 63mm HDPE Pipe Extrusion Machine 2

80kw HDPE Pipe Machine 20mm - 63mm HDPE Pipe Extrusion Machine 3

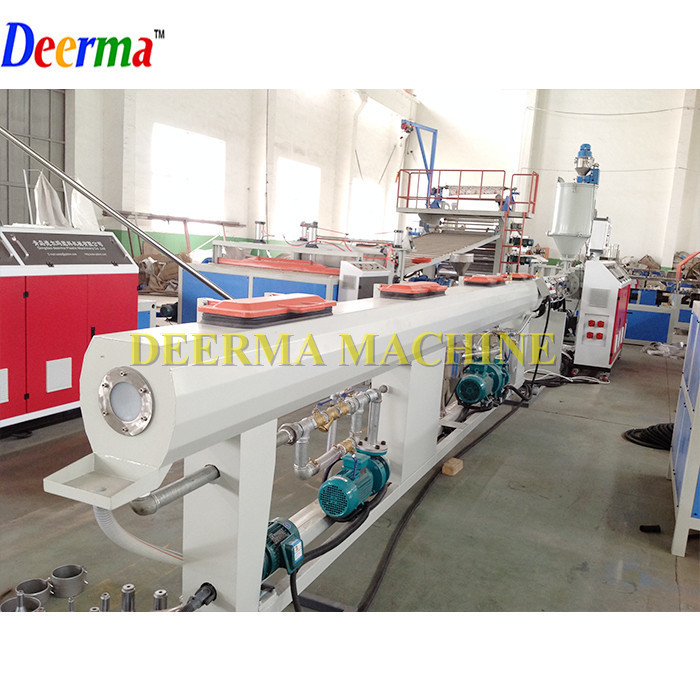

2.SJ90/33 HDPE PIPE MACHINE

80kw HDPE Pipe Machine 20mm - 63mm HDPE Pipe Extrusion Machine 5

3.SJ75+ SJ90 Three-Layer HDPE PIPE CO-EXTRUSION MACHINE

80kw HDPE Pipe Machine 20mm - 63mm HDPE Pipe Extrusion Machine 7

Electric control system

Temperatue meter	Omron
Contactor	SIEMENS
Relay	SIEMENS
Transducer	SIEMENS
Power light, button	SIEMENS
Inveter	SIEMENS

80kw HDPE Pipe Machine 20mm - 63mm HDPE Pipe Extrusion Machine 8

80kw HDPE Pipe Machine 20mm - 63mm HDPE Pipe Extrusion Machine 9

Machine Video

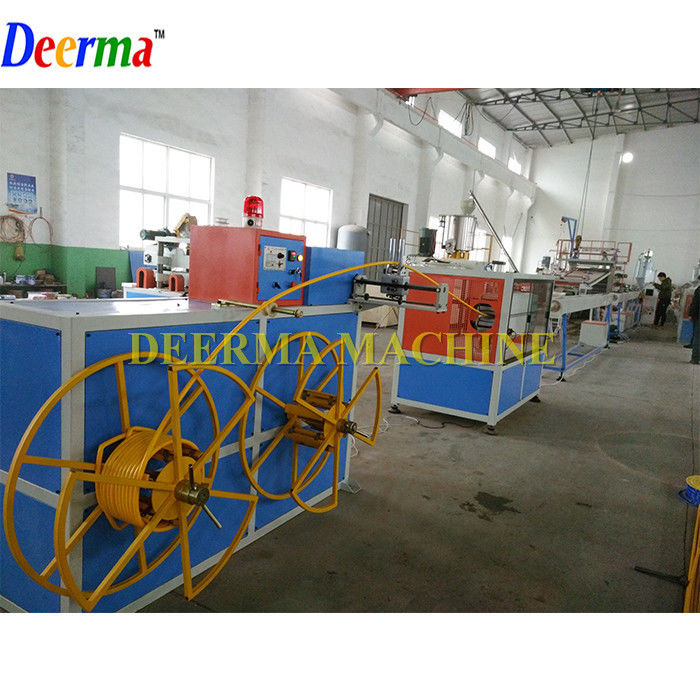

20-110mm PE Pipe Machine with winder

https://youtu.be/KC3sOFnYZCo

30-100mm PE Pipe Machine with winder

https://youtu.be/ibK_ISSu0-A

Three-Layer PE Pipe Co-extrusion Machine

https://youtu.be/JG3RyNRR82c

50-160mm Three-Layer PE Pipe Co-extrusion Machine

https://youtu.be/vJJYU7EN4sk

Laser printer PE pipes

https://youtu.be/0N0yMxcsENo

160mm PP PE Pipe Machine

https://youtu.be/CUPXigPrQhY

16-32mm PE PPR Pipe Machine

https://youtu.be/4OuK3cJT2nQ

20-63mm HDPE Pipe Machine

https://youtu.be/b15_u9hgCAE

HDPE PP Pipe Machine

https://youtu.be/J8LgL2HBEx0

HDPE Pipe Machine

https://youtu.be/5fe6pSAP_Yk

Plastic (granules) automatic charger

https://youtu.be/7ejdefAO5A8
