Detail Information

Name:	Water Pipe Making Machine	Plastic Processed:	PE
Application:	PIPE, Profile, Plates	Screw Design:	Single-screw
Screw Material:	38CrMoALA	Screw Diameter (mm):	65 Mm
Screw L/d Ratio:	30:1	Screw Speed (rpm):	55 Rpm
Place Of Origin:	Shandong, China	Brand Name:	Deerma
Voltage:	380V/3P/50HZ Or As Local Voltage	Dimension(lwh):	L20000W2100H2600mm
Power (kw):	80	Warranty:	1 Year
Key Selling Points:	High Productivity	Video Outgoing-inspection:	Provided
Core Components:	Bearing, Pump, Gear, Engine	Machinery Test Report:	Provided
Automatic Grade:	Automatic	Product Application:	Water Supply, Gas Suply
Model:	SJ65/33 PE Pipe Production Line	PE Pipe Diameter:	20-63mm
Tractor Speed:	0-12 M/min	Drive Motor:	Siemens
Temperature Controller:	Omron	Operator:	1-2 Persons Per Shift
Condition:	New	Showroom Location:	Egypt, Peru, India, Russia, Thailand, Kenya, South Korea, Algeria, Romania, South Africa
Applicable Industries:	Hotels, Building Material Shops, Home Use, Food Shop	Warranty Of Core Components:	1 Year
Weight:	5 KG
Highlight:	Automatic Water Pipe Making Machine , Water Pipe Making Machine 380V , 50HZ HDPE Pipe Production Line

Product Description

1-2 Person Operation PE Water Pipe Machine / HDPE Gas Pipe Production Line With Durable 38CrMoALA Screw Material

Automatic Water Pipe Making Machine 380V 50HZ HDPE Pipe Production Line 1-2 Person Operation 0

Automatic Water Pipe Making Machine 380V 50HZ HDPE Pipe Production Line 1-2 Person Operation 1

What is the feature of our PE Pipe Mahcine

High efficiency single screw extruder.
It can produce hdpe water/gas pipes.
The pipe diameter range:20-630mm or customes request.

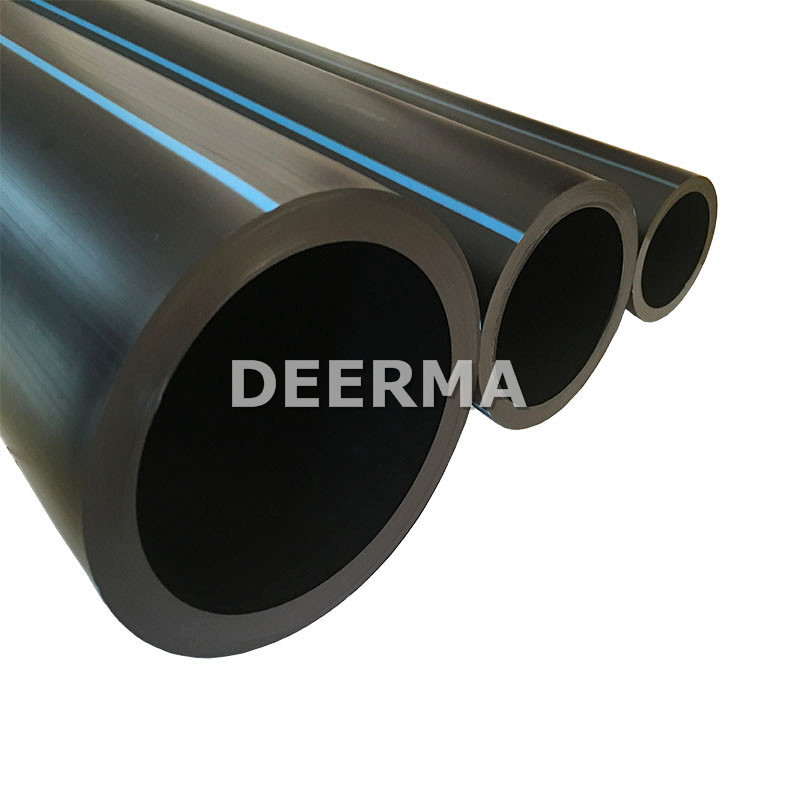

This hdpe hoes is mostly used as city water and gas supply system and so on.

Technical Parameters

Model	SJ65/33	SJ75/33	SJ90/33	SJ120/33	SJ150/33
Max Dia(mm)	75	160	250	315	630
Installtion power(kw)	65	150	200	280	420
Drawing speed(m/min)	0-12	0-8	0-6	0-4	0-2
Total Length(m)	28	36	50	66	72
Putput(kg/hr)	80-120	80-150	180-260	300-400	450-600

Main Composition (the list of one of PE Pipe Production Line)

Item	QTY
SJ65/33 Single screw extruder Equiped with Vacum feeding machine & Drying Machine	1set
SJ25/25 Single screw extruder for marking line	1set
Die and Mould	1set
Vacuum Calibration Device	1set
Spray Cooling Tank	1set
Tractor	1set
No Dust Cutting Device	1set
Stacker	1set

Machines's Pictures

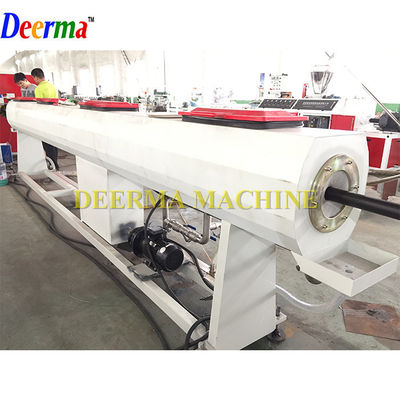

1.SJ65/33 HDPE PIPE MACHINE

Automatic Water Pipe Making Machine 380V 50HZ HDPE Pipe Production Line 1-2 Person Operation 2

Automatic Water Pipe Making Machine 380V 50HZ HDPE Pipe Production Line 1-2 Person Operation 3

2.SJ90/33 HDPE PIPE MACHINE

Automatic Water Pipe Making Machine 380V 50HZ HDPE Pipe Production Line 1-2 Person Operation 5

3.SJ75+ SJ90 Three-Layer HDPE PIPE CO-EXTRUSION MACHINE

Automatic Water Pipe Making Machine 380V 50HZ HDPE Pipe Production Line 1-2 Person Operation 7

Electric control system

Temperatue meter	Omron
Contactor	SIEMENS
Relay	SIEMENS
Transducer	SIEMENS
Power light, button	SIEMENS
Inveter	SIEMENS

Automatic Water Pipe Making Machine 380V 50HZ HDPE Pipe Production Line 1-2 Person Operation 8

Machine Video

20-110mm PE Pipe Machine with winder

https://youtu.be/KC3sOFnYZCo

30-100mm PE Pipe Machine with winder

https://youtu.be/ibK_ISSu0-A

Three-Layer PE Pipe Co-extrusion Machine

https://youtu.be/JG3RyNRR82c

50-160mm Three-Layer PE Pipe Co-extrusion Machine

https://youtu.be/vJJYU7EN4sk

Laser printer PE pipes

https://youtu.be/0N0yMxcsENo

160mm PP PE Pipe Machine

https://youtu.be/CUPXigPrQhY

16-32mm PE PPR Pipe Machine

https://youtu.be/4OuK3cJT2nQ

20-63mm HDPE Pipe Machine

https://youtu.be/b15_u9hgCAE

HDPE PP Pipe Machine

https://youtu.be/J8LgL2HBEx0

HDPE Pipe Machine

https://youtu.be/5fe6pSAP_Yk

Plastic (granules) automatic charger

https://youtu.be/7ejdefAO5A8
