Detail Information

Name:	PPR Pipe Extruder	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Core Components:	Engine, Bearing, Gear, Pump
Type:	Pipe Production Line	Pipe Material:	PE
Application:	Drain Pipe	Voltage:	220V/380V/ 415V/440V
Power(w):	Install Power 80kw	Dimension(LWH):	25 X 2.2 X 3.0m
Weight:	5 Kg	Warranty:	1 Year
Key Selling Points:	High Productivity	Machine:	PE Plastic Pipe Extrusion Machine
Model:	SJ65/30	Pipe Diameter:	20-63mm
Tractor Speed:	4-12m/min	Output Capacity:	80-120kg/h
Drive Motor:	SIEMENS	Inverter:	SIEMENS
Reduction Gearbox:	GUOMAO	Temperature Controller:	OMRON
Highlight:	20mm PPR Pipe Extruder , 63mm PPR Pipe Extruder , SJ65/30 Plastic Tube Extruders

Product Description

Drain Pipe Production Made Easy With 80kw Install Power PE Plastic Pipe Extrusion Machine

20mm - 63mm PPR Pipe Extruder SJ65/30 Plastic Tube Extruders With 80kw Install Power 0

Product Description

Working process & Technical Parameters (It can produce 20-160mm HDPE / PE / PPR / PP pipe )

SJ-65×33 Single Screw Extruder with Vacuum Feeding Unit & Drying Machine (Two Set)
Die and Moud
Vacuum Calibration Device
Spray Cooling Tanks
Tractor
No Dust Cutting Device
Stacker
Crusher

Item	SJ65/30	SJ75/30	SJ90/30
Max Dia. Of pipe(mm)	16-63MM	20-110MM	50-160MM
Main machine	SJ65/30+SJ25/25	SJ75/30+SJ25/25	SJ90/30+SJ25/25
Motor power(kw)	37KW	37KW	55KW
Max. capacity(kg/h)	50-120KG/G	70-140KG/H	80-160KG/H
Traction speed(m/min)	0-12M/MIN	0-8M/MIN	0-8M/MIN
length(mm)	25000	34000	44000

Machine Description

1. SJ-65×33 Single Screw Extruder with Vacuum Feeding Unit & Drying Machine (Two Set)

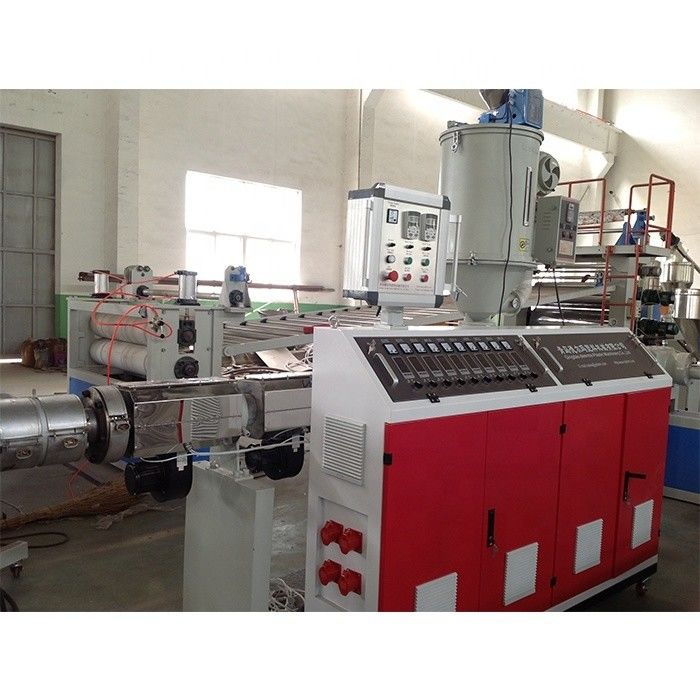

20mm - 63mm PPR Pipe Extruder SJ65/30 Plastic Tube Extruders With 80kw Install Power 1

2. Die and Mould

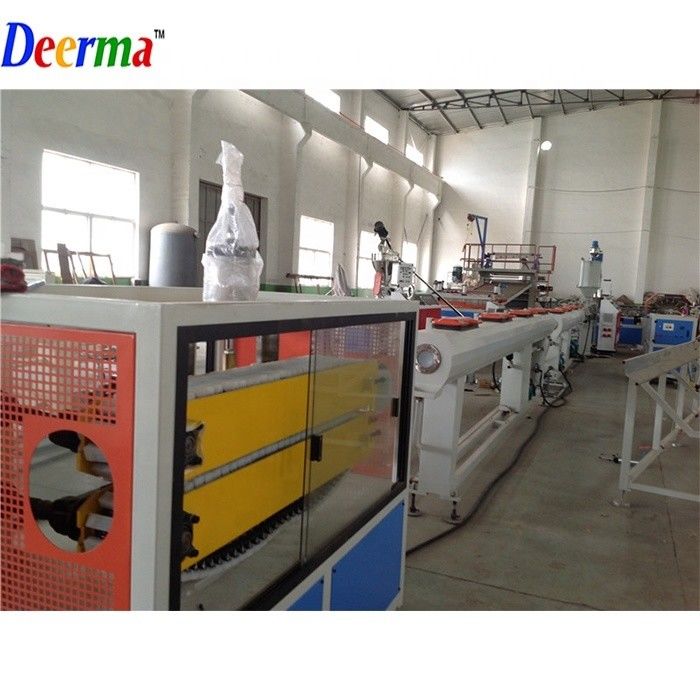

20mm - 63mm PPR Pipe Extruder SJ65/30 Plastic Tube Extruders With 80kw Install Power 2

3.Vacuum Calibration Device

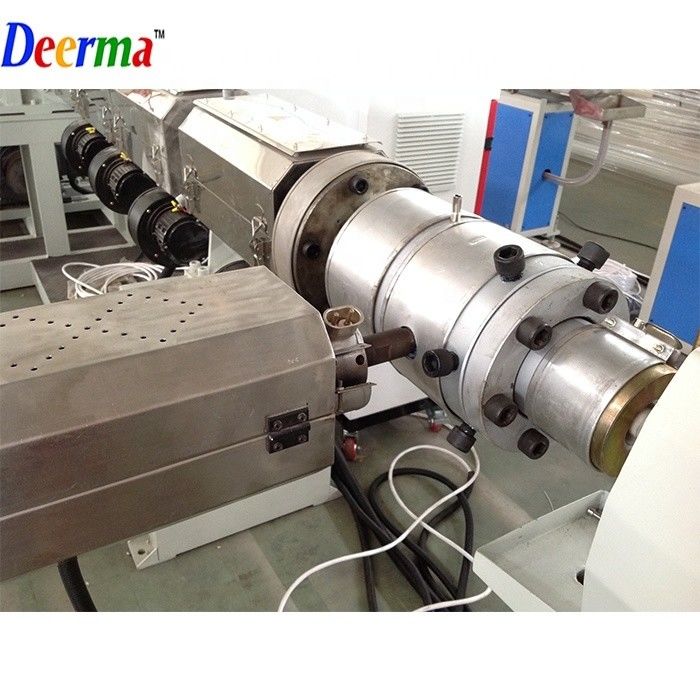

20mm - 63mm PPR Pipe Extruder SJ65/30 Plastic Tube Extruders With 80kw Install Power 3

4.Tractor

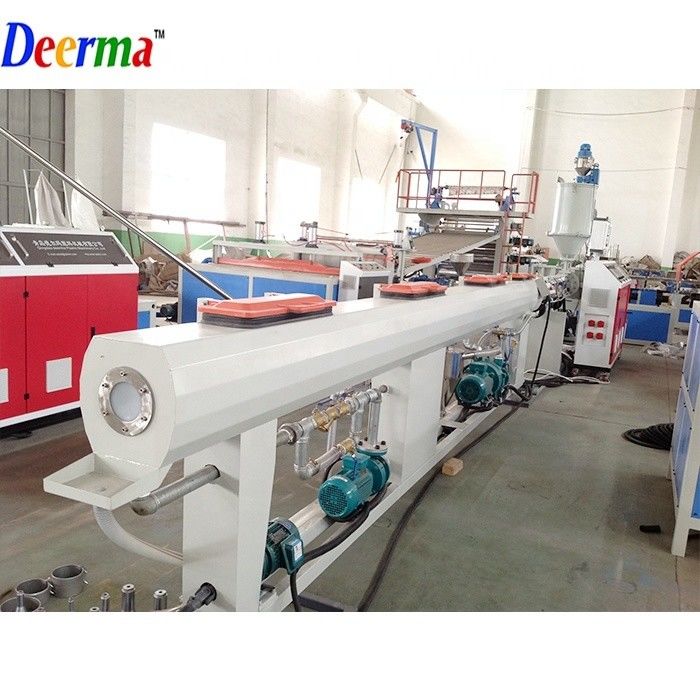

20mm - 63mm PPR Pipe Extruder SJ65/30 Plastic Tube Extruders With 80kw Install Power 4

7.No Dust Cutting Device

20mm - 63mm PPR Pipe Extruder SJ65/30 Plastic Tube Extruders With 80kw Install Power 5

Packaging & Shipping

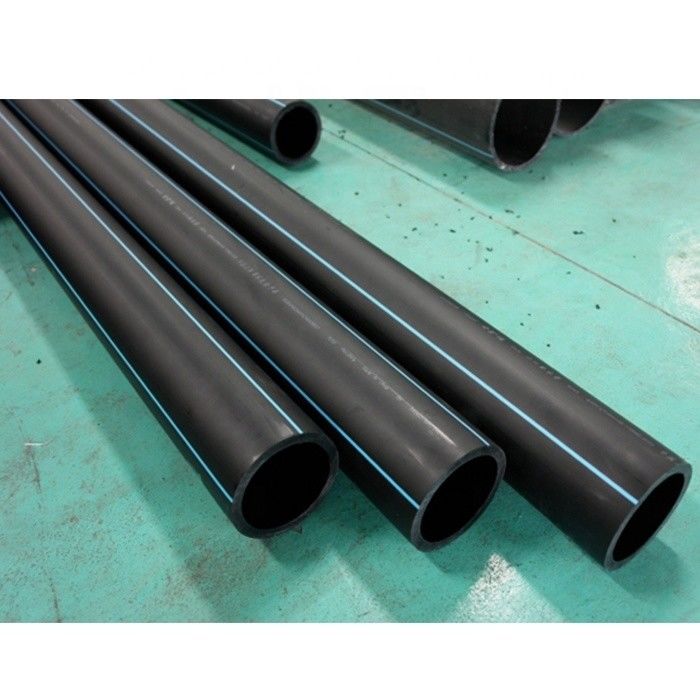

20mm - 63mm PPR Pipe Extruder SJ65/30 Plastic Tube Extruders With 80kw Install Power 6

Certifications

CERTIFICATE OF CONFORMITY AND ISO9001 QUALITY MANAGEMENT SYSTEM CERTFICATION

FAQ

Q: Your company is an industrial manufacture factory or a transactional company ?

A: Deerma Company is an industry manufacture of Extrusion Machines.

Q:All of your products are made by your self or compacted via purchasing the others?

A: we have independent technical team who focus on design & development & Manufacture extrusion machines. all the products are made by our technical team.

Q:Annual Production Capacity( Previous Year)

A: About 80 lines from 2014.1 to 2014.12 and total revenue is about USD 2500000

Q: Is there quality control on all production lines?

Yes, all production lines have adequate quality control

Q:Do the QA/QC inspectors work independently from the production line? Yes

Q:How many QA/QC inspectors in total? 4

Tag:

Place of Origin:	Shandong, China
Brand Name:	Deerma

Price:	CN¥180,375.00/sets >=1 sets
