Detail Information

Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Core Components:	Engine, Bearing, Gear, Pump	Type:	Pipe Production Line
Pipe Material:	PE	Application:	Drain Pipe
Voltage:	220V/380V/ 415V/440V	Power(w):	Install Power 80kw
Dimension(LWH):	30 X 2.2 X 3.0m	Weight:	8 Kg
Warranty:	1 Year	Key Selling Points:	High Productivity
Machine:	HDPE PE PP Pipe Extrusion Production Line /making Machine	Model:	SJ90/30
Pipe Diameter:	160-250mm	Tractor Speed:	4-12m/min
Output Capacity:	250-350kg/h	Drive Motor:	SIEMENS
Inverter:	SIEMENS	Reduction Gearbox:	GUOMAO
Temperature Controller:	OMRON
Highlight:	high productivity hdpe pipe machine , high productivity hdpe pipe making machine , 220v hdpe pipe machine

Product Description

HDPE PE PP pipe extrusion production line /making machine

High Productivity HDPE PE PP Pipe Extrusion Production Line /making Machine equipped with GUOMAO Reduction gearbox 0

Product Description

Working process & Technical Parameters

SJ-90×33 Single Screw Extruder with Vacuum Feeding Unit & Drying Machine (Two Set)
Die and Moud
Vacuum Calibration Device
Spray Cooling Tanks
Tractor
No Dust Cutting Device
Stacker
Crusher

Item	SJ65/30	SJ75/30	SJ90/30
Max Dia. Of pipe(mm)	16-63MM	20-110MM	75-160MM or 110-250mm
Main machine	SJ65/30+SJ25/25	SJ75/30+SJ25/25	SJ90/30+SJ25/25
Motor power(kw)	37KW	37KW	55KW or 90KW
Max. capacity(kg/h)	50-120KG/G	70-140KG/H	80-160KG/H or 250-350kg/h
Traction speed(m/min)	0-12M/MIN	0-8M/MIN	0-8M/MIN
length(mm)	25000	34000	44000

Machine Description

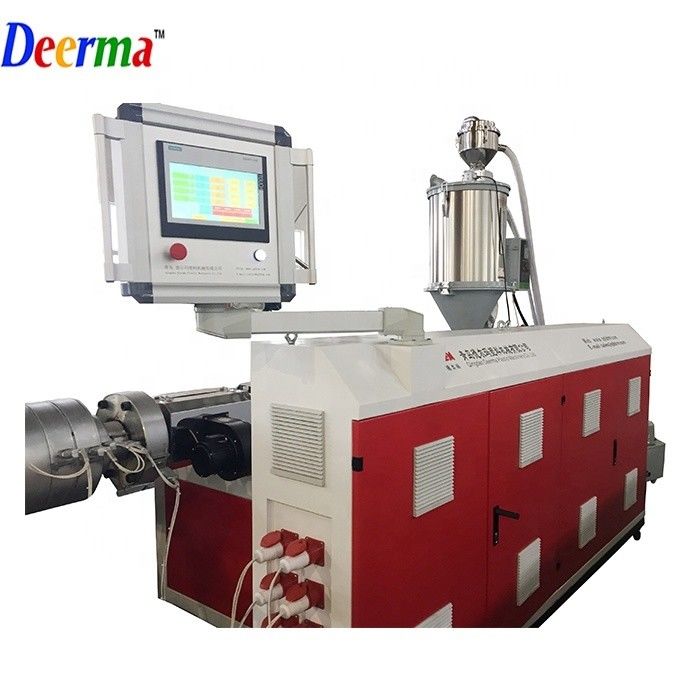

1. SJ-90×33 Single Screw Extruder with Vacuum Feeding Unit & Drying Machine (Two Set)

High Productivity HDPE PE PP Pipe Extrusion Production Line /making Machine equipped with GUOMAO Reduction gearbox 1

2. Die and Mould

High Productivity HDPE PE PP Pipe Extrusion Production Line /making Machine equipped with GUOMAO Reduction gearbox 2

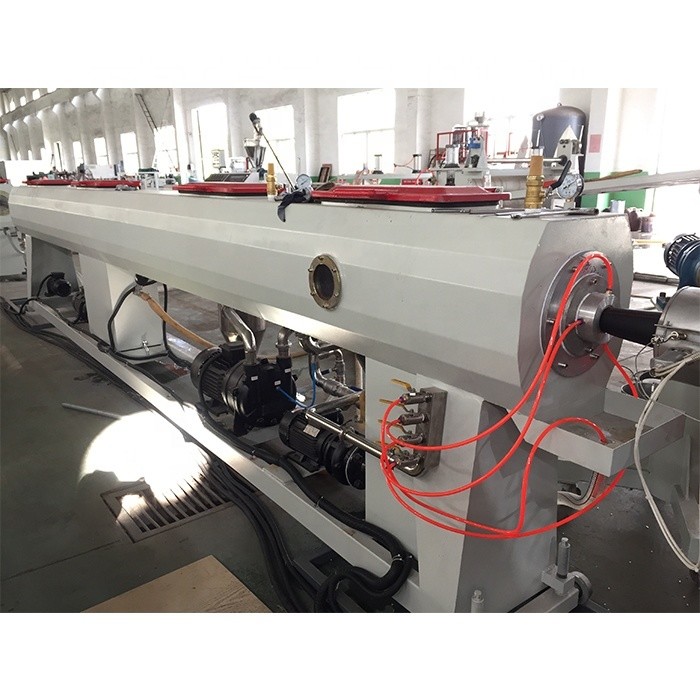

3.Vacuum Calibration Device

High Productivity HDPE PE PP Pipe Extrusion Production Line /making Machine equipped with GUOMAO Reduction gearbox 3

High Productivity HDPE PE PP Pipe Extrusion Production Line /making Machine equipped with GUOMAO Reduction gearbox 4

4.Tractor

High Productivity HDPE PE PP Pipe Extrusion Production Line /making Machine equipped with GUOMAO Reduction gearbox 5

7.No Dust Cutting Device

High Productivity HDPE PE PP Pipe Extrusion Production Line /making Machine equipped with GUOMAO Reduction gearbox 6

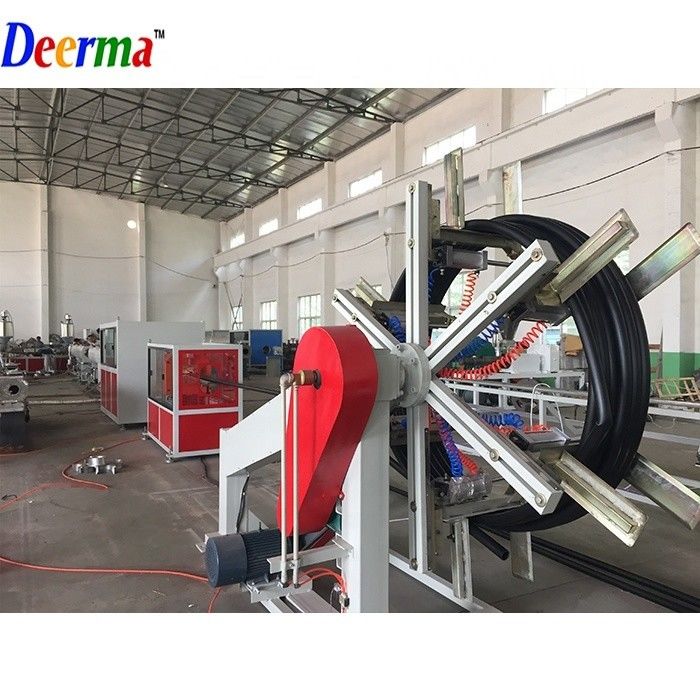

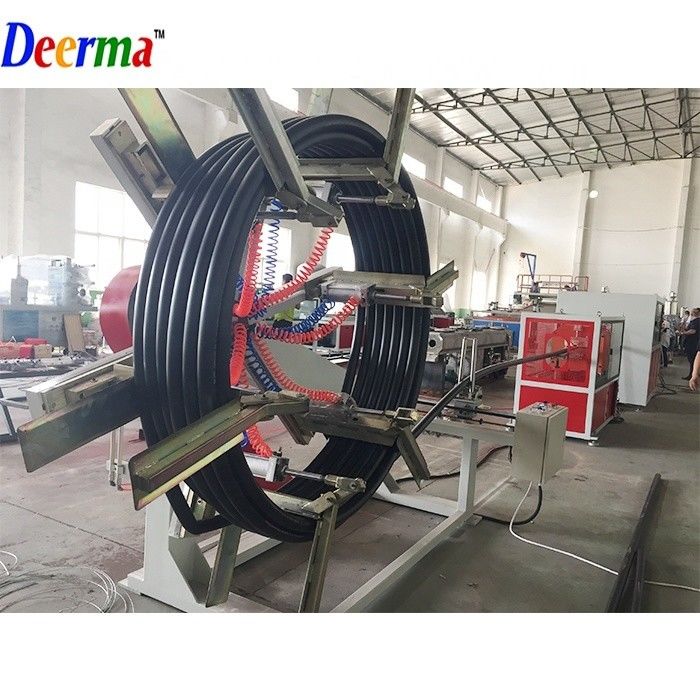

8. Winder Machine

Packaging & Shipping

High Productivity HDPE PE PP Pipe Extrusion Production Line /making Machine equipped with GUOMAO Reduction gearbox 8

Certifications

CERTIFICATE OF CONFORMITY AND ISO9001 QUALITY MANAGEMENT SYSTEM CERTFICATION

FAQ

Q: Your company is an industrial manufacture factory or a transactional company ?

A: Deerma Company is an industry manufacture of Extrusion Machines.

Q:All of your products are made by your self or compacted via purchasing the others?

A: we have independent technical team who focus on design & development & Manufacture extrusion machines. all the products are made by our technical team.

Q:Annual Production Capacity( Previous Year)

A: About 80 lines from 2014.1 to 2014.12 and total revenue is about USD 2500000

Q: Is there quality control on all production lines?

Yes, all production lines have adequate quality control

Q:Do the QA/QC inspectors work independently from the production line? Yes

Q:How many QA/QC inspectors in total? 4
