Detail Information

Name:	WPC Decking Making Machine	Plastic Processed:	PE, PP, PVC, WPC, EPS
Application:	Profile, Plates	Screw Design:	Double-screw
Twin Screw Type:	Counter-rotating Conical Twin-screw	Screw Material:	38CrMoALA
Screw Diameter (mm):	65 Mm	Screw L/d Ratio:	22:1
Screw Speed (rpm):	66	Place Of Origin:	Shandong, China
Brand Name:	Deerma	Voltage:	380V/3P/50HZ Or As Local Voltage
Dimension(lwh):	L22000W1600H2600mm	Power (kw):	45
Warranty:	1 Year	Key Selling Points:	High Productivity
Video Outgoing-inspection:	Provided	Core Components:	Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox
Machinery Test Report:	Provided	Weight (KG):	3200
Extruder Type:	Twin Screw	Extrusion Machine For Making Pvc Profile:	Wpc Decking Production Machine / WPC Profile Extrusion Machine Line
Output Capacity:	180-250 Kg/ Hr	WPC Profiles:	Decking, Wall Panel, Ceiling , Windows ,doors,rolling Shutters......
Production Line Speed:	1-5m/min	Machine Control:	PLC
Operator:	1-2 Persons Per Shift	Guarantee:	12 Month
Output (kg/h):	180 - 250 Kg/h	Automatic Grade:	Automatic
Power:	90kw/ 70kw
Highlight:	45kw WPC Decking Making Machine , WPC Decking Making Machine 180kg/hr , 250kg/hr WPC Profile Extrusion Line

Product Description

WPC Decking Production With 45kw Power WPC Profile Extrusion Machine Line In Market

Product Description

Profiles for the building industry

--windows
--door frame and board
--rolling shutters
--gutters
--fencing
--ceiling
--deck
--floor
Profiles for furnishing
--furniture edge bands
--coatings

1) PP,PE WPC profiles extrusion craft

100% recycled PP,PE,etc+wood power ( from wood dust, rice husk, wheat straw,etc)+ additives → mixing → granulating → conical twin-screw extruder → profile extrusion die → profile moulds→ vacuum calibration platform →(haul-off) → cutter →stacker → finished product → surface finish processing, like embossing, sandng, brushing,etc

2) PVC WPC profiles extrusion craft

pvc powder+wood powder+additives → mixing → extrusion line ( conical twin-screw extruder → profile extrusion die → profile moulds→ vacuum calibration platform →haul-off → cutter →stacker → finished product) → surface finish processing ( like heat transfer,sanding, embossing,etc)

Technical parameter for wpc decking machine

Model	YF180	YF300	YF600	YF800	YF1000
Max.width of product(mm)	180	300	600	800	1000
Extruder mode	SJZ51/105	SJZ65/132	SJZ80/156	SJZ80/156	SJZ92/188
Extrusion capacity(kg/h)	150	180	360	360	600
Motor power(kw)	18.5	37	55	55	110
Total length(m)	18	22	26	28	32

Main Composition

Item	Quantity
1.SJSZ- XX Twin Screw Extruder with Automatic Feeding System	One set
2.Die Mold & Stock Mold	One set
3.Vacuum Calibrarion Table	One set
4.Haul-off and Cutter Unit	One set
5.Stacker	One set
6.Electric Control System	One set

Pictures

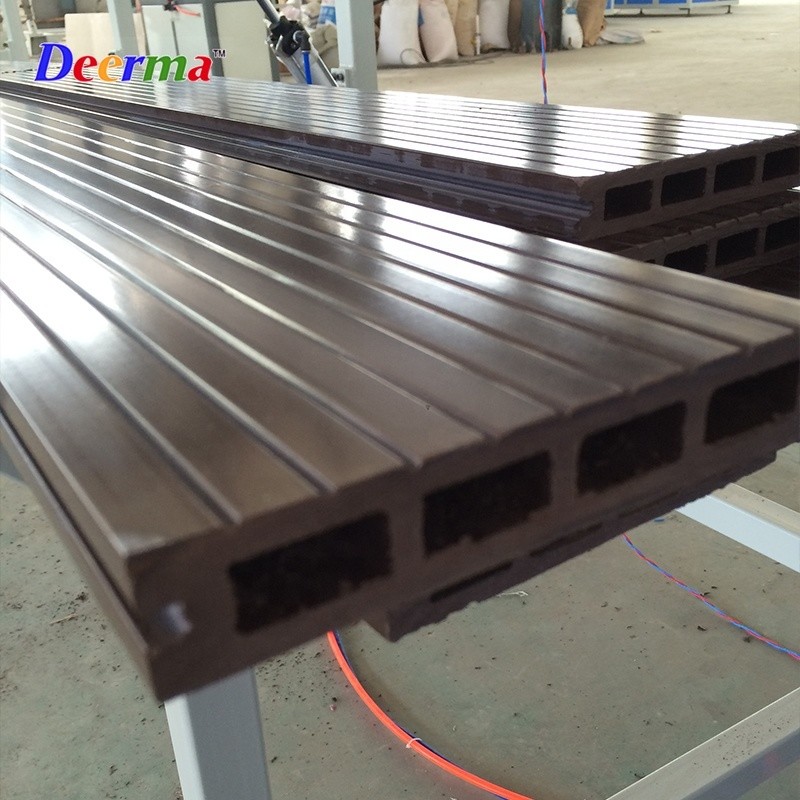

45kw WPC Decking Making Machine 180kg/hr - 250kg/hr WPC Profile Extrusion Line 2

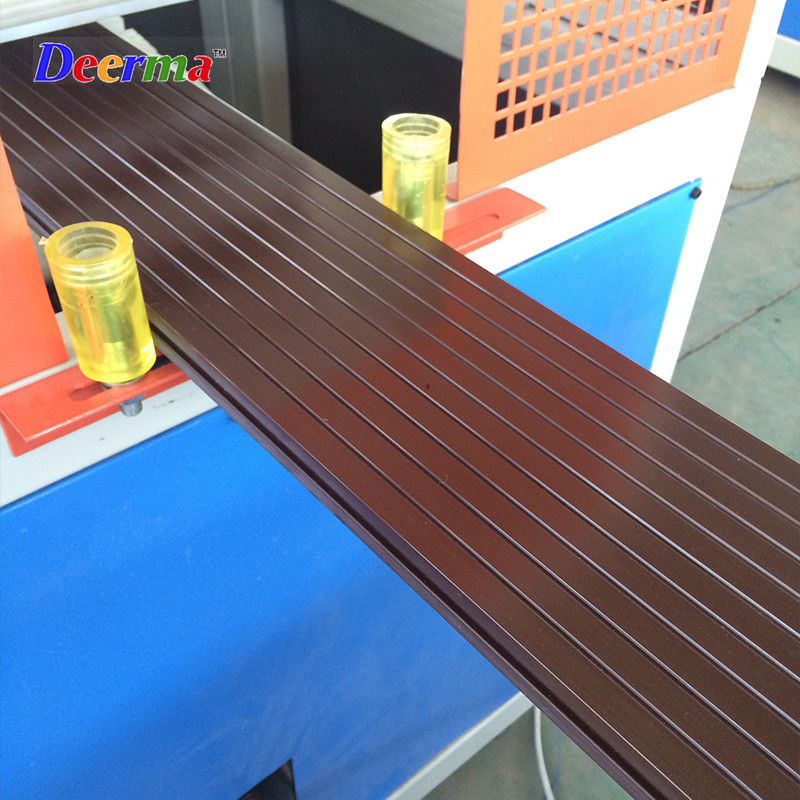

45kw WPC Decking Making Machine 180kg/hr - 250kg/hr WPC Profile Extrusion Line 3

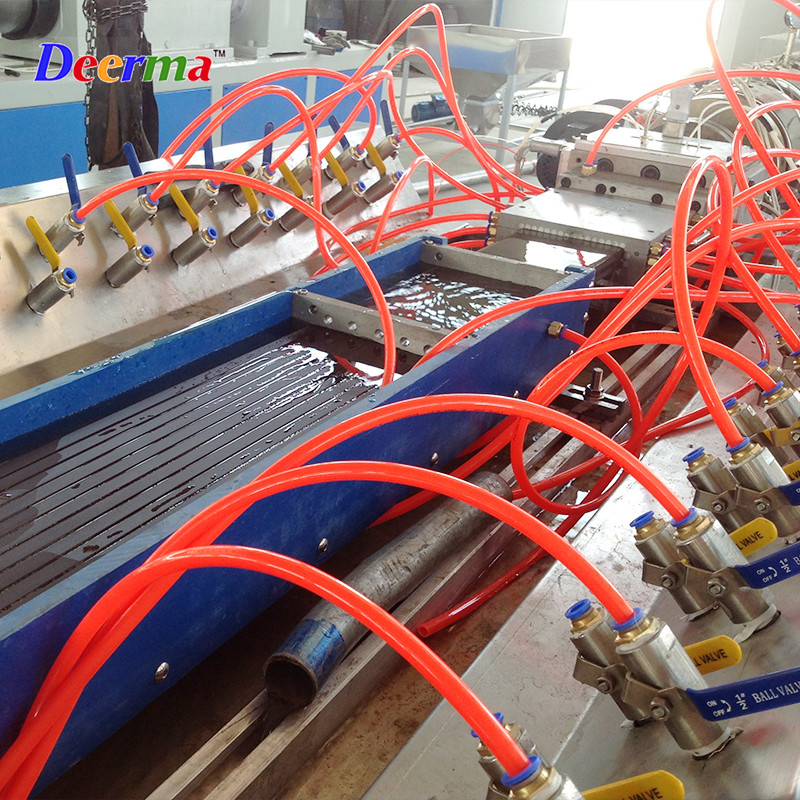

45kw WPC Decking Making Machine 180kg/hr - 250kg/hr WPC Profile Extrusion Line 4

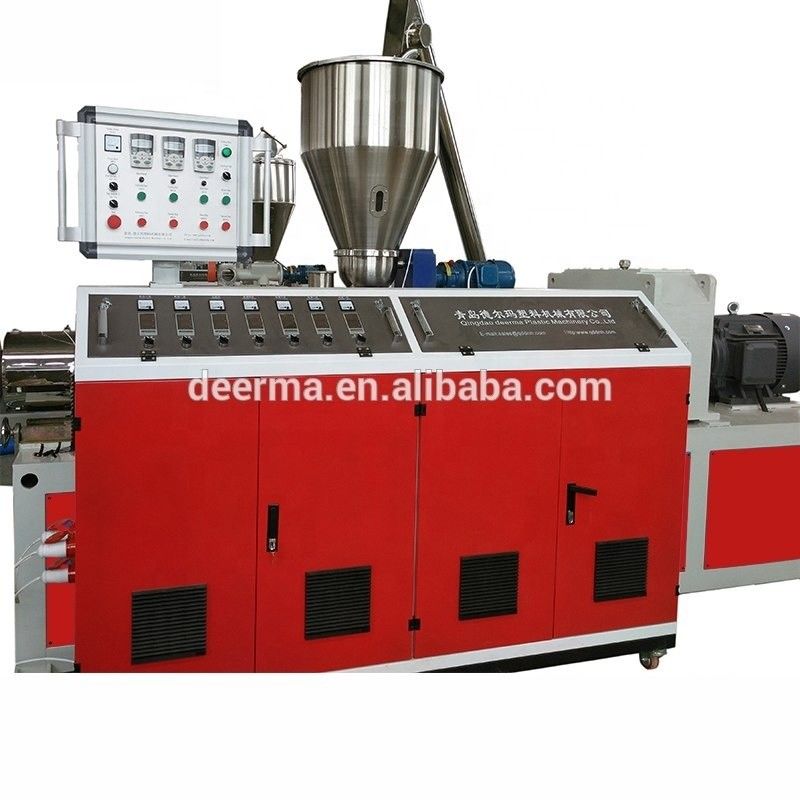

45kw WPC Decking Making Machine 180kg/hr - 250kg/hr WPC Profile Extrusion Line 5

Packaging & Shipping

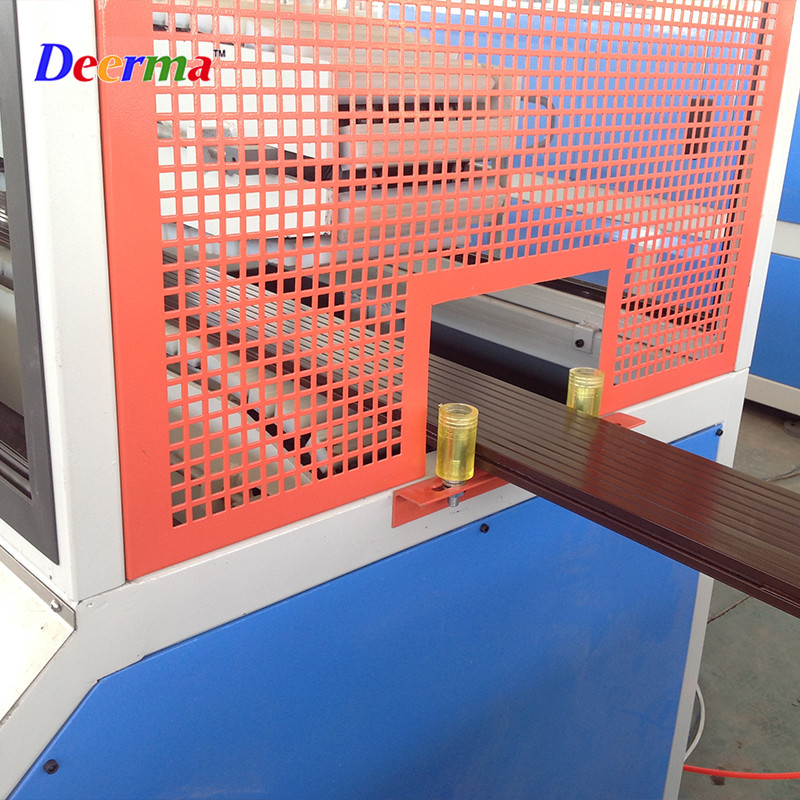

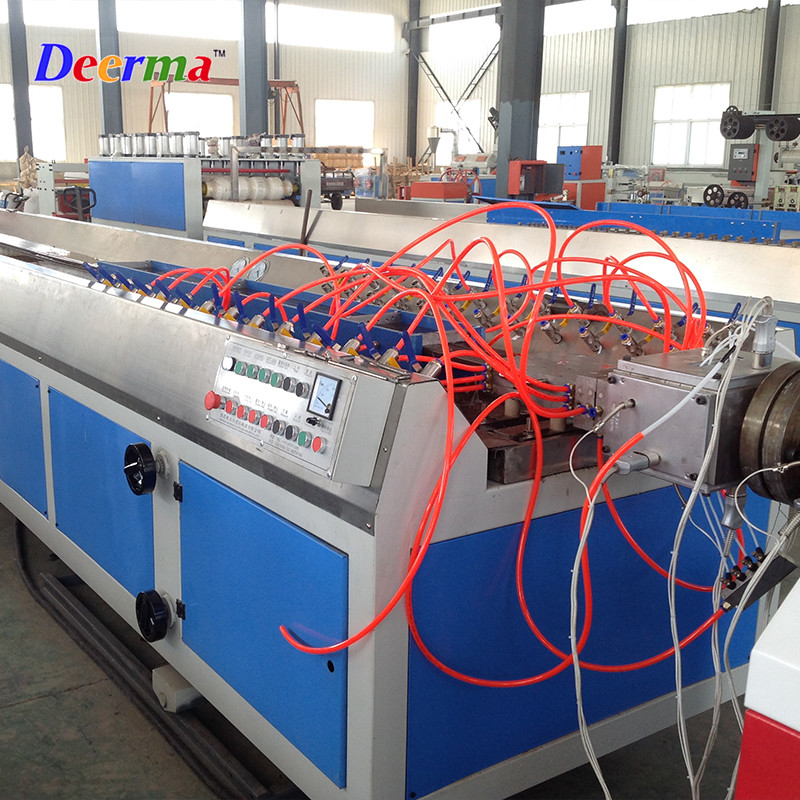

45kw WPC Decking Making Machine 180kg/hr - 250kg/hr WPC Profile Extrusion Line 7

Certifications

Certification	Certified By	Certificate No.	Business Scope Expiry Dat	Expiry Date
ISO 9001:2008	Beijing Hangxie Certification Center Co., Ltd., CNAS	03413Q21640R1M	Design and Production of Single-Screw Plastic Extruders and Conical Twin-Screw Plastic Extruders	17/Sep./2013 16/Sep./2016
CE	European Inspection and Certification Company S.A.	CN.CE.0680-10/10	Plastic Extrusion Machinery & SJ-30, SJ-45, SJ-65, SJ-90, SJ-120, SJ-150, SJ-180, SJ-200, SJSZ-51/105, SJSZ-65/132, SJZS-80/156, SJSZ-92/188	29/Oct./2010 28/Oct./2015
TUV	TÜV Rheinland	7467484_P+T	Production & Trade Assessment	15/Jan./2014 14/Jan./2015
Main Product Lines Verification Report	TÜV Rheinland	7467487_P+T	Main Product Lines Verification	15/Jan./2014 14/Jan./2015
SGS	SGS-CSTC Standards Technical Services Co.,Ltd Focus Technology Co., Ltd	QIP-ASR155278	Extrusion Machine, Pipe Machine ,profile Machine, Roof Machine…	15/Ma
