Twin Screw Type PVC PE PP WPC Profile Machine Extrusion Line For Siemens Motor Counter-Rotating Conical Twin-Screw Drive
- It is designed for producing various sizes of plastic composite products,such as WPC profiles,WPC board,WPC decorate panel.Our WPC machine has features of low consumption,low noise,stable running..
- This WPC machine include:extruder,mould,vacuum calibration table,haul-off machine,cutter and stacker.
- The extruder of WPC machine adopt special wpc screw and barrel for extrusion.With different mould,WPC machine can produce wpc products with different shapes.
Flow Process:
1.PE/PP WPC profile production flow
Wood milling(wood powder,rice husk)—— Mixer(plastic+wood powder)——Pelletizing machine——PE/PP-WPC extrusion line
2.PVC-WPC profile production flow
Wood milling(wood powder,rice husk)——Mixer(plastic+wood)——PVC-WPC extrusion line
Technical Parameter:
| Model |
YF180 |
YF300 |
YF600 |
YF800 |
YF1000 |
| Max.width of product(mm) |
180 |
300 |
600 |
800 |
1000 |
| Extruder mode |
SJZ51/105 |
SJZ65/132 |
SJZ80/156 |
SJZ80/156 |
SJZ92/188 |
| Extrusion capacity(kg/h) |
150 |
180 |
360 |
360 |
600 |
| Motor power(kw) |
18.5 |
37 |
55 |
55 |
110 |
| Total length(m) |
18 |
22 |
26 |
28 |
32 |
Machine list :
| Item |
Quantity |
| 1.SJSZ series conical twin screw extruder with auto feeder |
one set |
| 2.Die mould (designed as per custoemr sample or sample drawings) |
one set |
| 3.Vacuum calibration table |
one set |
| 4.Haul-off unit |
one set |
| 5.Cutting unit |
one set |
| 6.Stacker |
one set |
|
7.Electric control system
|
one set |
| 8.Spare parts list |
one set |
Machines' picture

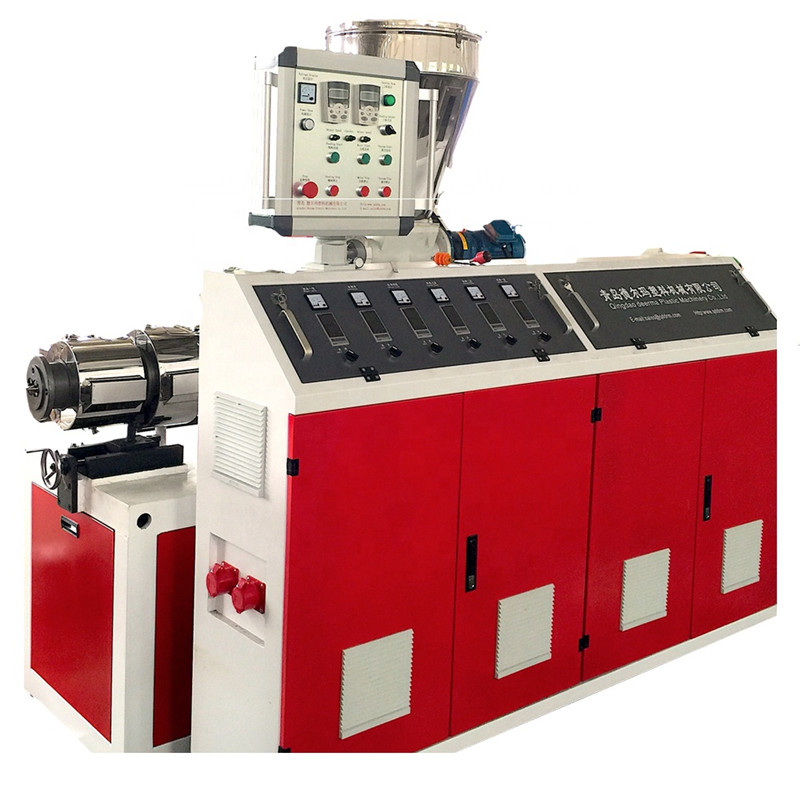

1.SJZ series conical twin screw extruder:
The specially designed screw and the advanced controlling system ensure excellent plasticization, high output and stable extruding.
2.Die mould:
Mould adopts high-quality alloy steel and throttling device to ensure even pressure of feed influent at the mould lips, and also differential action of up-down piece guarantee even thickness of the plate.

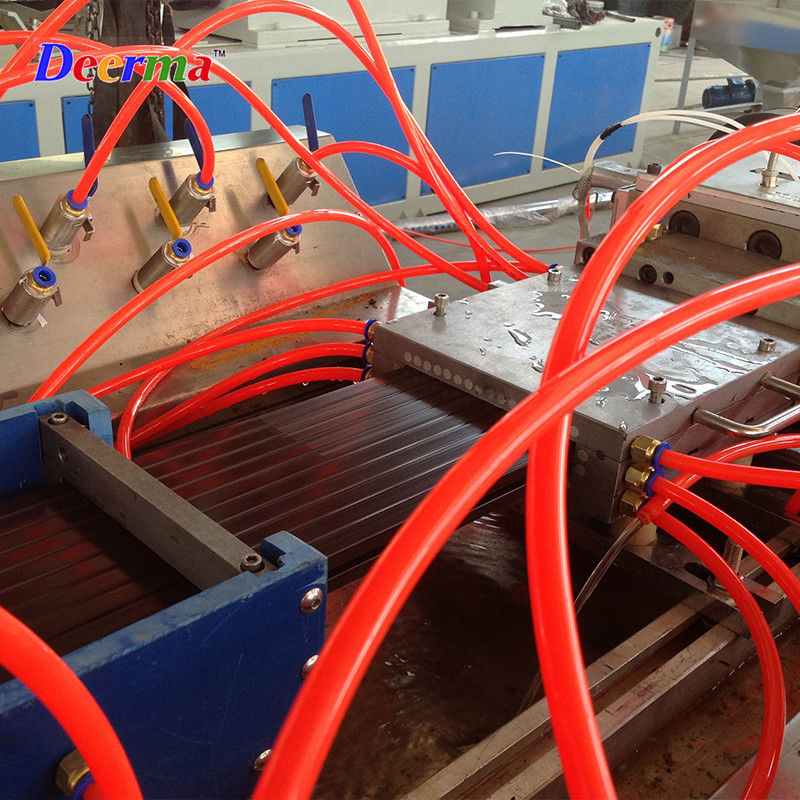

3.Vacuum calibration table:
Heating exchanging and cooling system of quick speed in calibrating system alternate effectively and ordinally with vacuum system, which ensures calibrating precision. Vacuum system composes two independent subsystems and each is equipped with several fixed circulating vacuum lines of three-point type. Meanwhile, each line carries vacuum regulating system and vacuum display system that realize even and stable vacuum degree of plate surface.
4.Haul-off unit & Cutter unit :
There are two tractors. The first one is of high powr, high reduction ratio, multi-roller type, well low-speed operation, high traction and is able to draw the plate up from the calibrating table evenly and synchronal. The second one is designed to remove stress, and in addition it is equipped with edge-cutting device to ensure the valid width and smooth cut of the edges.
6.Stacker:

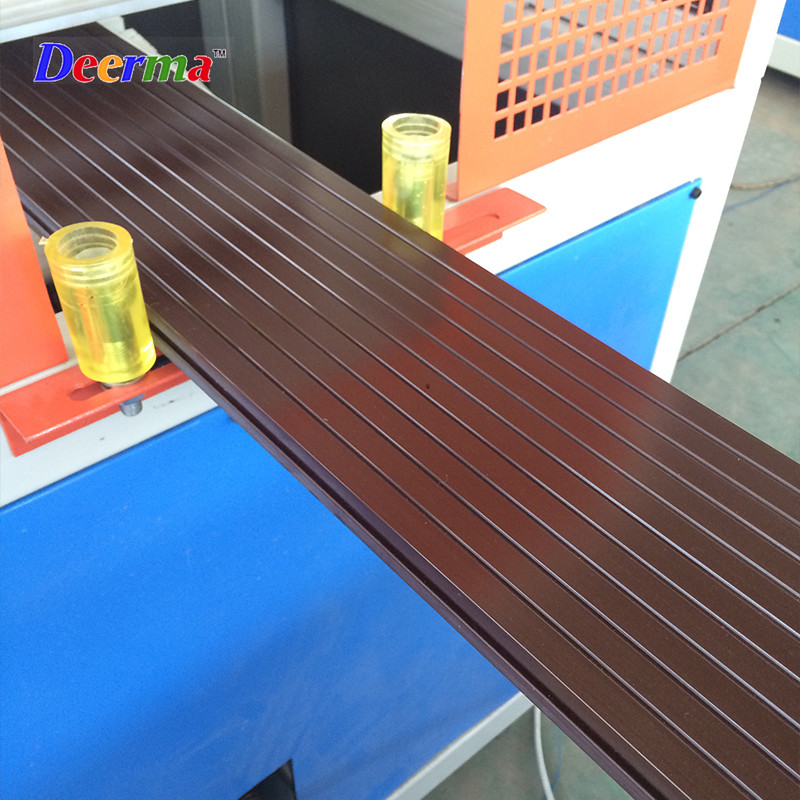

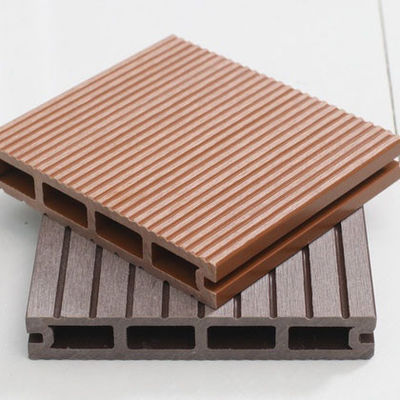

WPC Products - Produced by machine
Welcome u visit us to check our WPC Profiles machine quality any time, we have different wpc machine orders in our workshop!
Service & Warranty
Execellent Service-Turnkey Project
DEERMA is committed to providing full support for its local and international clients and dealers and will always provide a prompt response to customer enquiries.
A. Free training for maintenance personnel;
B. Installation service& commissioning by porfessional;
C.The establishment of user fles, a long-term follow-up service and regular return visits;
D. A 24-hour hot-line service ensures the timeliest solution to your faulty equipment.
E.Calling or Door to Door service
F.One year guarantee for whole machine
